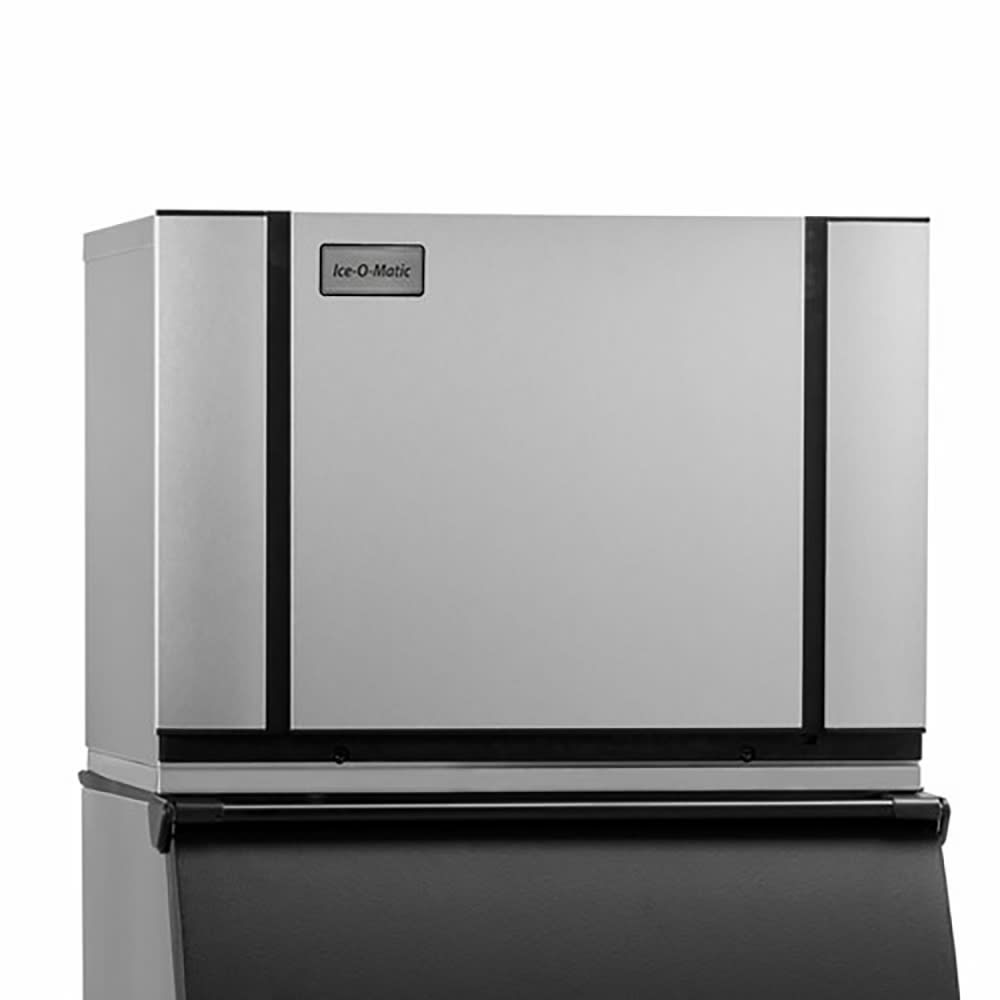

Ice-O-Matic CIM0636FR 30 1/4" Elevation Series™ Full Cube Ice Machine Head - 615 lb/24 hr, Remote Cooled, 208-230v/1ph

Producing as much as 615 pounds of ice daily, the Ice-O-Matic CIM0636FR ice machine head works with a remote condenser to exhaust hot air and noise in a location away from the dining area. This machine produces full-cube ice, a large size of ice that performs well in chilled beverages without watering them down. Using an air-cooled system, this unit chills ice less efficiently than a water-cooled system but wastes less water and doesn't require any additional input or drainage lines.

The Ice-O-Matic CIM0636FR ice machine head features an LED status display to monitor the unit's status, and it can perform self-diagnostics using the universal smart control board. When it's time to clean the unit, an LED light alerts users; to shorten cleaning time, interior pieces can be snapped out and washed in a commercial dishmachine. This unit requires an ice bin or dispenser for safe operation.

Product Details

• Part of the Elevation Series™
• 615-lb. maximum daily ice production
• 535-lb. AHRI-certified ice production
• Full-size ice cubes
• Cube dimensions: ⁷⁄₈ in. x ⁷⁄₈ in. x ⁷⁄₈ in.
• Air cooled
• Remote condenser outputs heat and noise away from service area
• Dual exhaust for effective heat dispersion
• Plastic foodzone interior has no crevices to harbor microorganisms

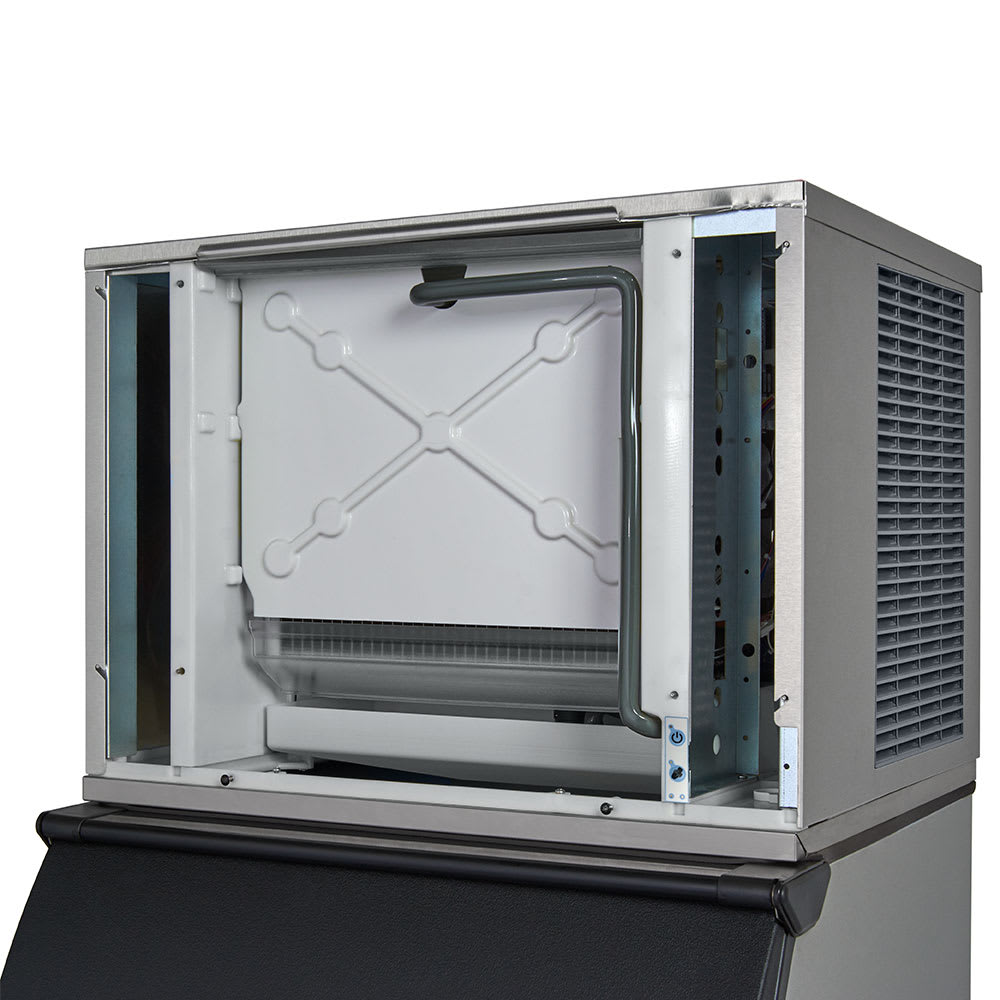

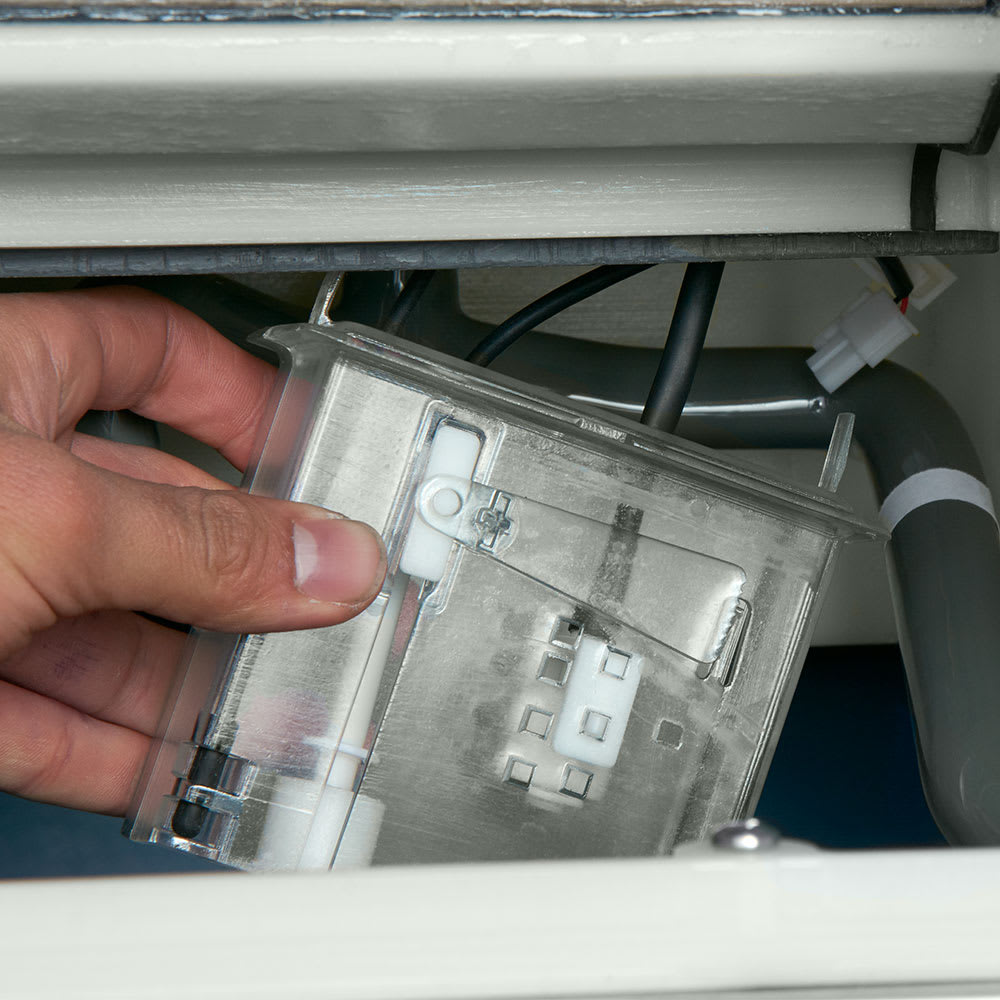

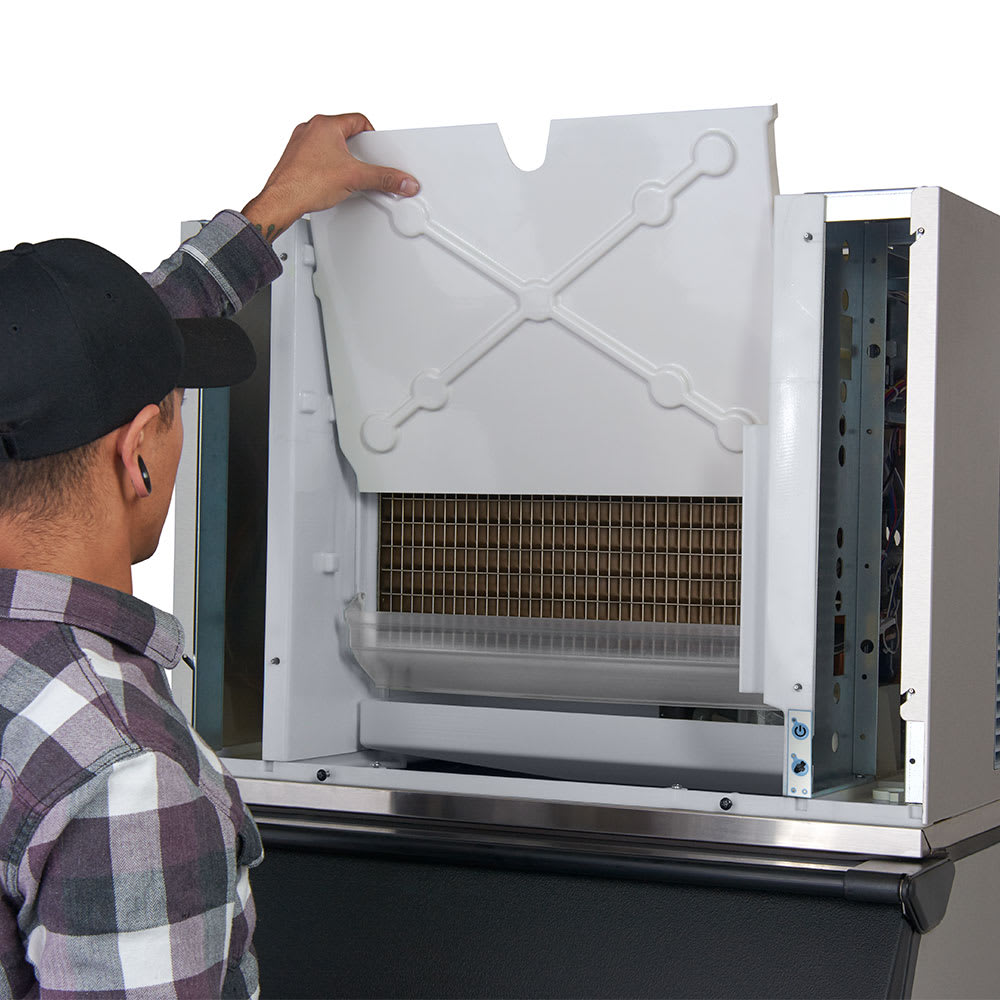

• BPA-free parts are removable and warewasher safe for quick cleaning
• Microbial growth prevented with PURE ICE® antimicrobial treatment

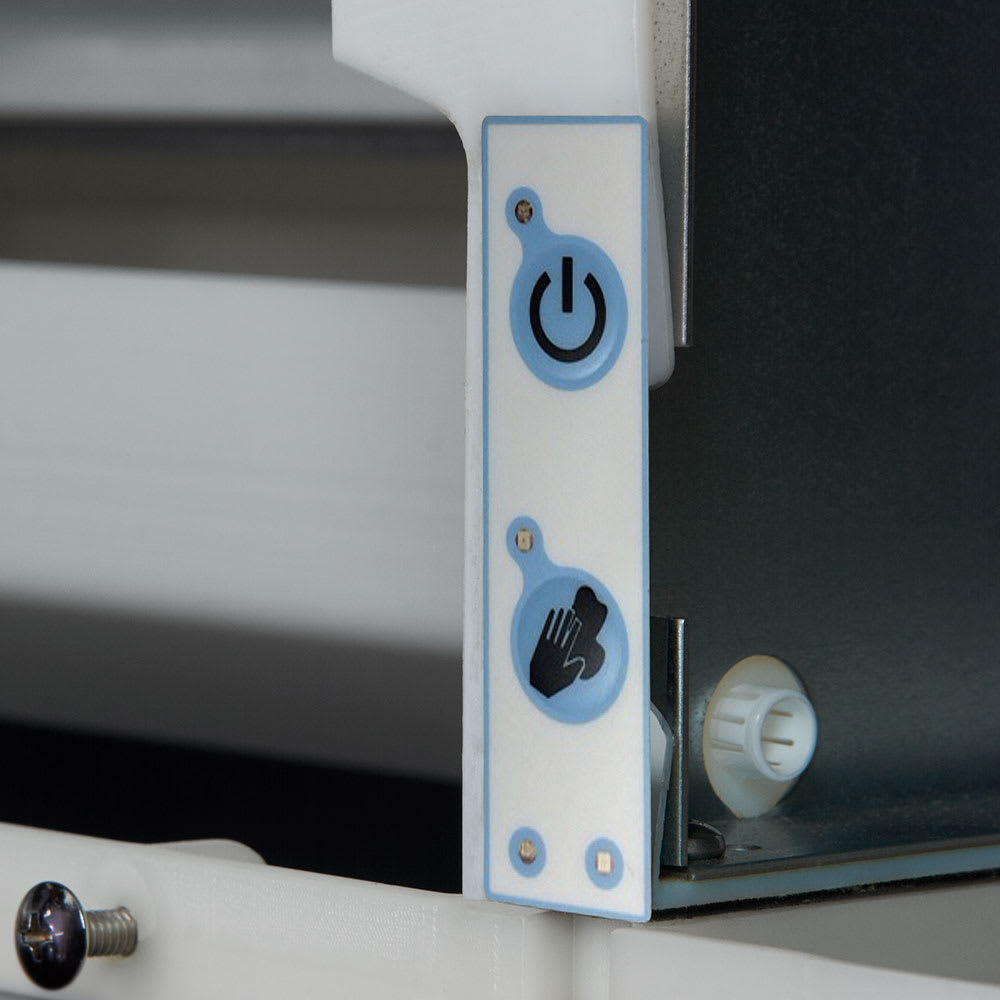

• 1-touch activated sanitizing and descaling for reduced employee labor
• Smart LED light communicates routine maintenance needs
• LED display streamlines machine monitoring
• Smart Harness™ control board enables uniform calibration
• Reduced environmental impact with recyclable components
• Remote condenser RCA-1061 is required to operate this unit

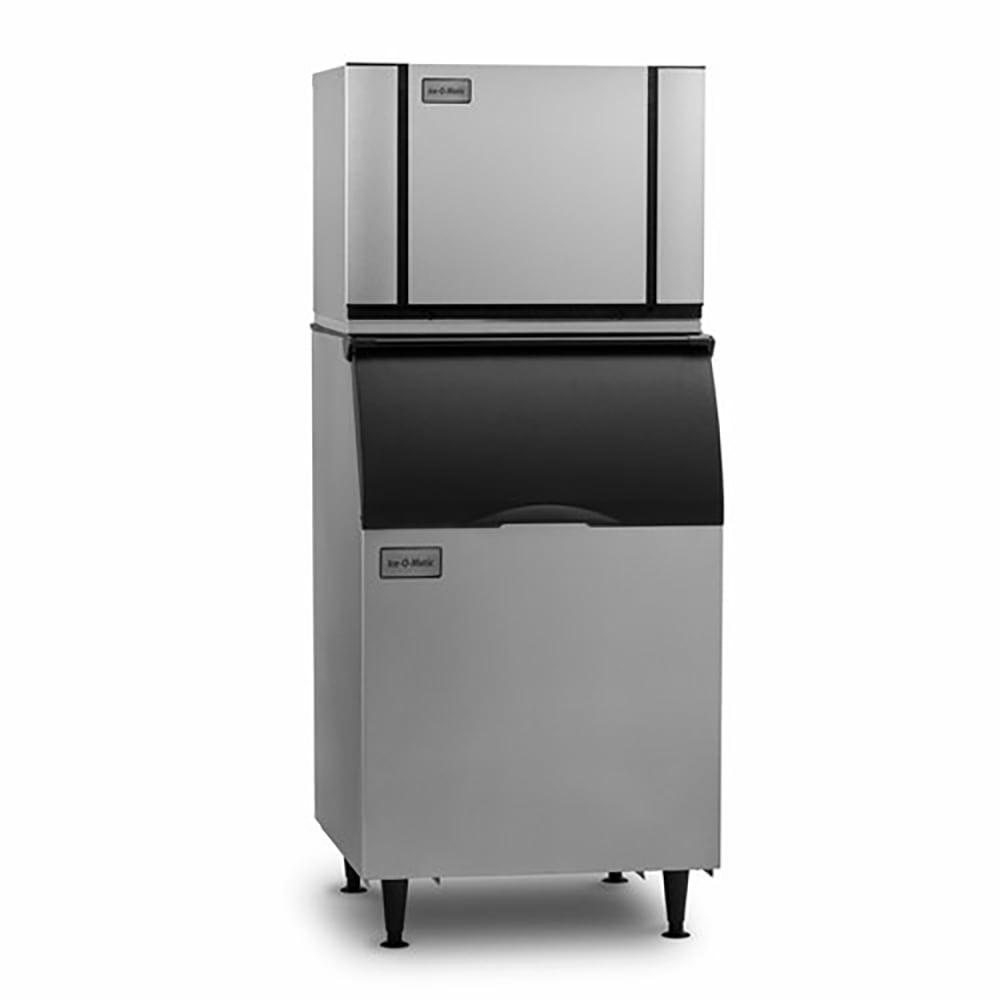

• Ice bins and dispensers are sold separately
• Ideal ambient temperature: 50-100 degrees F
• Ideal incoming water temperature: 40-100 degrees F
• Ideal water pressure: 20-80 PSIG
• 8,600-BTU heat transfer capacity

Product Features

Dimensions & Utilities

• 30¹/₄ in. W x 24¹/₄ in. D x 21¹/₄ in. H
• 10 A, 5.29 kW
• 208-230 V/60 Hz/1 ph
• Ice maker potable water inlet: ³⁄₈-in. FPT
• Ice maker water outlet: ³⁄₄-in. FPT
• Electrical connection port: ⁷⁄₈-in. dia.
• Electrical connection junction box: ⁷⁄₈-in. dia.

*Free shipping on Ice-O-Matic CIM0636FR within the 48 contiguous states.

From The Manufacturer

Elevation Series™ Modular Cube Ice Maker, air-cooled, remote condenser, 30 1/4"W, approximately 615 lb production/24 hours at 70°/50° (535 lb at 90°/70°), full-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, BPA Free, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator & Compressor Parts
