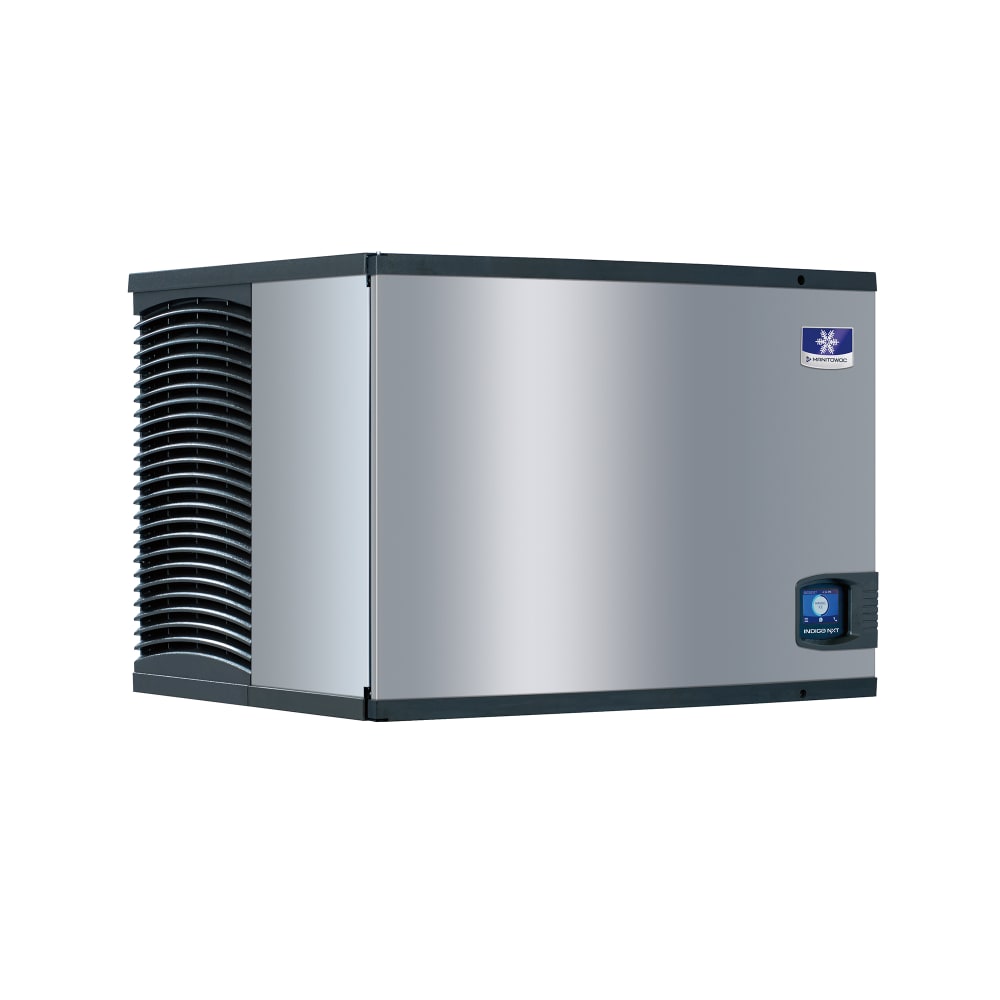

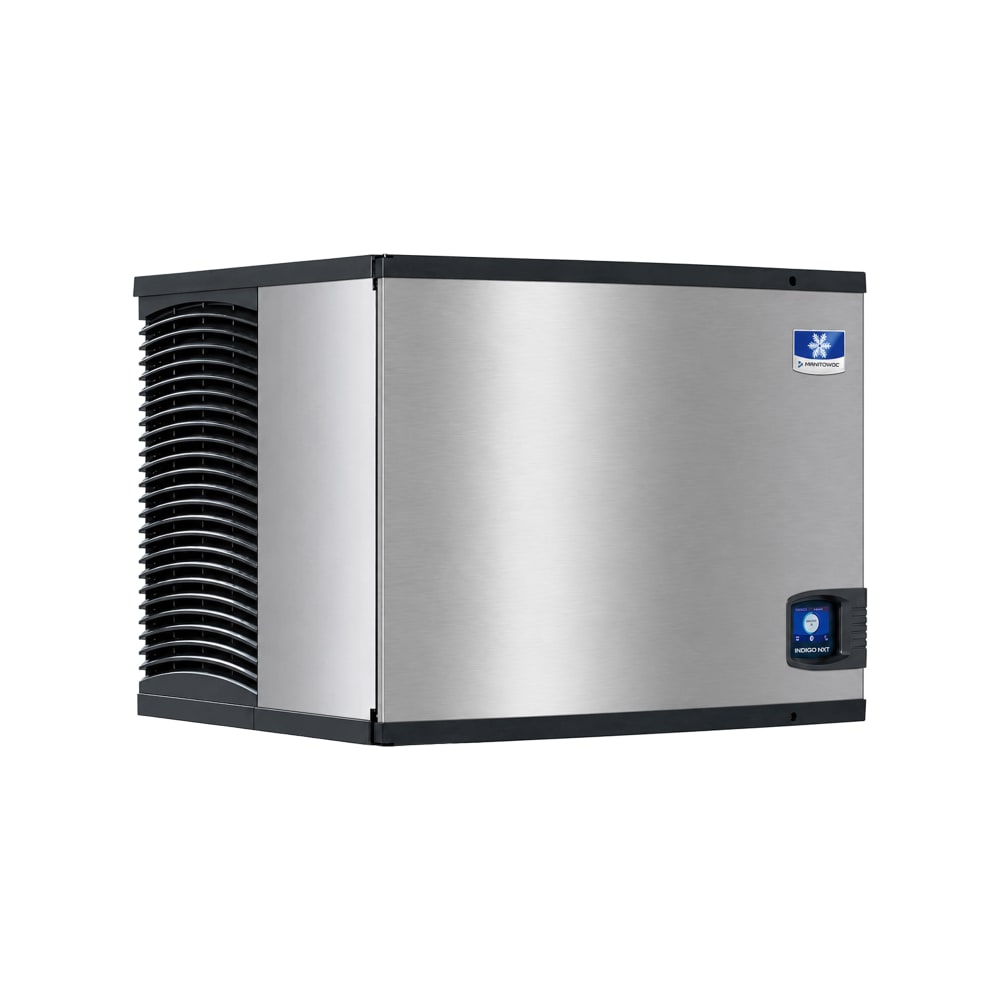

Manitowoc Ice IDT0750N 30" Indigo NXT™ Full Cube Ice Machine Head - 690 lb/24 hr, Remote Cooled, 208-230v/1ph

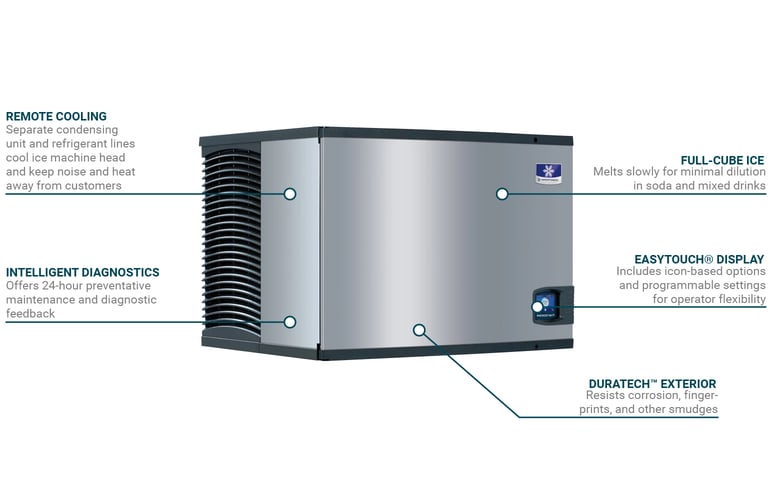

The Manitowoc Ice IDT0750N Indigo NXT™ ice machine head is designed to produce full-sized ice ideal for drink stations and bars. It utilizes a remote, air-cooled condenser—sold separately—to reduce heat and noise in the dining area and kitchen. In ideal conditions, the unit can produce 690 pounds of ice in 24 hours; however, this is reduced if the exterior temperature exceeds 70 degrees Fahrenheit.

The easyTouch® display provides operators with control of the Manitowoc Ice IDT0750N ice maker unit. Using these controls, staff can access programable settings, set reminders, alerts, and timers, and review the system’s self-diagnostic technology. Internally, the unit is built for efficient cleaning with a removable water through, distribution tube, curtain, water probe, and water pump. Certain parts are protected with antimicrobial AlphaSan® to slow the growth of mold and bacteria. Externally, the ice maker is built with DuraTech®, a corrosion-resistant material that is more effective than stainless steel.

Product Details

• Part of the Indigo NXT series
• 690-lb. ice production in 24 hours at 70 degrees ambient air/50 degrees incoming water
• 580-lb. ice production in 24 hours at 90 degrees ambient air/70 degrees incoming water
• Full-cube ice
• Ice size: ⁷/₈ in. x ⁷/₈ in. ⁷/₈ in.
• Air-cooled remote condensing unit (system and refrigerant lines sold separately)
• Easy-to-clean foodzone with removable water trough, distribution tube, curtain, and sensing probes
• AlphaSan antimicrobial protection
• Acoustical ice sensing probe
• R404A refrigerant
• Corrosion-resistant DuraTech exterior

easyTouch Controls & Display

• 13 language options
• Operating status display
• Date and time display
• Automatic reminder and alert icon
• Programmable production options for time, weight, and day/night
• 1-touch asset information
• Automatic accessory detection
• 1-touch cleaning with instructions
• Self-diagnostic technology

Dimensions & Utilities

• 30 in. W x 24 in. D x 21¹/₂ in. H
• 208-230 V/60 Hz/1 ph

Product Features

*Free shipping on Manitowoc Ice IDT0750N within the 48 contiguous states.

From The Manufacturer

Indigo NXT™ Series Ice Maker, cube-style, air-cooled, remote condenser (vertical condenser and lines sold separately), 30"W x 24"D x 21-1/2"H, production capacity up to 690 lb./24 hours at 70°/50° (580 lb. AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, dice size cubes, R410a refrigerant, NSF, cULus, CE

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor

Manitowoc Ice IDT0750N Specifications

Founded in 1964, Manitowoc is a Pentair company specializing in creating advanced commercial ice machines. The Wisconsin company has pioneered several developments in the ice industry, such as the vertical evaporator, EasyTouch displays, and environmentally friendly refrigerant, and is recognized as one of the top ice machine brands.
