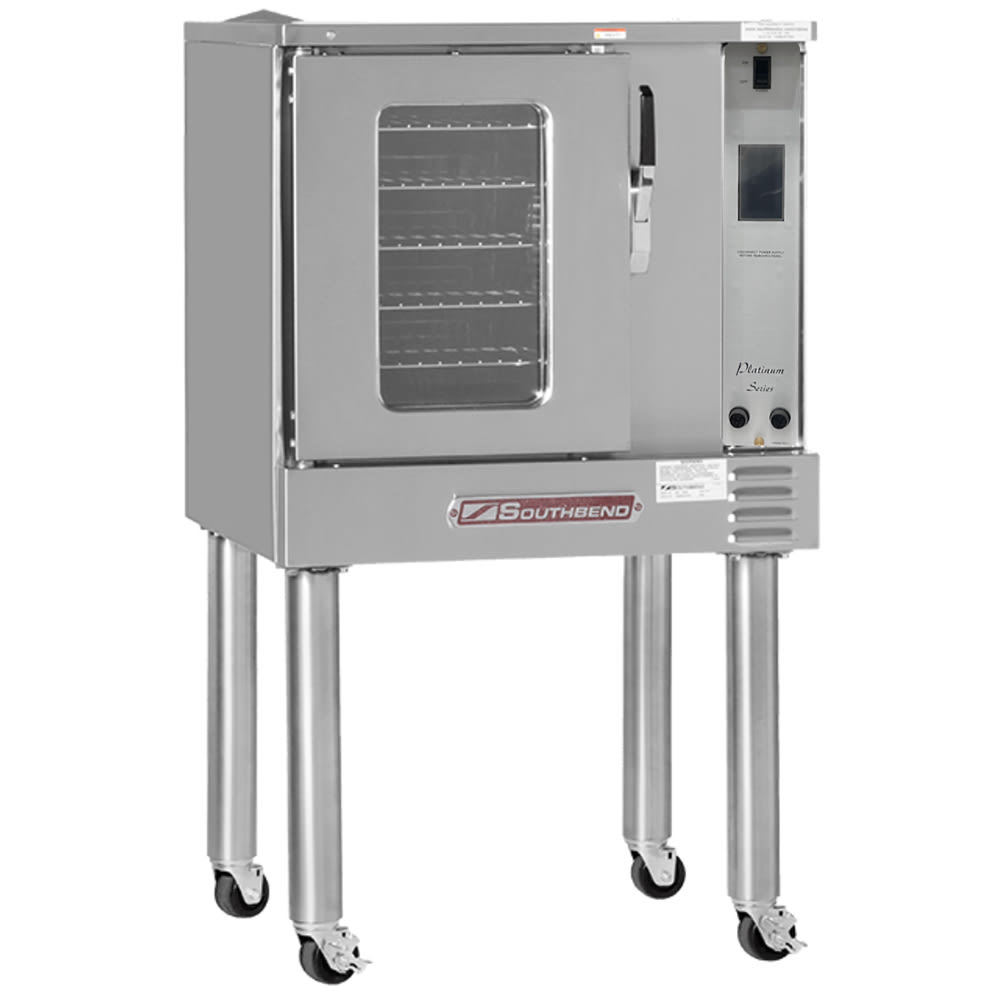

Southbend PCHE75S/T-V Platinum Ventless Single Half Size Convection Oven - 7.5kW, 240v/3ph
$9,561.00 /Each
Call for details!
Selected Voltage: 240V, 3 Phase
| 240V, 3 Phase |
| 208V, 1 Phase |
| 208V, 3 Phase |
| 240V, 1 Phase |
Southbend PCHE75S/T-V Description
With touchscreen controls, the Southbend PCHE75S/T-V Platinum single half-size convection oven adjusts fan, temperature, and timer settings. Operators can program recipes and use the unit’s rack mode to simultaneously cook various items. Using the solid-state thermostat, the temperature can be set from 150 to 550 degrees Fahrenheit, and it features a holding temperature between 140 and 200 degrees. Its two-speed blower fan evenly circulates heat throughout the oven chamber. This unit comes standard with 4-inch legs.
Measuring 30 inches wide by 29 13⁄20 inches deep by 33 inches high, the Southbend PCHE75S/T-V convection oven includes five plated racks, and for adjustable rack placement, the oven has 11-position rack guides. This oven’s stainless steel body and aluminized steel back panel are corrosion resistant and durable, while its interior is made of enamel-finish porcelain. Staff can check on food as it cooks through the door’s glass window.
- Part of the Platinum series
- Rear-placed heating elements
- Single, half-size design
- Ventless
- Stainless steel body and aluminized steel back panel
- Interior features porcelain enamel finish
- Comes with 5 plated racks
- Rack guides have 11 different positions
- 4-in. legs
- Patented plug-in, plug-out design
- Rack mode features multiple timers
- Digital display readout
- Fan motor offers 2 speeds
- Temperature range: 150-550 degrees F
- Holding temperature range: 140-200 degrees F
- Interior: 15 4⁄5 in. W x 21 3⁄10 in. D x 20 in. H
- Overall: 30 in. W x 29 13⁄20 in. D x 33 in. H
- 18.1 A, 7.5 kW, 1⁄2 HP
- 240 V/60 Hz/3 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Southbend PCHE75S/T-V within the 48 contiguous states.
From The Manufacturer
Platinum Single Convection Oven, Half Size, Electric 7.5kW, Standard Depth, Touch Controls, Ventless
Southbend PCHE75S/T-V Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Southbend |
| Base | Legs |
| Controls | Touch Screen |
| Depth (in) | 29.65 |
| Door Construction | Metal with Window |
| Door Type | Dependent |
| Heat | Electric |
| Height (in) | 33 |
| Hertz | 60 |
| Interior Construction | Porcelain |
| kW | 7.5 |
| Number of Ovens | Single |
| Oven Interior Style | Standard Depth |
| Pans Per Deck | 5 |
| Phase | 3 |
| Product | Convection Ovens |
| Product Type | Cooking Equipment |
| Rating | Spec |
| Series | Platinum |
| Size | Half Size |
| Special Features | Ventless |
| Type | Countertop |
| Voltage | 240 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 30 |
| Weight | 420.00 |
