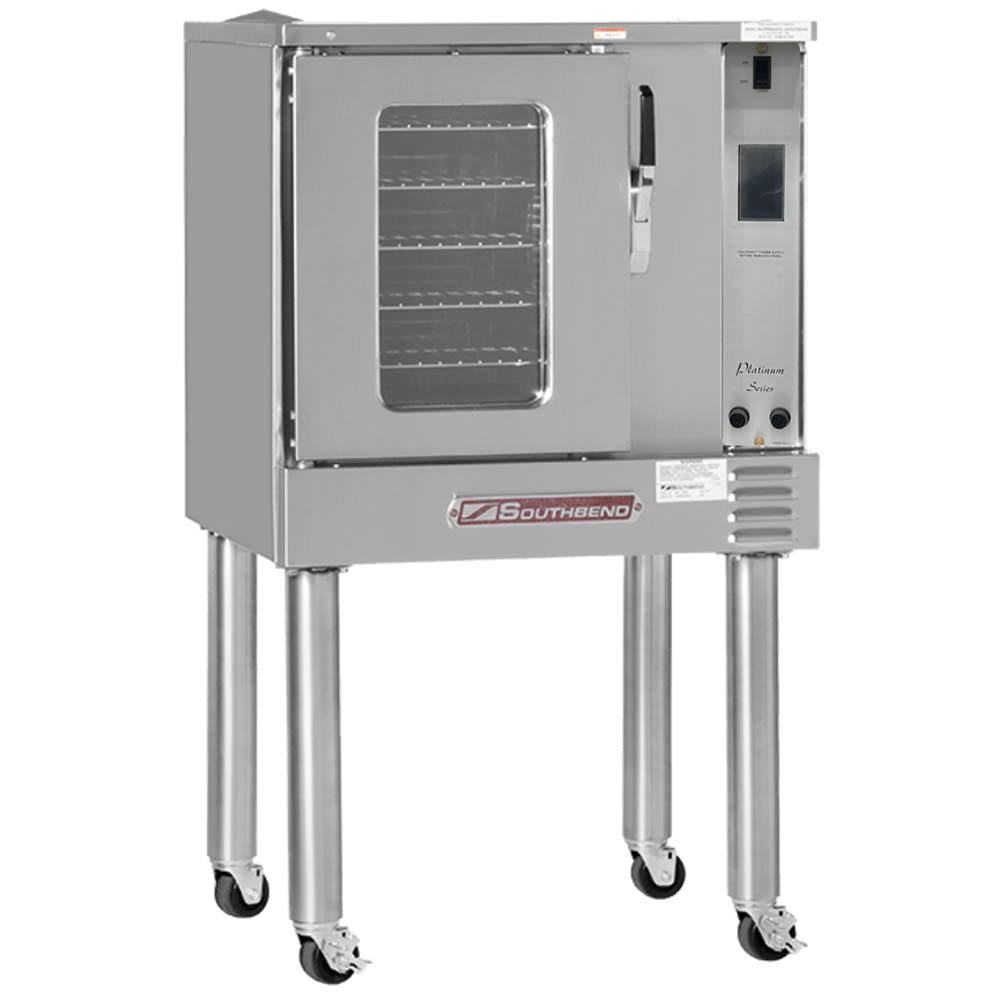

Southbend PCHE75S/T-V Platinum Ventless Single Half Size Convection Oven - 7.5kW, 208v/1ph
$9,561.00 /Each
Call for details!
Selected Voltage: 208V, 1 Phase
| 208V, 1 Phase |
| 208V, 3 Phase |
| 240V, 1 Phase |
| 240V, 3 Phase |
Southbend PCHE75S/T-V Description
The Southbend PCHE75S/T-V Platinum single half-size convection oven is equipped with thermostatic controls ensuring accurate temperature adjustments; it can be set from 150 to 550 degrees Fahrenheit. Rear-mounted heating elements produce hot air throughout the chamber, while a two-speed blower fan provides even heat distribution. For heat retention, the oven has a stainless steel exterior and porcelain enameled interior. This unit comes standard with 4-inch legs.
Measuring 15 4⁄5 inches wide by 21 3⁄10 inches deep by 20 inches high, the Southbend PCHE75S/T-V convection oven’s interior features 11-position rack guides and comes with five plated oven racks. With a single door featuring a glass panel, operators can clearly view the oven’s interior to manage the cooking process. This unit is ventless, so it can be installed in a kitchen without a hood.
- Platinum series
- Rear-mounted, sheath-type heating elements
- Single deck
- Ventless design
- 4-in. legs come standard
- Stainless steel front, top, and sides
- Aluminized steel back panel
- Single door with window
- Enameled porcelain interior with coved corners
- Includes 11-position rack guides and 5 plated oven racks
- Removable panel configuration
- Timers and recipes are programmable
- Digital display
- 2-speed motorized fan
- Forced cool-down fan mode
- Temperature range: 150-550 degrees F
- Holding temperature range: 140-200 degrees F
- Interior: 15 4⁄5 in. W x 21 3⁄10 in. D x 20 in. H
- Overall: 30 in. W x 29 13⁄20 in. D x 33 in. H
- 36.1 A, 7.5 kW, 1⁄2 HP
- 208 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Southbend PCHE75S/T-V within the 48 contiguous states.
From The Manufacturer
Platinum Single Convection Oven, Half Size, Electric 7.5kW, Standard Depth, Touch Controls, Ventless
Southbend PCHE75S/T-V Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Southbend |
| Base | Legs |
| Controls | Touch Screen |
| Depth (in) | 29.65 |
| Door Construction | Metal with Window |
| Door Type | Dependent |
| Heat | Electric |
| Height (in) | 33 |
| Hertz | 60 |
| Interior Construction | Porcelain |
| kW | 7.5 |
| Number of Ovens | Single |
| Oven Interior Style | Standard Depth |
| Pans Per Deck | 5 |
| Phase | 1 |
| Product | Convection Ovens |
| Product Type | Cooking Equipment |
| Rating | Spec |
| Series | Platinum |
| Size | Half Size |
| Special Features | Ventless |
| Type | Countertop |
| Voltage | 208 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 30 |
| Weight | 420.00 |
