Southbend PCHE75S/T-V Platinum Ventless Single Half Size Convection Oven - 7.5kW, 208v/3ph
$8,832.00 /Each
Web price, call us!
Selected Voltage: 208V, 3 Phase
| 208V, 1 Phase |
| 208V, 3 Phase |
| 240V, 1 Phase |
| 240V, 3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Southbend PCHE75S/T-V Description
The Southbend PCHE75S/T-V Platinum single half-size convection oven’s control panel is side mounted and placed away from the unit’s high-efficiency heating elements for user safety. Its five wire racks can be placed in 11 positions spaced 15/8 inches apart. This oven has a ventless hood with a two-speed fan and forced cool-down mode, and it measures 30 inches wide by 2913/20 inches deep by 33 inches high overall.
Constructed of stainless steel with an aluminized steel back panel, the Southbend PCHE75S/T-V convection oven offers a long-lasting performance. The porcelain interior has an enamel finish and coved corners that simplify the cleaning process. Operators can monitor the interior through the door’s glass window, and this unit is equipped with touchscreen controls that adjust temperature, timer, and fan settings. With a digital display that provides accurate temperature readouts, this oven can reach temperatures between 150 and 550 degrees Fahrenheit and has a holding temperature range of 140 to 200 degrees.
Product Details
- Platinum series
- Rear-mounted heating elements
- Ventless
- Single-deck design
- Stainless steel exterior with aluminized steel back
- Porcelain interior with enamel finish
- Coved interior corners
- 5 wire oven racks
- 15/8-in. centers in 11 different rack positions
- Door is equipped with window and handle
Digital Controls
- Patented plug-in, plug-out control panel
- Programmable timers and recipes
- Digitally displayed timer and temperature
- 2-speed fan has forced cool-down mode
- Temperature range: 150-550 degrees F
- Holding temperature: 140-200 degrees F
Dimensions & Utilities
- Interior: 154/5 in. W x 213/10 in. D x 20 in. H
- Overall: 30 in. W x 2913/20 in. D x 33 in. H
- 20.9 A, 7.5 kW, 1/2 HP
- 208 V/60 Hz/3 ph
Product Features
*Free shipping on Southbend PCHE75S/T-V within the 48 contiguous states.
From The Manufacturer
Platinum Single Convection Oven, Half Size, Electric 7.5kW, Standard Depth, Touch Controls, Ventless

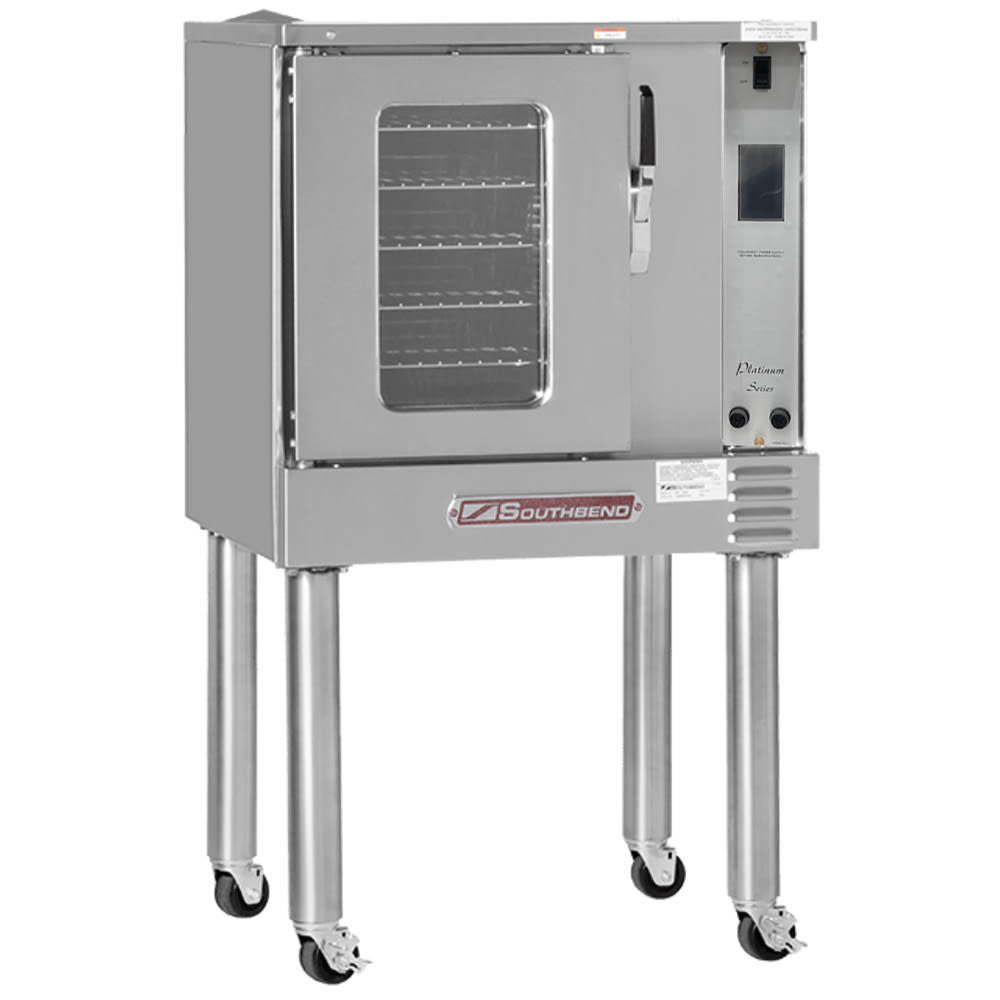

*Image may not depict product color, inclusions or accessories.
Southbend PCHE75S/T-V Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Southbend |
| Base | Legs |
| Controls | Touch Screen |
| Depth (in) | 29.65 |
| Door Construction | Metal with Window |
| Door Type | Dependent |
| Heat | Electric |
| Height (in) | 33 |
| Hertz | 60 |
| Interior Construction | Porcelain |
| kW | 7.5 |
| Number of Ovens | Single |
| Oven Interior Style | Standard Depth |
| Pans Per Deck | 5 |
| Phase | 3 |
| Product | Convection Ovens |
| Product Type | Cooking Equipment |
| Rating | Spec |
| Series | Platinum |
| Size | Half Size |
| Special Features | Ventless |
| Type | Floor Model |
| Voltage | 208 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 30 |
| Weight | 420.00 |
Important Prop 65 information for California residents.
