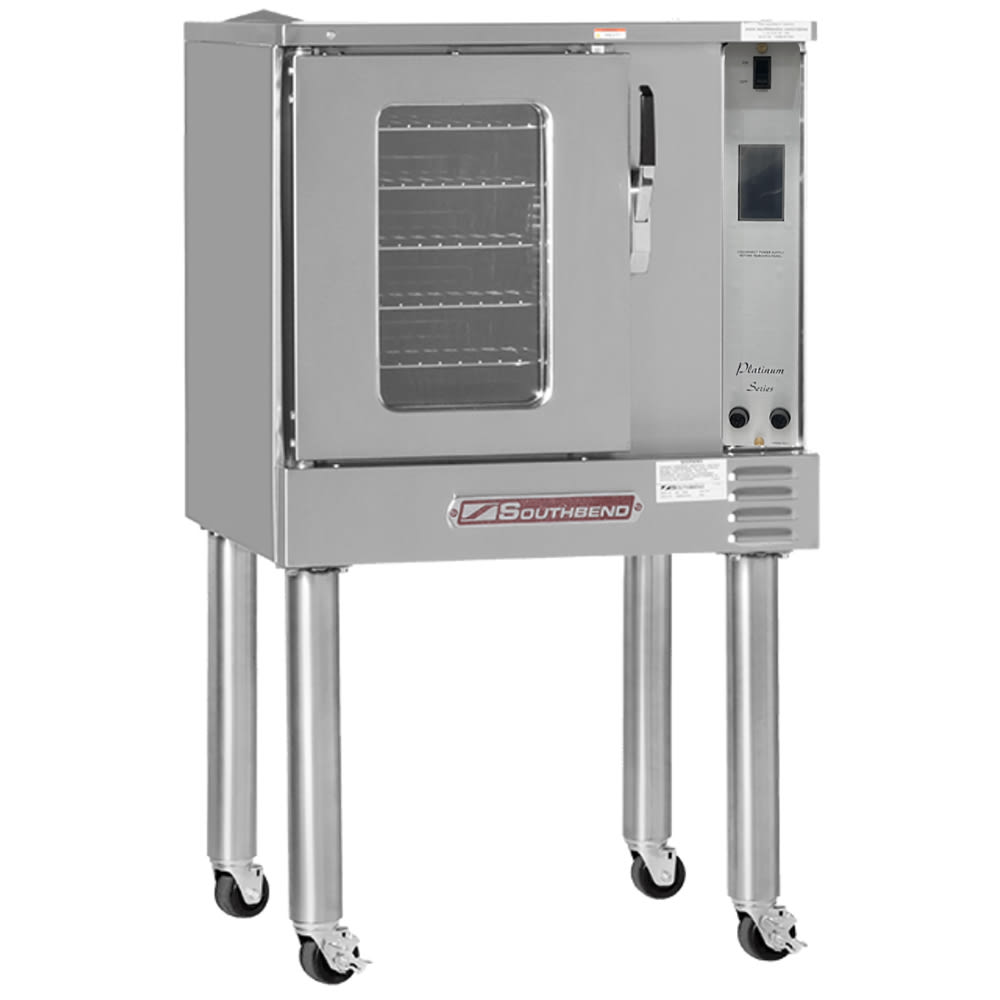

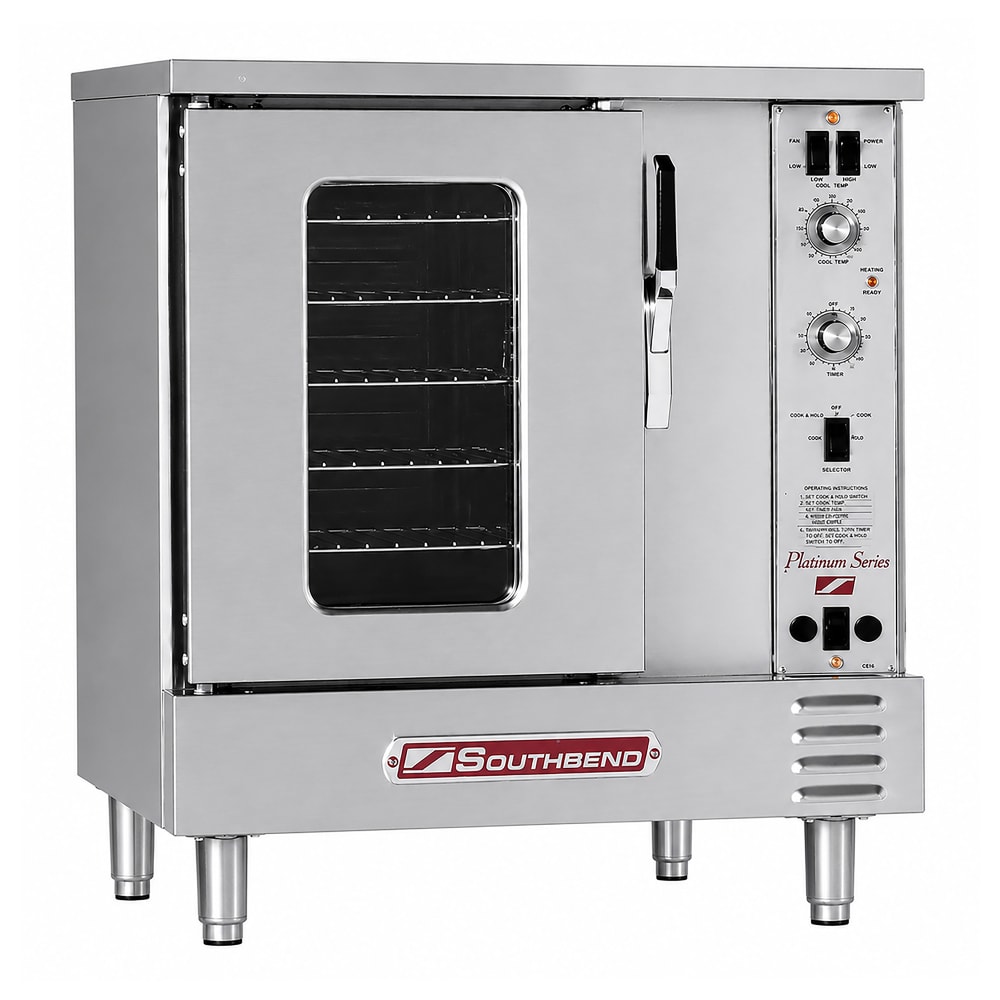

Southbend PCHE75S/T Platinum Single Half Size Convection Oven - 7.5kW, 240v/1ph
$6,922.00 /Each
Web price, call us!
Selected Voltage: 240V, 1 Phase
| 208V, 1 Phase |
| 208V, 3 Phase |
| 240V, 1 Phase |
| 240V, 3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Southbend PCHE75S/T Description

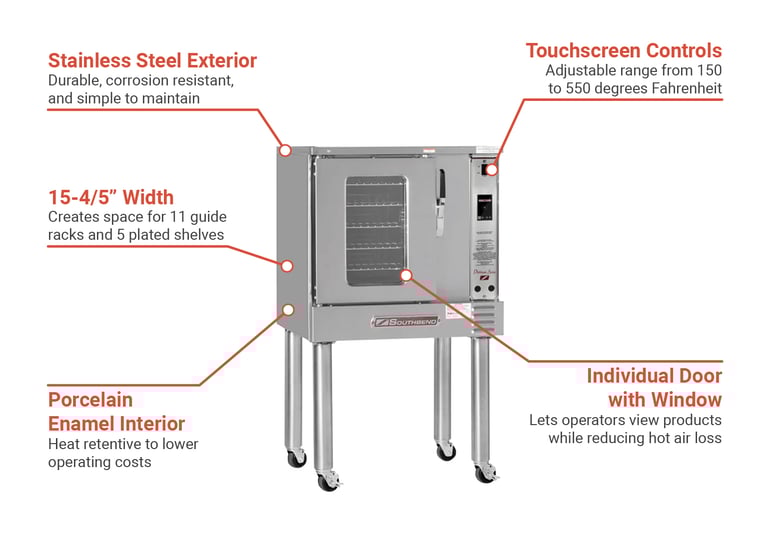

The single compartment of the Southbend PCHE75S/T single half-size oven measures 154/5 inches and features five racks that can be adjusted across the 11-position rack guide. The unit’s porcelain enamel interior is a great heat insulator, while the coved corners create an effective, simple-to-clean design. An individual door with a viewing window offers simple visibility so operators can monitor product throughout the cooking process. The exterior front, top, and sides are made of stainless steel, and the unit features an aluminized steel back.
At the side of the Southbend PCHE75S/T single half-size oven is a touchscreen control panel. This panel offers the following operations for adjustment of time, temperature, and a pre-set rack mode. Temperatures are adjustable from 150 to 550 degrees, and the unit offers a holding range from 140 to 200 degrees after the cook cycle is complete. Conditions can be tracked with the digital display, which offers both time and temperature. When service is needed, this control panel simply slides out.
Product Details
- From the Platinum series
- Electric efficient heating elements
- Stainless steel exterior
- Porcelain enamel interior
- Coved interior corners
- 11-position rack guide and 5 racks
- Individual door with viewing window
- Opens at 180 degrees
Touchscreen Controls
- Solid-state controls
- Temperature range: 150-550 degrees
- Holding range: 140-200 degrees F
- Pulls out for service
- Digital display with time and temperature
- High-limit temperature control precaution
Dimensions & Utilities
- Interior: 154/5 in. W x 213/10 in. D x 20 in. H
- Overall: 30 in. W x 267/10 in. D x 33 in. H
- 7.5 kW, 1/2 HP
- 240 V/60Hz/1 ph
Product Features
*Free shipping on Southbend PCHE75S/T within the 48 contiguous states.
From The Manufacturer
Platinum Single Convection Oven, Half Size, Electric 7.5kW, Standard Depth, Touch Controls
*Image may not depict product color, inclusions or accessories.
Southbend PCHE75S/T Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Southbend |
| Base | Legs |
| Controls | Touch Screen |
| Depth (in) | 29.65 |
| Door Construction | Metal with Window |
| Door Type | Dependent |
| Heat | Electric |
| Height (in) | 33 |
| Hertz | 60 |
| Interior Construction | Porcelain |
| kW | 7.5 |
| Number of Ovens | Single |
| Oven Interior Style | Standard Depth |
| Pans Per Deck | 5 |
| Phase | 1 |
| Product | Convection Ovens |
| Product Type | Cooking Equipment |
| Rating | Spec |
| Series | Platinum |
| Size | Half Size |
| Type | Floor Model |
| Voltage | 240 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 30 |
| Weight | 420.00 |
