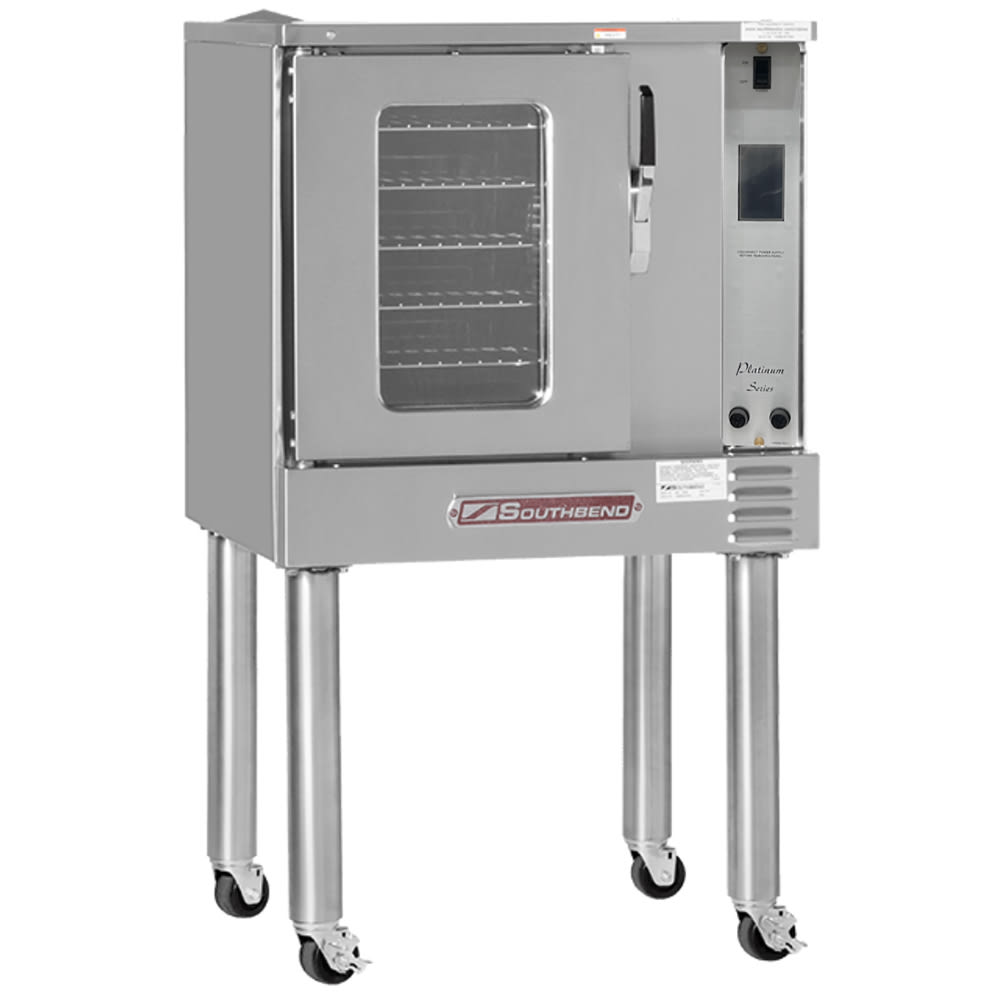

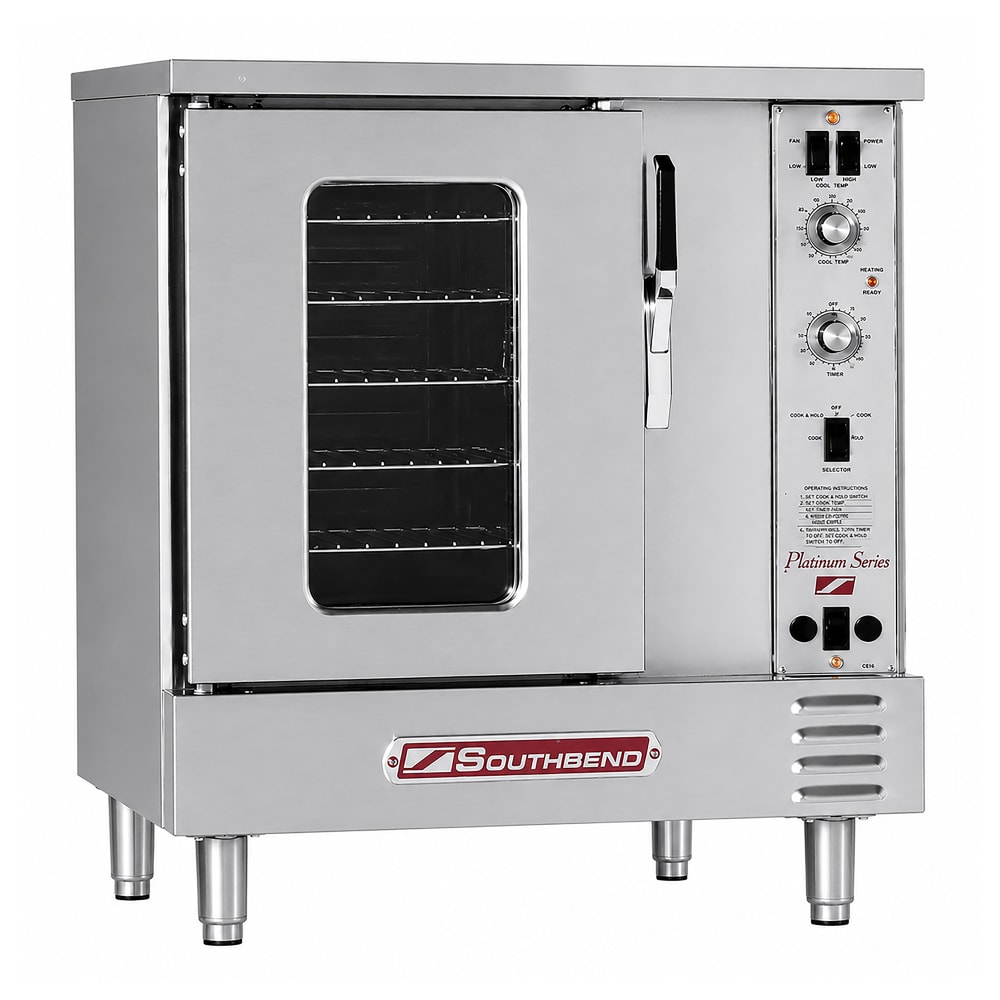

Southbend PCHE75S/T Platinum Single Half Size Convection Oven - 7.5kW, 208v/3ph
$6,922.00 /Each
Web price, call us!
Selected Voltage: 208V, 3 Phase
| 208V, 3 Phase |
| 208V, 1 Phase |
| 240V, 1 Phase |
| 240V, 3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Southbend PCHE75S/T Description

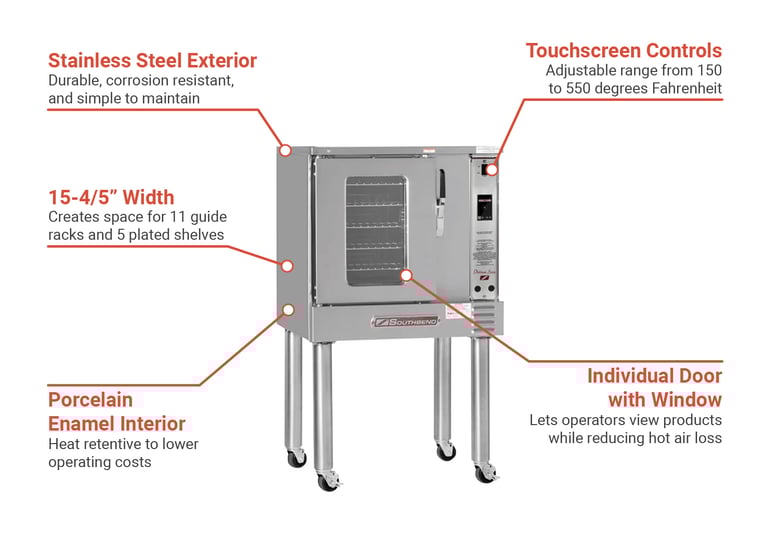

The Southbend PCHE75S/T single half-size convection oven features a simple-to-use touchscreen control panel that’s side mounted, keeping it away from the heating elements to minimize burn or scald hazards. Employees can select between multiple modes, and ‘rack mode’ is great for cooking items in bulk to completeness in high-volume establishments. This control panel has an adjustable temperature range from 150 and 550 degrees, and it features a hold mode that can be set between 140 and 200 degrees.
From the Platinum series, the Southbend PCHE75S/T convection oven’s exterior is made of all stainless steel, while the interior is finished in porcelain enamel. The compartment is constructed with an individual door featuring a viewing window to monitor product as it cooks. This door opens fully at 180 degrees—useful for efficient stocking. With the time and temperature display, the oven’s running conditions are simple to track.
Product Details
- Platinum series
- Half-size unit
- Stainless steel construction
- Porcelain enamel interior
- 11-positon rack guide
- 5 racks
- Mounted on 4-in. stainless steel legs
Touchscreen Controls
- Solid-state controls
- Temperature range: 150-550 degrees F
- Holding temperature range: 140-200 degrees F
- Time and temperature display
- Fan cycle timer pulses fan
- Rack mode cooks items in bulk
Dimensions & Utilities
- Interior: 154/5 in. W x 213/10 in. D x 20 in. H
- Overall: 30 in. W x 267/10 in. D x 33 in. H
- 7.5 kW, 1/2 HP
- 208 V/60Hz/3 ph
Product Features
*Free shipping on Southbend PCHE75S/T within the 48 contiguous states.
From The Manufacturer
Platinum Single Convection Oven, Half Size, Electric 7.5kW, Standard Depth, Touch Controls
*Image may not depict product color, inclusions or accessories.
Southbend PCHE75S/T Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Southbend |
| Base | Legs |
| Controls | Touch Screen |
| Depth (in) | 29.65 |
| Door Construction | Metal with Window |
| Door Type | Dependent |
| Heat | Electric |
| Height (in) | 33 |
| Hertz | 60 |
| Interior Construction | Porcelain |
| kW | 7.5 |
| Number of Ovens | Single |
| Oven Interior Style | Standard Depth |
| Pans Per Deck | 5 |
| Phase | 3 |
| Product | Convection Ovens |
| Product Type | Cooking Equipment |
| Rating | Spec |
| Series | Platinum |
| Size | Half Size |
| Type | Floor Model |
| Voltage | 208 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 30 |
| Weight | 420.00 |
Important Prop 65 information for California residents.
