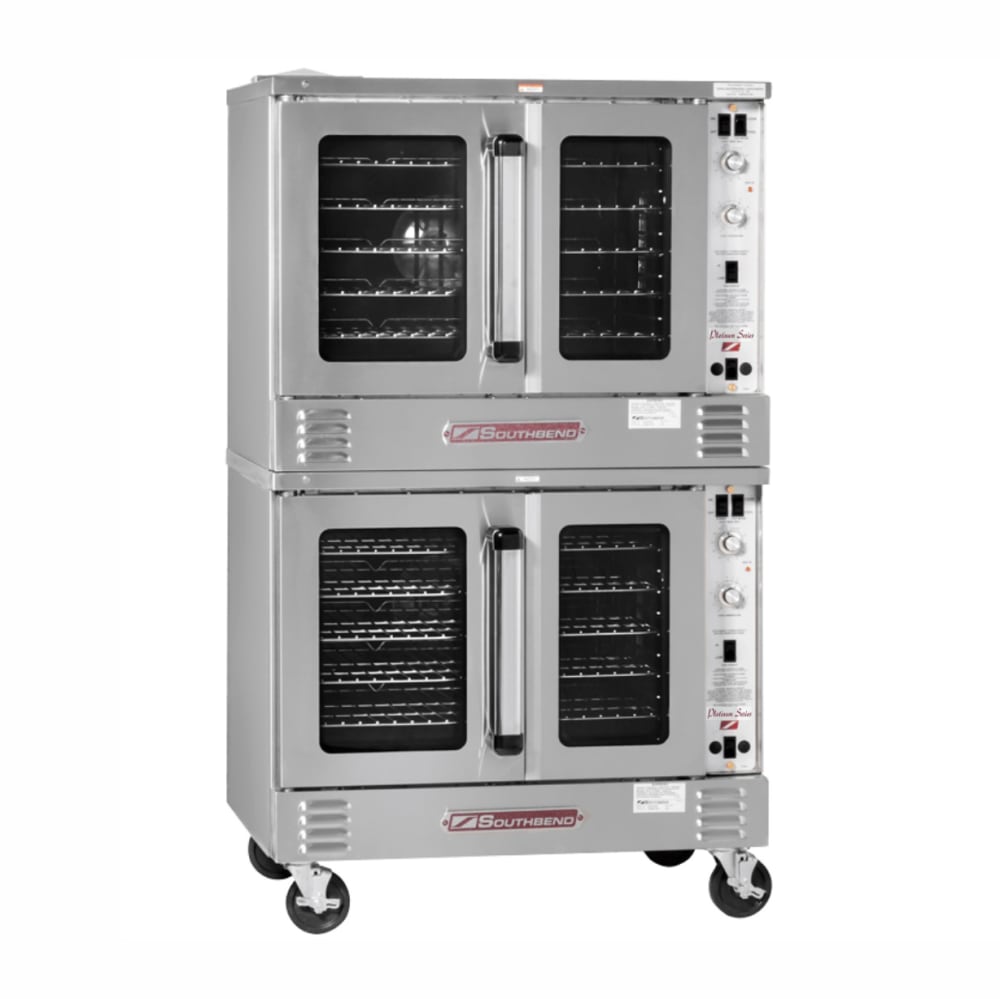

Southbend PCE15S/SD-V Platinum Ventless Double Full Size Convection Oven - 7.5kW, 208v/3ph
Typically ships in 3 - 4 weeks
$16,537.00 /Each
Call for details!
Selected Voltage: 208V, 3 Phase
| 208V, 3 Phase |
| 208V, 1 Phase |
| 240V, 1 Phase |
| 240V, 3 Phase |
Southbend PCE15S/SD-V Description
The heavy-duty doors on each deck of the Southbend PCE15S/SD Platinum full-size, double-deck convection oven have windows to provide a clear view of contents as they cook. These doors have a dependent design to enable one-handed opening and stay-cool handles to enhance operator safety. The unit is constructed of stainless steel to resist dents, rust, and corrosion, and the oven interiors are made of enameled porcelain with coved corners to aid in heat retention and distribution. This unit has a total of 10 oven racks to hold food items and each oven chamber has 11-position rack guides that permit users to adjust oven rack configurations to fit bigger food pans.
The ventless design of the Southbend PCE15S/SD convection oven eliminates the need for a hood, which enables operators to install this unit in different locations around a kitchen or work area. A two-speed fan motor for each oven deck pushes hot air into the oven cavity to produce set temperatures between 140 and 500 degrees Fahrenheit. Temperature programming is performed using the control panel located on the front right of each oven deck; this panel can slide-out for simple servicing.
- Platinum series
- Double-deck unit
- Full-size, standard-depth design
- Ventless
- Made of durable stainless steel
- Interior is made of enameled porcelain with coved corners
- 2 doors per deck with heat-saving glass windows
- Dependent door design permits single-handed opening
- Heavy-duty, stay-cool door handles
- 5 plated oven racks are adjustable along 11-position rack guides
- Interior lighting
- Temperature range: 140-500 degrees F
- Slide-out control panel
- Standard controls offer a solid-state thermostat and 60-minute mechanical cook timer
- 2-speed fan motor
- Rear-mounted sheath type heating element
- Interior: (2) 29 in. W x 21 1⁄2 in. D x 20 in. H
- Overall: 38 in. W x 37 1⁄4 in. D x 64 in. H
- 20.9 A, 7.5 kW
- 208 V/60 Hz/3 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Southbend PCE15S/SD-V within the 48 contiguous states.
From The Manufacturer
Platinum Double Convection Oven, Electric, 7.5kW each, Standard Depth, Standard Controls, Dependent Doors, Ventless
Southbend PCE15S/SD-V Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Southbend |
| Base | Legs |
| Controls | Manual |
| Depth (in) | 37.25 |
| Door Construction | Metal with Window |
| Door Type | Dependent |
| Heat | Electric |
| Height (in) | 64 |
| Hertz | 60 |
| Interior Construction | Porcelain |
| kW | 15 |
| Number of Ovens | Double |
| Oven Interior Style | Standard Depth |
| Pans Per Deck | 5 |
| Phase | 3 |
| Product | Convection Ovens |
| Product Type | Cooking Equipment |
| Rating | Spec |
| Series | Platinum |
| Size | Full Size |
| Special Features | Ventless |
| Type | Floor Model |
| Voltage | 208 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 38 |
| Weight | 1040.00 |
