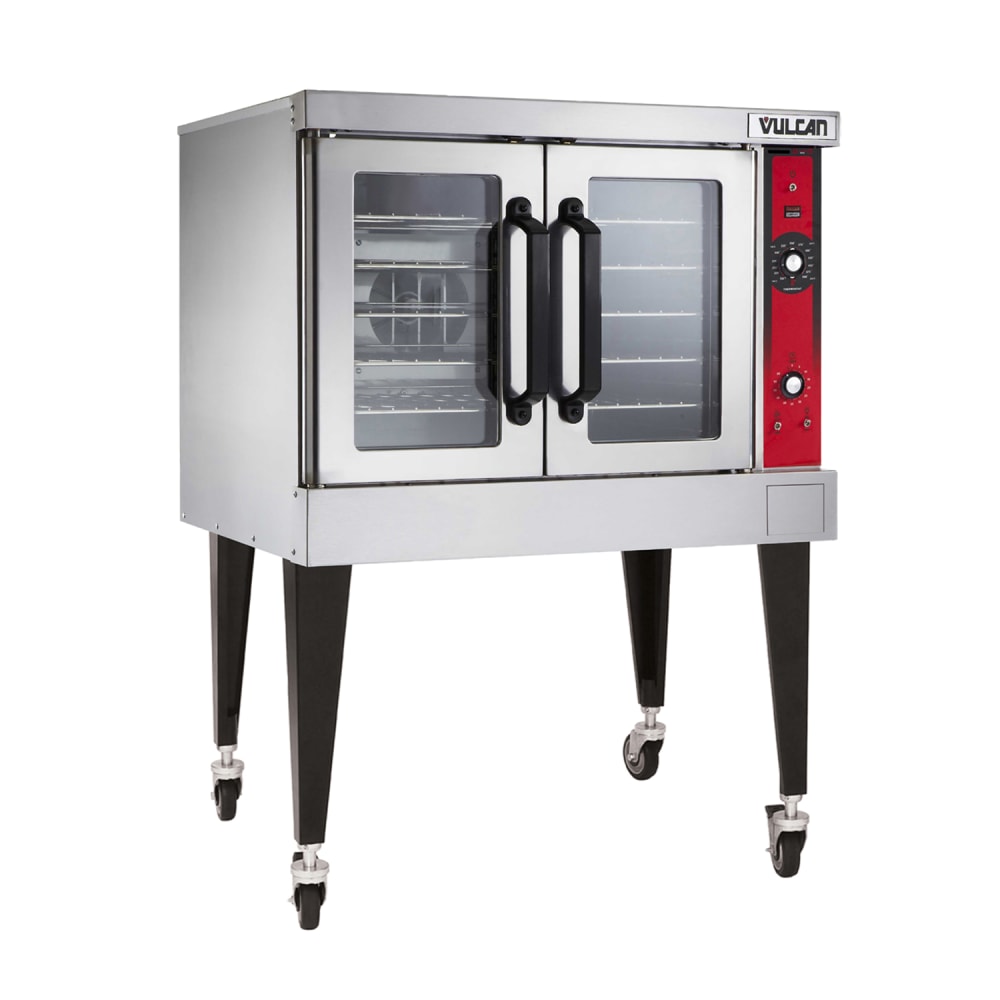

Vulcan VC6ED Bakery Depth Single Full Size Electric Convection Oven - 12.5 kW, 240v/3ph
Typically ships in 3 - 4 weeks
Retail Price: $19,644.00
$8,086.00 /Each
Selected Voltage: 240V, 3 Phase
| 240V, 3 Phase |
| 208V, 1 Phase |
| 208V, 3 Phase |
| 240V, 1 Phase |
Vulcan VC6ED Description
Ideal for use in commercial bakeries, the Vulcan VC6ED single-deck electric convection is bakery depth, which is deeper than other Vulcan convection ovens. Its interior measures 29 inches wide by 26 1⁄8 inches deep by 20 inches high, and it’s equipped with five nickel-plated oven racks—each of which has a 28 1⁄4-inch-wide by 24 1⁄2-inch-deep design. These racks can be positioned in 11 different spots, and a positive rack stop secures them in place. Electric solid-sheath elements heat the unit from 150 to 500 degrees Fahrenheit and can be adjusted with solid-state temperature controls. A two-speed oven blower motor circulates hot air evenly, and non-sagging insulation is integrated into its top, rear, sides, bottom, and doors to retain heat for back-to-back use.
The Vulcan VC6ED electric convection oven has a stainless steel front, sides, and top to withstand common wear from loading and unloading product on a daily basis. Both of its stainless steel doors open independently, enabling users to reach product and reduce heat loss by opening one door at a time. Double-paned windows are built into the doors so users can peer inside the porcelain enamel interior to check on cooking progress. To ensure the unit remains stable, the 40-inch-wide by 46 1⁄4-inch-deep by 54 3⁄4-inch-high unit is supported by 23 3⁄4-inch legs.
- Part of the VC6E series
- 1 oven with deep design
- Stainless steel front, top, and sides
- 5 nickel-plated oven racks
- 11-position rack guides with positive rack stops
- Electric solid-sheath elements heat unit
- Temperature is adjustable from 150 to 500 degrees F with solid-state temperature controls
- 60-minute timer with audible alarm
- 2-speed, 1⁄2-horsepower oven blower motor
- Top, rear, sides, bottom, and doors are made with non-sagging insulation
- 2 independently operated stainless steel doors
- 2 double-paned windows
- Porcelain enamel is built into steel oven interior
- Oven cool switch for quick cooling
- Moisture vent
- 2 interior oven lights
- 23 3⁄4-in. painted legs
- Rear clearance: 2 in.
- Right side clearance: 4 in.
- Left side clearance: 1 in.
- Oven racks: (5) 28 1⁄4 in. W x 24 1⁄2 in. D
- Oven interior: 29 in. W x 26 1⁄8 in. W x 20 in. H
- Overall: 40 in. W x 46 1⁄4 in. D x 54 3⁄4 in. H
- 29-33 A, 12.5 kW, 1⁄2 HP
- 240 V/60 Hz/3 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Vulcan VC6ED within the 48 contiguous states.
From The Manufacturer
Convection Oven, electric, single-deck, bakery depth, solid state controls, 60 minute timer, 23-3/4"H legs with foot, stainless steel front, top & sides, stainless steel door with window, 12.5kW, NSF, cUL, UL, ENERGY STAR®
Vulcan VC6ED Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Base | Legs |
| Controls | Manual |
| Depth (in) | 45.13 |
| Door Construction | Metal with Window |
| Door Type | Independent |
| Heat | Electric |
| Height (in) | 54.75 |
| Hertz | 60 |
| Interior Construction | Porcelain |
| kW | 12.5 |
| Number of Ovens | Single |
| Oven Interior Style | Deep Depth |
| Pans Per Deck | 5 |
| Phase | 3 |
| Product | Convection Ovens |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | VC6E Series |
| Size | Full Size |
| Special Features | Deep Depth |
| Type | Floor Model |
| Voltage | 240 |
| Warranty | 1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts |
| Width (in) | 40.25 |
| Weight | 463.00 |
