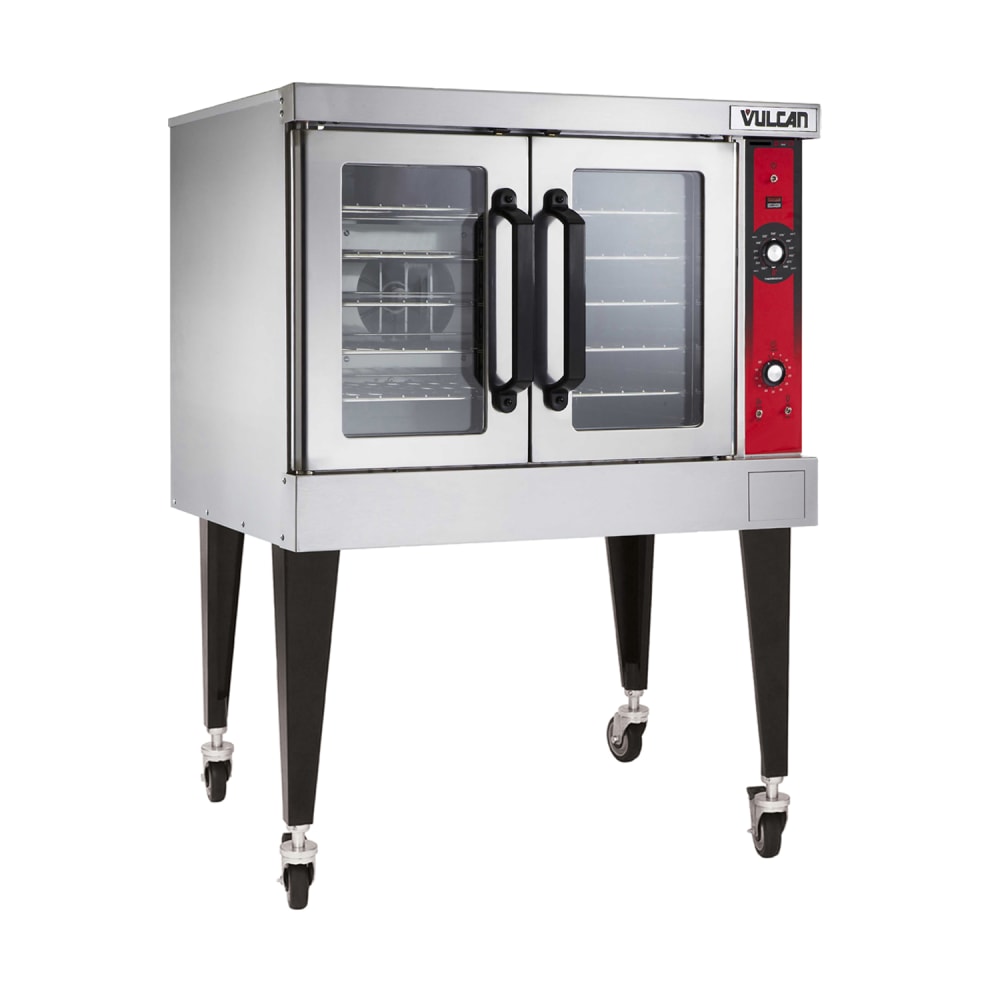

Vulcan VC6ED Bakery Depth Single Full Size Electric Convection Oven - 12.5 kW, 240v/1ph

Supported by 23³⁄₄-inch painted legs, the Vulcan VC6ED single-deck electric convection oven measures 40 inches wide by 46¹⁄₄ inches deep by 54³⁄₄ inches high. Its front, sides, and top are made of durable stainless steel to endure common wear from loading and unloading product, and its top, rear, sides, bottom, and doors are built with non-sagging insulation to help prevent deterioration over time. Equipped with two stainless steel doors that open separately to reduce heat loss, the unit has double-paned windows that enable operators to track progress.

The Vulcan VC6ED single-deck oven has a 29-inch-wide by 26¹⁄₈-inch-deep by 20-inch-high interior, which is deeper than other Vulcan convection ovens. Supporting five nickel-plated oven racks, it has 11 positions on which the racks can be placed, and positive rack stops keep them in place. The unit is heated with electric solid-sheath elements, and an oven blower motor helps hot air move freely around product. Solid-state temperature controls adjust the temperature from 150 to 500 degrees Fahrenheit, and to reduce the risk of burning or undercooking product, the unit comes with a 60-minute timer and audible alarm.

Product Details

• Part of the VC6E series
• Bakery-depth structure
• 1 oven
• Stainless steel front, top, and sides
• 5 nickel-plated oven racks
• 11-position rack guides and positive rack stops
• Heated with electric solid-sheath elements
• Solid-state temperature controls adjust from 150-550 degrees F
• 60-minute timer with audible alarm
• 2-speed, ¹⁄₂-horsepower oven blower motor
• Non-sagging insulation is integrated in top, rear, sides, bottom, and doors
• 2 independently operated stainless steel doors with double-paned windows
• Porcelain enamel on steel oven interior
• Rapid temperature cool-down with oven cool switch
• Dampness averted with moisture vent
• 2 interior oven lights
• 23³⁄₄-in. painted legs
• Rear clearance: 2 in.
• Right side clearance: 4 in.
• Left side clearance: 1 in.

Dimensions & Utilities

• Oven racks: (5) 28¹⁄₄ in. W x 24¹⁄₂ in. D
• Oven interior: 29 in. W x 26¹⁄₈ in. W x 20 in. H
• Overall: 40 in. W x 46¹⁄₄ in. D x 54³⁄₄ in. H
• 52 A, 12.5 kW, ¹⁄₂ HP
• 240 V/60 Hz/1 ph

*Free shipping on Vulcan VC6ED within the 48 contiguous states.

From The Manufacturer

Convection Oven, electric, single-deck, bakery depth, solid state controls, 60 minute timer, 23-3/4"H legs with foot, stainless steel front, top & sides, stainless steel door with window, 12.5kW, NSF, cUL, UL, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts

Vulcan VC6ED Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
