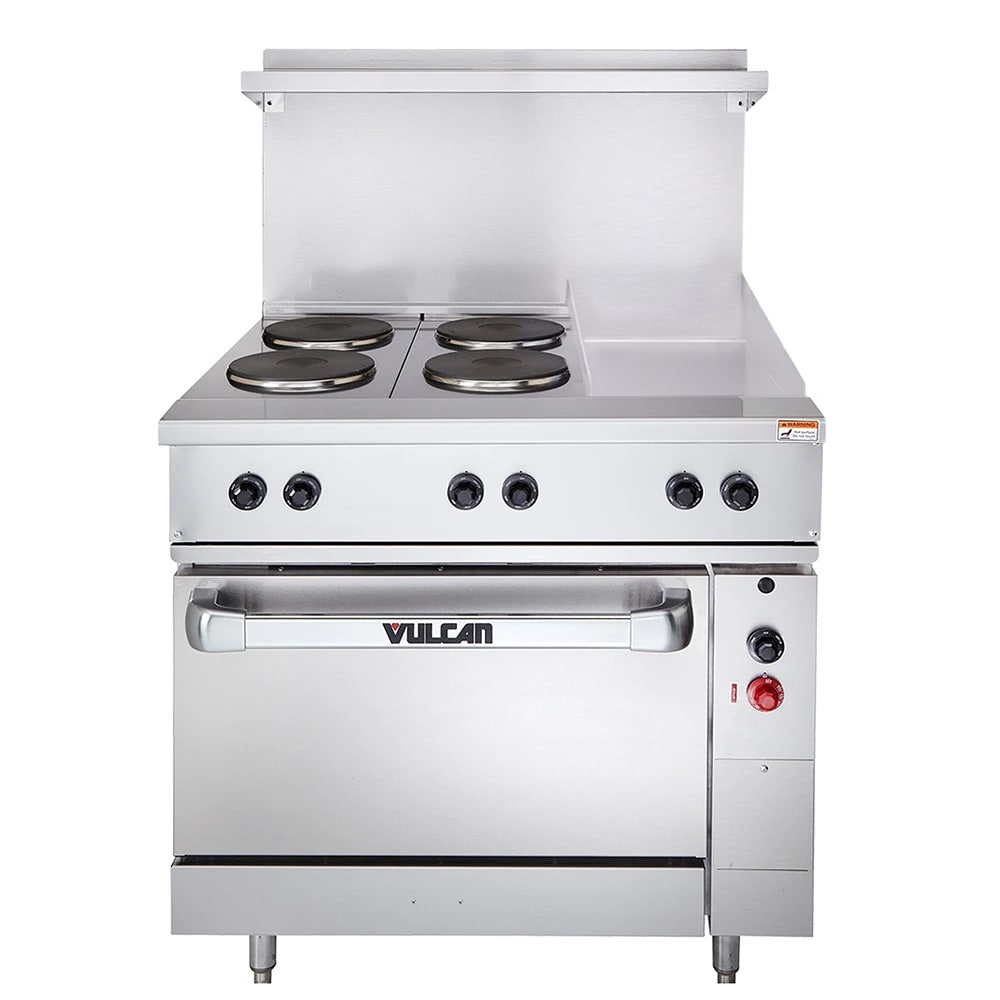

Vulcan EV36S-4FP12G480 36" EV Series Electric Range w/ (4) French Hot Plates & (1) Griddle, 480v/1ph/3ph
Retail Price: $40,862.00
$16,821.00 /Each
Selected Voltage: 480V, 3 Phase
| 480V, 3 Phase |
| 208V, 3 Phase |
| 240V, 3 Phase |
Vulcan EV36S-4FP12G480 Description
The Vulcan EV36S-4FP12G480 electric range features a standard oversized oven with a top browning control, and the thermostat accommodates a full range of baking, roasting, and high-heat cooking applications consistently because it adjusts the unit's operating temperature between 200 and 500 degrees. This unit supports single- or three-phase connections for efficient energy use and simplified installation.
The Vulcan EV36S-4FP12G480 electric range combines four French hot plates and a 12-inch thermostatic griddle for versatile cooking. Its polished steel surface and cast iron plates offer even heat distribution and durability. A fully MIG welded aluminized steel frame supports rugged use, while stainless steel surfaces simplify cleanup. The 6-inch adjustable legs improve stability and make it easier to clean underneath.
- EV series
- Stainless steel front, sides, back riser, shelf, and legs
- Fully MIG welded aluminized steel frame
- (4) 9 1⁄2-in. cast iron hot plates
- 12-in. wide steel griddle
- Thermostatic griddle control
- Cool-to-the-touch control knobs and oven handle
- Full-width stainless steel crumb tray
- Thermostat range: 200–500 degrees F
- Top browning control
- 1 oven rack with 3 rack positions
- Holds 18-in. x 26-in. sheet pans
- Overall: 36 in. W x 34 3⁄4 in. D x 58 in. H
- Interior: 26 1⁄2 in. W x 26 3⁄8 in. D x 14 in. H
- 480 V/60 Hz/1-3 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Vulcan EV36S-4FP12G480 within the 48 contiguous states.
- Comparing Commercial Range Configurations
- Learn How to Choose the Right Commercial Range
- Base Options for Commercial Ranges
- Electric vs Induction Ranges
- Cleaning Your Commercial Hood
- Gas vs Electric Ranges
- Range Cleaning and Maintenance Tips
- What is a Commercial Range?
- Choosing the Right Range Configuration
- Commercial Range Repair and Troubleshooting
From The Manufacturer
Restaurant Range, electric, 36", (4) 2.0 kW French hotplates, infinite controls, (1) 12" griddle, standard oversized oven, includes (1) rack, stainless steel front, sides, single-deck high shelf & 6" legs, 480v, cULus, UL EPH Classified, NSF
Vulcan EV36S-4FP12G480 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Base | Standard Oven |
| Depth (in) | 34.75 |
| Heat | Electric |
| Height (in) | 58 |
| Hertz | 60 |
| Number of Burners | 4 |
| Number of Ovens | Single |
| Phase | 1 |
| Phase | 3 |
| Product | Electric Ranges |
| Product Type | Cooking Equipment |
| Range Configuration | French Hot Plate/Griddle |
| Rating | Better |
| Series | EV Series |
| Voltage | 480 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 36 |
| Weight | 550.00 |
