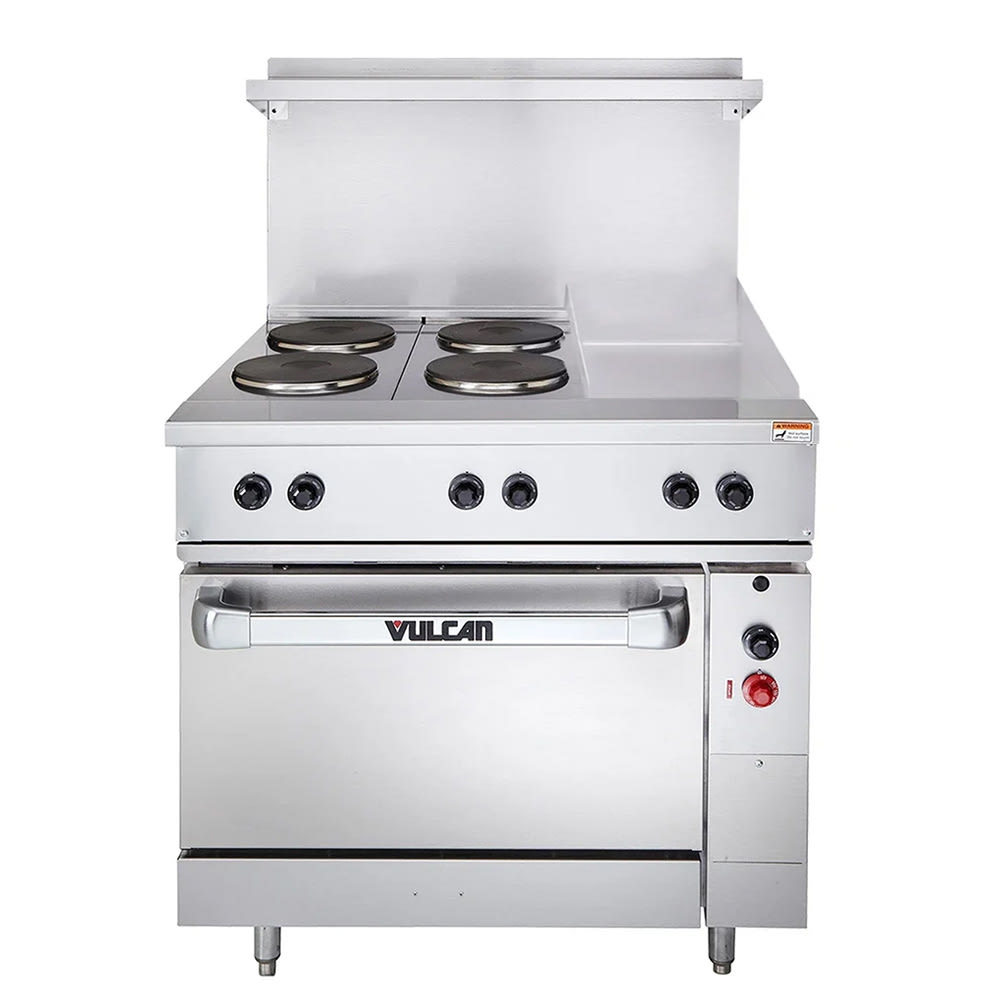

Vulcan EV36S-4FP12G240 36" Electric Range w/ Griddle, 240v/3ph

Image may not depict product color, inclusions or accessories.

KaTom #: 207-EV36S4FP12G240 • MPN: EV36S-4FP12G240
Ships Free

Extended Lead Time (14+ days)

(0 reviews)Write a Review
Price: $8,910.00

Selected Voltage: 240V, 1 Phase

240V, 1 Phase
208V, 1 Phase

Image may not depict product color, inclusions or accessories.

Vulcan EV36S-4FP12G240 Description


The Vulcan EV36S-4FP12G240 electric range is built with four French hotplates and a 12-inch griddle. There are infinite controls to adjust the heat and offer versatile cooking options. To keep the operator safe from burns, the controls stay cool to the touch. With a deep, stainless steel crumb tray, liquids and food debris from cooking are contained until ready to be thrown away.

A standard oversized oven is built on the base of the range. An 18-inch-by-26-inch sheet pan can be accommodated side to side and front to back in the oven cavity. It comes with one oven rack that can be adjusted to four positions. The thermostat adjusts from 200 to 500 degrees Fahrenheit, and the controls are isolated in a side-mounted insulated compartment. Since the front, shelf, and sides are constructed of stainless steel, the Vulcan EV36S-4FP12G240 electric range is durable and resists minor damage. To stabilize on uneven floors, the 6-inch stainless steel legs are adjustable.

Product Details

  • (4) 2 kW French hotplates
  • 12 in. griddle
  • Infinite controls allow for versatile cooking by adjusting the heat
  • Controls stay cool to prevent injury
  • Deep, stainless steel crumb tray collects liquids and food debris then pulls out
  • Durable stainless steel front, sides, and shelf resist minor damage
  • Aluminized steel frame has been fully MIG welded for a clean look
  • Stainless steel, 6-in. legs are adjustable to accommodate uneven floors
  • 240 V/60 Hz/3 ph, 30.3-46.9 A, 16.4 kW
  • Overall Dimensions: 36 in. W x 34 in. D x 58 in. H
  • cULus and UL-EPH listed; NSF certified

Standard Oversized Oven

  • 1 oven rack can be adjusted to 4 positions
  • Accommodates 18-in. x 26-in. sheet pans side to side and front to back
  • Thermostat can be adjusted between 200-500 degrees F
  • Low setting works well for cooking delicate products
  • Controls are side mounted in an insulated compartment to keep them safe from heat

Restaurant Range, electric, 36", (4) 2.0 kW French hot plates, infinite controls, (1) 12" griddle, standard oversized oven, includes (1) rack, stainless steel front, sides, single-deck high shelf & 6" legs, 240v cULus, UL EPH Classified, NSF

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Vulcan EV36S-4FP12G240 Specifications

PDF Spec Sheet
Manufacturer Vulcan
Base Standard Oven
Heat Electric
Range Configuration Griddle
Width (in) 36"
Hertz 60
Voltage 240
Phase 3
Product Electric Range
Product Type Cooking Equipment
Weight 550.00
Vulcan EV36S-4FP12G240 Certifications
  • UL
  • NSF
