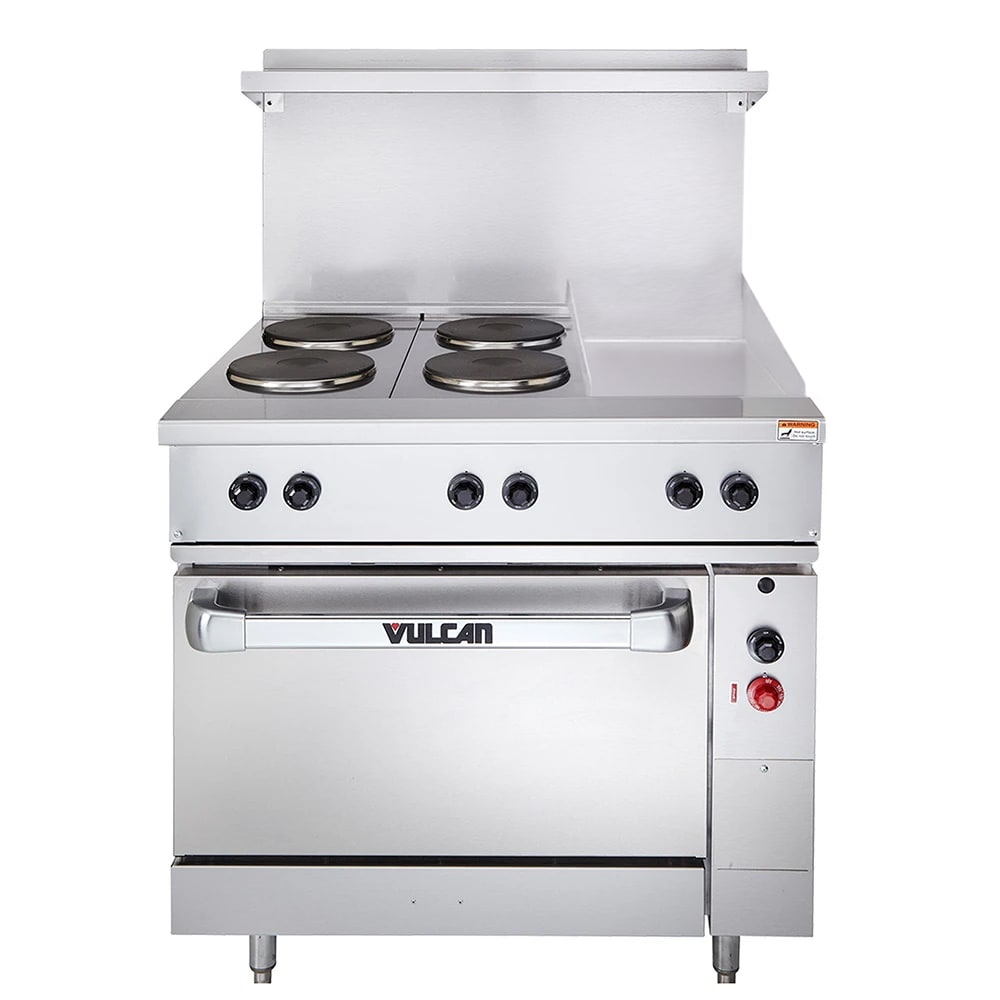

Vulcan EV36S-4FP12G208 36" EV Series Electric Range w/ (4) French Hot Plates & (1) Griddle, 208v/1ph/3ph

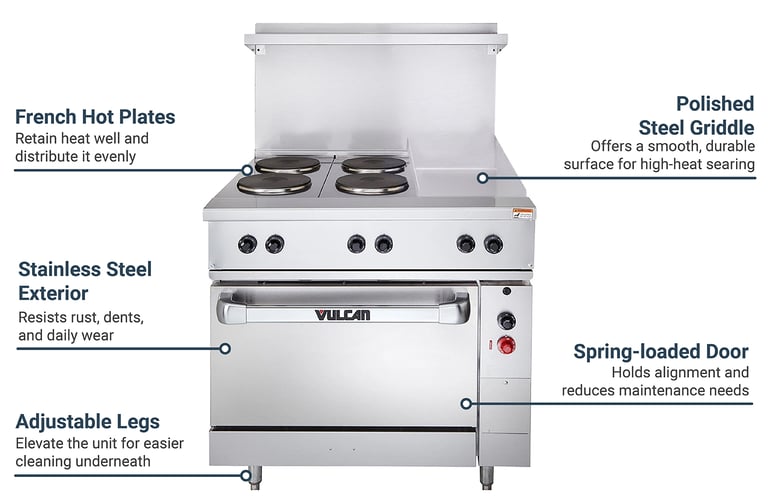

The Vulcan EV36S-4FP12G208 electric range supports single- or three-phase wiring and operates for installation flexibility. The cast iron French hot plates distribute heat evenly for sauteing and boiling. A 12-inch polished steel griddle provides consistent searing, and a 200–500-degree Fahrenheit thermostat enables precise temperature control across a wide cooking range. Overall, this unit measures 36 inches wide by 34³/₄ inches deep by 58 inches high.

The Vulcan EV36S-4FP12G208 electric range simplifies cleaning with a full-width crumb tray and includes cool-touch knobs and a stainless oven handle. The included oven fits 18-inch by 26-inch pans front to back or side to side and includes one rack with three adjustable positions. The oven's top browning control supports finishing tasks, and a spring-loaded oven door holds its alignment.

Product Details

• Part of the EV series
• Stainless steel front, sides, back riser, shelf, and legs
• Welded aluminized steel frame
• (4) 9¹⁄₂-in. round hot plates
• 12-in. wide polished steel griddle
• Thermostatic griddle control
• Cool-to-the-touch control knobs and oven handle
• Full-width stainless steel crumb tray
• Thermostat range: 200–500 degrees F

Standard Oven

• Top browning control
• 1 oven rack with 3 rack positions
• Holds 18-in. x 26-in. sheet pans

Dimensions & Utilities

• Overall: 36 in. W x 34³⁄₄ in. D x 58 in. H
• Interior: 26¹⁄₂ in. W x 26³⁄₈ in. D x 14 in. H
• 208 V/60 Hz/1-3 ph (hardwire installation required)

Product Features

*Free shipping on Vulcan EV36S-4FP12G208 within the 48 contiguous states.

From The Manufacturer

Restaurant Range, electric, 36", (4) 2.0 kW French hotplates, infinite controls, (1) 12" griddle, standard oversized oven, includes (1) rack, stainless steel front, sides, single-deck high shelf & 6" legs, 208v, cULus, UL EPH Classified, NSF

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor

Vulcan EV36S-4FP12G208 Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
