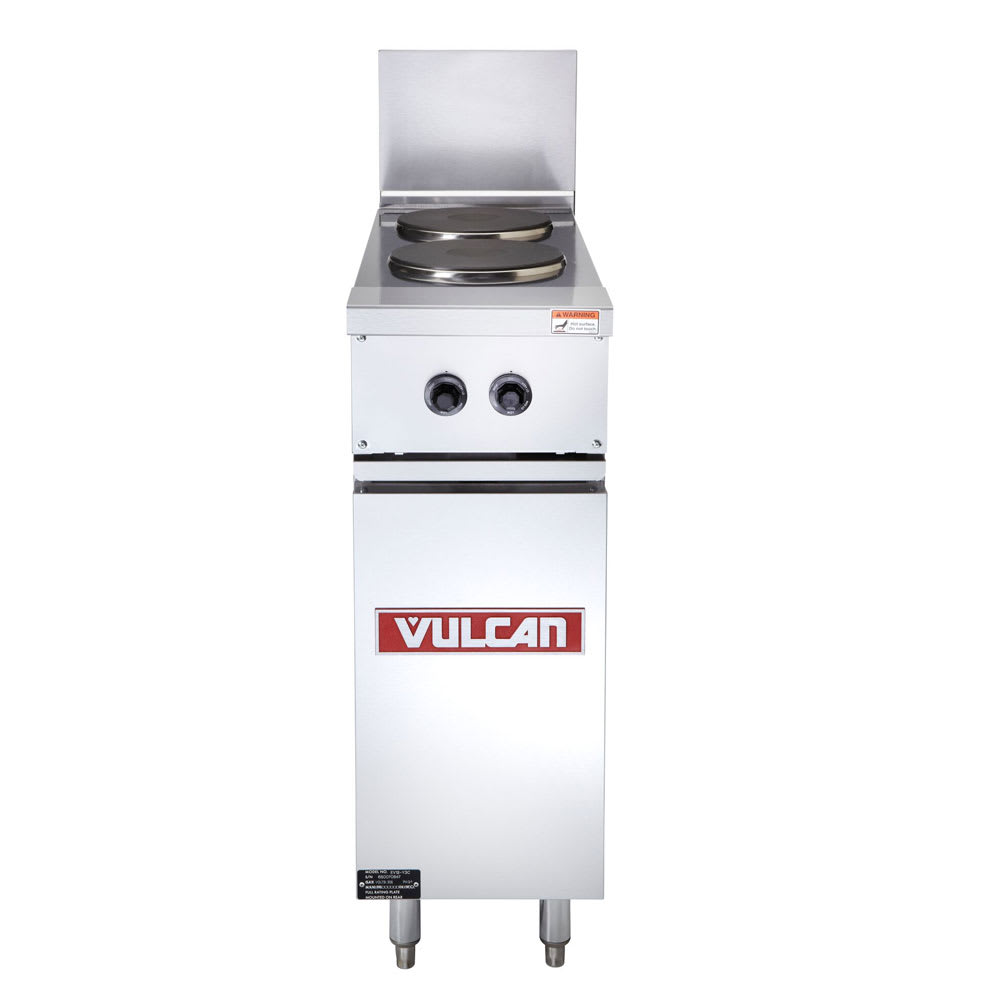

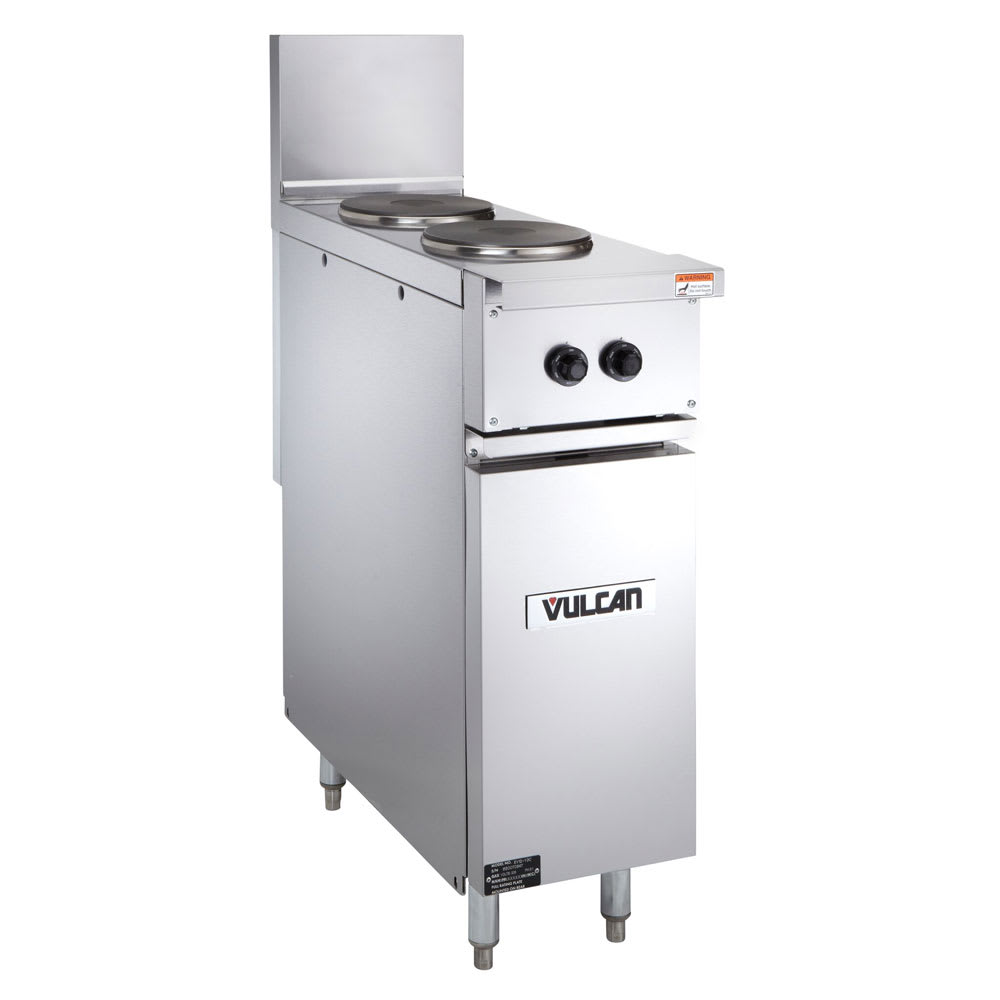

Vulcan EV12-2FP480 12" Expando Electric Range w/ (2) French Hot Plates, 480v/1ph/3ph
Typically ships in 10 - 12 weeks
Retail Price: $11,295.00
$4,650.00 /Each
Selected Voltage: 480V, 3 Phase
| 480V, 3 Phase |
| 208V, 3 Phase |
| 240V, 3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Vulcan EV12-2FP480 Description
The Vulcan EV12-2FP480 Expando electric range measures just 12 inches wide, making it a space-efficient solution for tight cooklines, satellite stations, or mobile configurations. Despite its compact size, it can address the demands of busy foodservice establishments with its two 9 1⁄2-inch French plates, each powered by a 2-kilowatt heating element. Infinite control switches enable operators to fine-tune burner temperatures based on the application. A 10-inch riser behind the cook surface helps shield surrounding areas from heat and grease, while the enclosed base adds storage space within the footprint of the unit.
The Vulcan EV12-2FP480 range includes a fully MIG welded aluminized steel frame for added durability during repeated use. The unit’s 31-inch-high body brings the cooktop to a comfortable working height, and the removable front panel simplifies access for maintenance. Exterior surfaces—including the front, sides, riser, and legs—are constructed of stainless steel to resist rust and support heavy cleaning. This model stands on 6-inch adjustable stainless steel legs.
- Expando series
- 12-inch-wide French hot plate range
- Stainless steel construction
- Welded aluminized steel frame
- (2) 9 1⁄2-in. French plates
- 2-kW heating elements per burner
- Infinite control switches
- Enclosed base
- Removable front panel
- 10-in. stainless steel riser
- 31-in.-high cook surface
- 6-in. adjustable stainless steel legs
- 12 in. W x 34 in. D x 47 in. H
- 4 kW
- 480 V/60 Hz/1 or 3 ph (convertible phase)
*Image may not depict product color, inclusions or accessories.
*Free shipping on Vulcan EV12-2FP480 within the 48 contiguous states.
- Comparing Commercial Range Configurations
- Learn How to Choose the Right Commercial Range
- Base Options for Commercial Ranges
- Electric vs Induction Ranges
- Cleaning Your Commercial Hood
- Gas vs Electric Ranges
- Range Cleaning and Maintenance Tips
- What is a Commercial Range?
- Choosing the Right Range Configuration
- Commercial Range Repair and Troubleshooting
From The Manufacturer
Expando Range, electric, 12", (2) 2.0 kW 9-1/2" French plates, round, infinite controls, enclosed base, stainless steel front, sides, 10" riser, 6" legs, 480v, NSF, cCSAus
Vulcan EV12-2FP480 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Base | Enclosed |
| Depth (in) | 34 |
| Heat | Electric |
| Height (in) | 47 |
| Hertz | 60 |
| Number of Burners | 2 |
| Number of Ovens | No Oven |
| Phase | 1 |
| Phase | 3 |
| Product | Electric Ranges |
| Product Type | Cooking Equipment |
| Range Configuration | French Hot Plate |
| Rating | Better |
| Series | Expando |
| Voltage | 480 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 12 |
| Weight | 170.00 |
