Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.

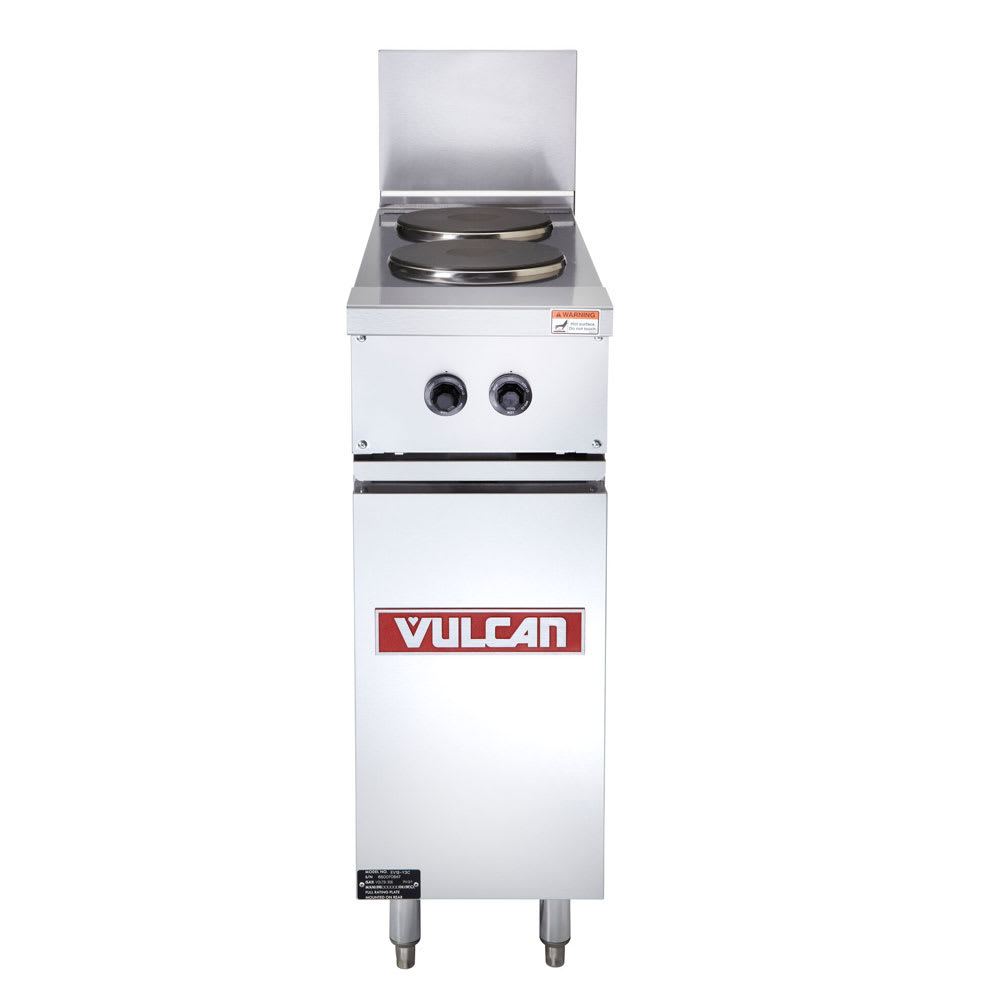

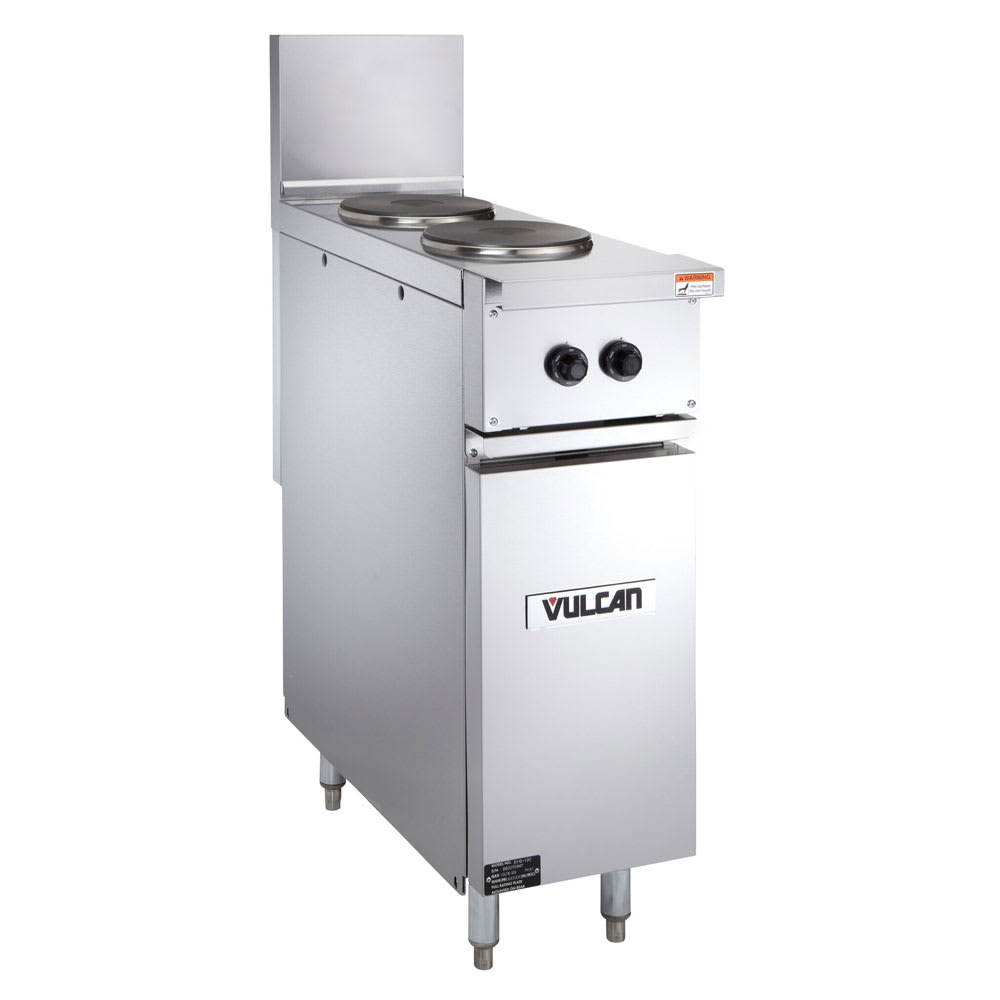

Vulcan EV12-2FP240 12" Expando Electric Range w/ (2) French Hot Plates, 240v/1ph/3ph
Typically ships in 3 - 4 weeks
Free Shipping Item
Retail Price: $9,631.44
$3,965.00 /Each
Selected Voltage: 240V, 3 Phase
| 240V, 3 Phase |
| 208V, 3 Phase |
| 480V, 3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Attention: Order by 06-01-2025 to save before the price increases!
Vulcan EV12-2FP240 Description

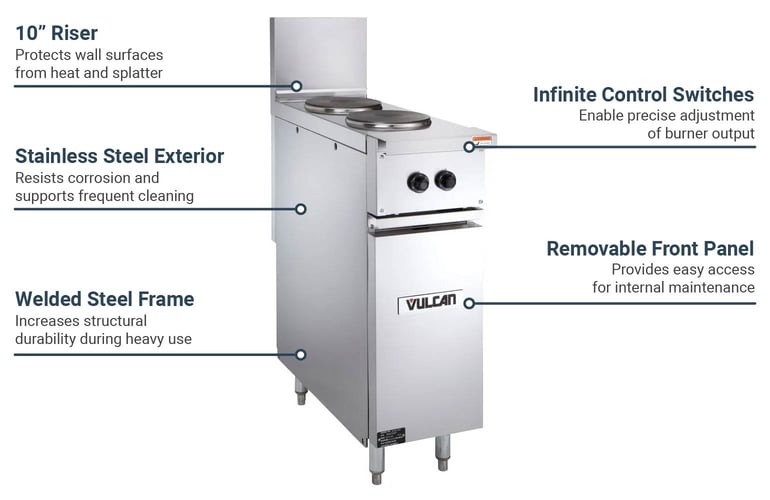

The Vulcan EV12-2FP240 Expando electric range features two 91⁄2-inch round French plates. With infinite control switches for each burner, operators can precisely manage heat levels for a variety of cooking techniques. Its compact 12-inch-wide design is ideal for tight kitchens, and the enclosed base adds convenient storage beneath the cooktop. A 10-inch stainless steel riser behind the cooking surface helps protect nearby walls from grease and heat during operation.
The Vulcan EV12-2FP240 range includes a fully MIG welded aluminized steel frame that enhances structural integrity under heavy use. Its 31-inch-high body raises the cooking surface to a comfortable height, while the removable front panel provides access to internal components for servicing. The exterior is finished in stainless steel—including the front, sides, riser, and legs—for durability and rust resistance. Height-adjustable 6-inch stainless steel legs ensure stability on uneven floors. This unit supports both 1-phase and 3-phase 240-volt electrical connections for flexible installation.
Product Details
- Expando series
- 12-inch-wide French hot plate range
- Stainless steel construction
- Welded aluminized steel frame
- (2) 91⁄2-in. French plates
- Infinite control switches
- Enclosed base
- Removable front panel
- 10-in. stainless steel riser
- 31-in.-high cooking surface
- 6-in. adjustable stainless steel legs
Dimensions & Utilities
- 12 in. W x 34 in. D x 47 in. H
- 4 kW
- 240 V/60 Hz/1 or 3 ph (convertible phase)
Product Features
*Free shipping on Vulcan EV12-2FP240 within the 48 contiguous states.
From The Manufacturer
Expando Range, electric, 12", (2) 2.0 kW 9-1/2" French plates, round, infinite controls, enclosed base, stainless steel front, sides, 10" riser, 6" legs, 240v, NSF, cCSAus
*Image may not depict product color, inclusions or accessories.
1-year Limited Parts & Labor
Vulcan EV12-2FP240 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Base | Enclosed |
| Depth (in) | 34 |
| Heat | Electric |
| Height (in) | 47 |
| Hertz | 60 |
| Number of Burners | 2 |
| Number of Ovens | No Oven |
| Phase | 1 |
| Phase | 3 |
| Product | Electric Ranges |
| Product Type | Cooking Equipment |
| Range Configuration | French Hot Plate |
| Rating | Better |
| Series | Expando |
| Voltage | 240 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 12 |
| Weight | 170.00 |
Documents
Residential Users: This unit is not to be installed or operated in a residential or other non-commercial setting. Check local codes to ensure your foodservice kitchen is properly equipped for this piece. Use in an improper setting will void the warranty and the manufacturer will not provide parts or labor coverage for damage, failure, or other issues with the product. While this product may be covered by a manufacturer's warranty, vendor assumes no liability for product failure or any damages/injuries.
WARNING: Important Prop 65 information for California residents.
