T&S B-0123-U12-CR-B 46 1/16" Deck Mount Pre Rinse Faucet - 1.5 GPM, Base with Nozzle
$670.45 /Each
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Similar Products in Stock Now
T&S B-0123-U12-CR-B Description

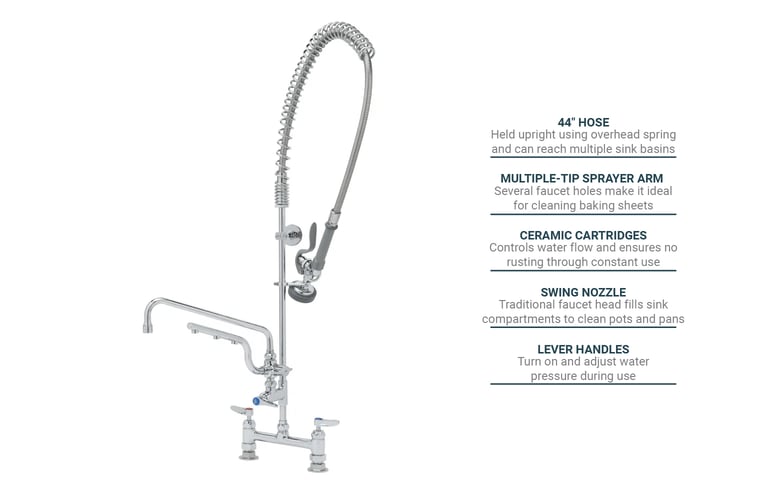

Equipped for a variety of uses, the T&S B-0123-U12-CR-B pre-rinse faucet comes with a traditional 12-inch swing nozzle, a 103/8-inch multiple tip sprayer arm, and a spray valve head attached to a 44-inch stainless steel hose that's kept upright with an overhead spring. All water is regulated using a series of compression cartridges, which are adjusted using spring checks. Additionally, its swing nozzle comes supplied with a stream regulating outlet to keep water flow under control. To control the water flow of both swing nozzles, it utilizes two temperature-regulating lever handles on either side of its eight-inch base.
Great for cleaning baking sheets, its multi-tip sprayer arm can output 1.5 gallons of water per minute across each hole. Alternatively, its spray valve head can output a more high-powered, controlled stream of 1.15 gallons of water per minute. All water flow passes through the unit's two 1/2-inch female inlets located in its base. The unit measures 461/16 inches tall and flaunts a brass body with a polished chrome-plated finish. For added utility, its spray head features a heat-resilient handle, while its body comes with a 6-inch wall bracket and a ring designed to hold its spray head when not in use.
Product Details
- Brass body finished with polished chrome
- Add-on, lever-operated faucet with ceramic cartridge and lever handle
- Stream regulating outlet controlling swing nozzle water pressure
- Multi-tip sprayer arm with 1.5GPM water pressure output
- Stainless steel spray hose with heat-resistant handle
- 1.15-GPM spray valve head attached to spray hose
- Finger hold for spray head when not in use
- Spray valve uses ceramic compression charges with spring checks
- Lever handles for water control
- Wide deck mount held in place with two inlets
- Overhead spring supports spray hose without reducing movement
- Adjustable wall bracket
- 1/2-in. female inlets
Dimensions
- 461/16-in. height
- Wall bracket: 6-in. length
- Swing nozzle: 12-in. length
- Sprayer arm: 103/8-in. length
- Rigid riser: 24-in. length
- Spray hose: 44-in. length
- Deck mount: 8-in. length
Product Features
From The Manufacturer
UltraRinse 8” deck mount mixing faucet with polished chrome plated brass body, add-on faucet with ceramic cartridge and lever handle, 12” swing nozzle with stream regulator outlet, 10 3/8" 1.5 GPM multiple tip sprayer arm, 24” riser, 44” flexible stainless steel hose with heat resistant handle, 1.15 GPM spray valve, compression cartridges with spring checks, lever handles, 1/2" NPT female inlets, 6” adjustable wall bracket, spray valve holder and overhead spring. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 & NSF 372. 2019 DOE PRSV - Class II compliant.
*Image may not depict product color, inclusions or accessories.
T&S B-0123-U12-CR-B Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | T&S |
| Height (in) | 46.06 |
| Mounting Location | Deck |
| Special Features | Low Lead |
| Special Features | Spray Head Hook |
| Special Features | Trigger Ring |
| Type | Base with Nozzle |
| Warranty | 3-year Limited Against Defects in Material & Workmanship; Lifetime Cerama Cartridges |
| Series | UltraRinse |
| Product | Pre-Rinse Faucets |
| Product Type | Commercial Sinks |
| Nozzle Length (in) | 12 |
| Nozzle Type | Standard Swing |
| Hose Length (in) | 44 |
| Centers | 8" |
| GPM | 1.15 |
| Cartridge | Ceramic |
| Inlets | 1/2" Female |
| Weight | 13.24 |
