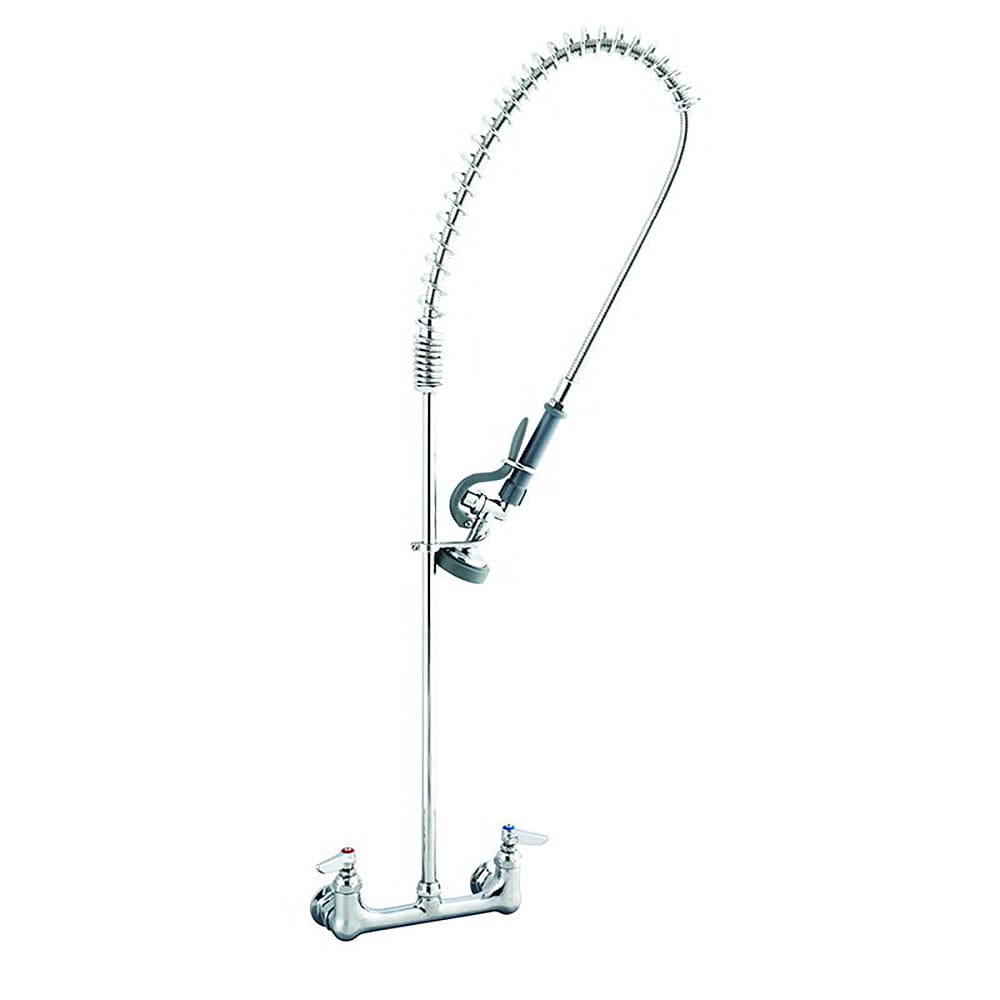

T&S B-0133 EasyInstall Pre-Rinse Unit, 15" Overhang, 8 1/4" Clearance, 18" Riser

Image may not depict product color, inclusions or accessories.

KaTom #: 064-B0133 • MPN: B-0133

IN STOCK: Ships in 1 Business Day

(0 reviews)Write a Review
Retail Price: $543.00
$250.69 / Each

Image may not depict product color, inclusions or accessories.

T&S B-0133 Description


The T&S Brass B-0133 EasyInstall pre-rinse has an 8-inch, wall-mounted mixing faucet with a polished chrome-plated brass body and an overhead support spring that makes the unit great for pre-rinsing in a single or double compartment sink. The 18-inch riser makes installing the unit quick and easy. The 44-inch stainless steel, flexible hose is held by a support spring that keeps it in an upright position even when you pull it down to use. The gray handle on the sprayer is heat resistant so you do not burn yourself. To prevent hot or cold flashes in the water line while you are using the sink, there are spring checks in the Eterna compression cartridges. To make using the T&S Brass B-0133 EasyInstall pre-rinse easier, the lever handles are coded with red and blue indexes so you know which handle will provide hot or cold water.

Product Details

  • Pre-rinse unit that is great for general pre-rinsing in a single or double compartment sink
  • 8-in., wall-mount, polished chrome-plated brass mixing faucet
  • EasyInstall, 18-in. riser for quick installation
  • EasyInstall lock nut and bushing
  • 44-in., flexible, stainless steel hose with a support spring to keep it in place during use
  • Heat-resistant, gray handle on the hose
  • Hold down ring on the hose
  • Finger hook for the hose to rest on when it is not being used
  • 1.42 GPM spray valve allows water to heat up to full temperaturein about 30 seconds
  • Eterna compression cartridges increase or decrease water flow when the handle is moved
  • 14-turn compression on the cartridge spindle
  • Spring checks on the cartridges prevent the cross flow of water
  • Red and blue indexes on the chrome-plated metal lever handles make choosing water temperature easy
  • 12-in. NPT female eccentric inlets with 2-in.-dia. flanges
  • 734-in.-814-in. adjustable centers
  • Overall Dimensions: 12716 in. W x 14116 in. D x 33 38 in. H
  • ASME and CSA Listed; EPA Compliant; NSF Certified

EasyInstall Pre-Rinse Unit, wall mount, base faucet, spring check cartridges & lever handles, 2" diameter flanges with 1/2" NPT female eccentric flanged inlets, 35-1/2"H, 15" overhang, 8-1/4" clearance, 18" riser, spray valve, flex stainless steel hose

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

**Important Prop 65 information for California residents.

Warning Small Important Prop 65 information for California residents.

T&S B-0133 Specifications

PDF Spec Sheet
Manufacturer T&S
Warranty 3 Years
Product Pre-Rinse Faucet
Product Type Commercial Sinks
Weight 11.50
