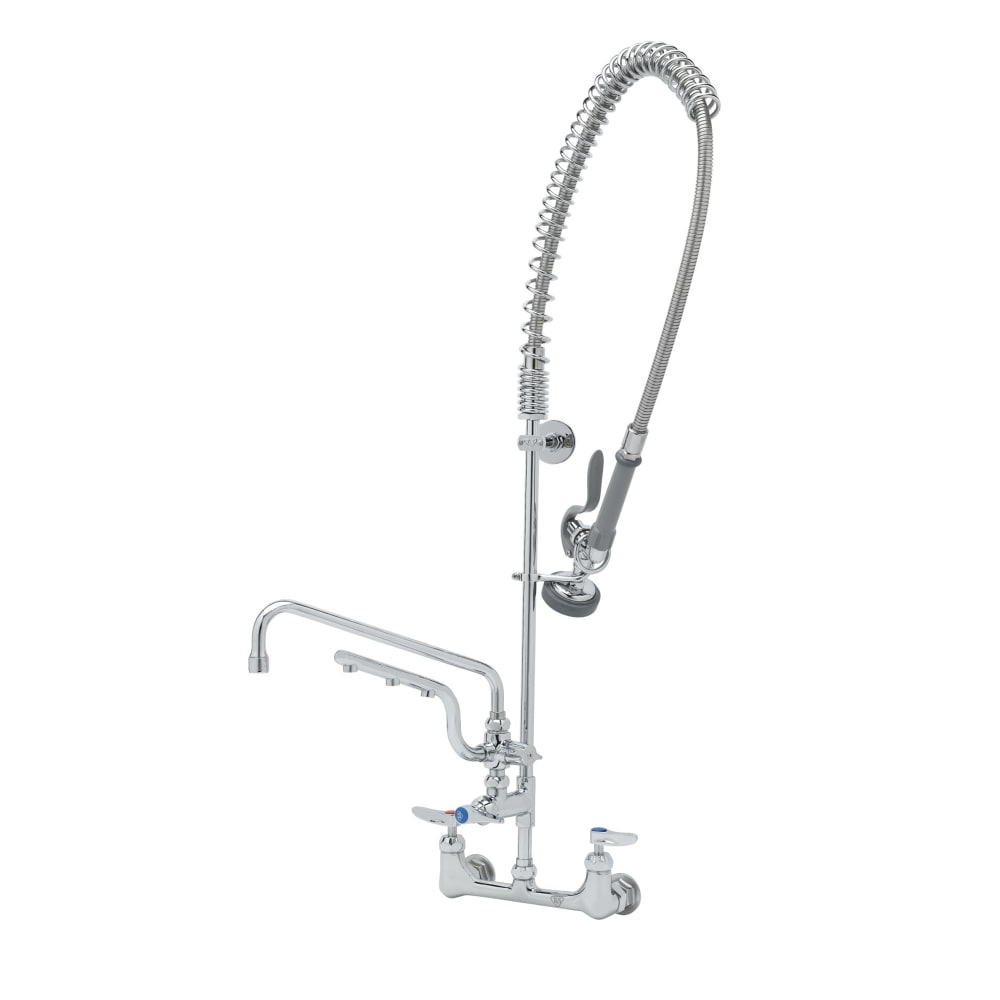

T&S B-0133-U12-CR-B 37 9/16" Wall Mount Pre Rinse Faucet - 1.5 GPM, Base With Nozzle
$650.13 /Each
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Attention: Order by 05-19-2025 to save before the price increases!
Similar Products in Stock Now
T&S B-0133-U12-CR-B Description

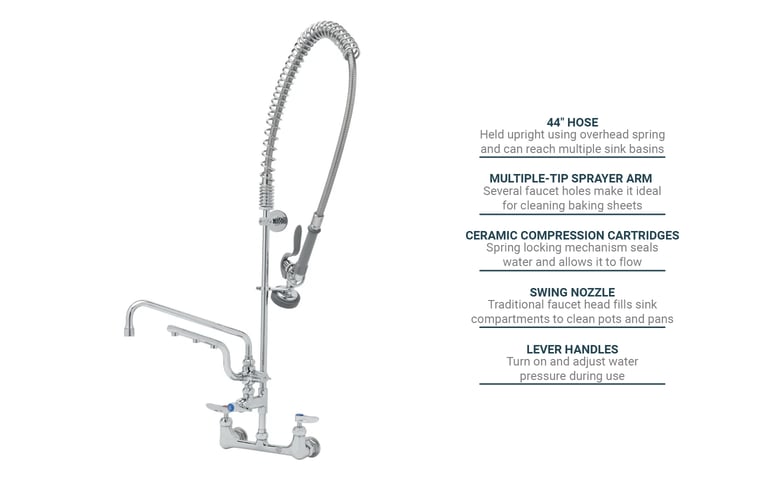

The T&S B-0133-U12-CR-B pre-rinse faucet is built with versatility in mind, as it's supplied with a normal 12-inch swing nozzle, a 10-inch three-tipped sprayer arm, and a 44-inch stainless steel hose with a 1.15-GPM valve sprayer head. Water pressure and temperature for its swing nozzle and multiple-tip spray arm are operated with two lever handles, each of which feature a ceramic cartridge; the swing nozzle also comes equipped with a stream regulator for additional control. The spray valve head, also controlled using compression cartridges, comes with a temperature-resilient handle to regulate or maximize water flow. Its stainless steel hose is held upright using an overhead spring, and after use, the valve head can be suspended on the holding ring for storage. Alternative to the swing arms, the hose utilizes a compression cartridge held in check with springs. The faucet is held to the wall using an 8-inch mount, each equipped with a 1/2-inch female inlet. The whole unit has a height of 3714/25 inches and comes with a 6-inch adjustable wall bracket for added support. The faucet's body is constructed of brass and is plated with polished chrome for an elegant look that resists various forms of corrosion.
Product Details
- Polished chrome plating along brass body
- Add-on faucet with lever handle and ceramic cartridge
- Swing nozzle controlled by stream regulator
- Multi-tip spray arm releases water at a rate of 1.5 GPM
- Stainless steel spray hose utilizes flexible design
- Heat-resistant handle for spray hose
- 1.15 GPM spray valve head attached directly to hose
- Holding ring for spray head
- Spray valve uses compression cartridges with spring checks
- Lever handles simplify control of water pressure
- Wide wall mount connects to wall at two points
- Overhead spring keeps spray hose up right
- Wall bracket features adjustable design
- 1/2-in. female inlets
Dimensions
- 379/16-in. height
- Wall bracket: 6-in. length
- Swing nozzle: 12-in. length
- Sprayer arm: 10-in. length
- Rigid riser: 18-in. length
- Spray hose: 44-in. length
- Deck mount: 8-in. length
Product Features
*T&S B-0133-U12-CR-B is free shipping eligible. Users must be signed in with an order total greater than $500 and be shipping to the 48 contiguous states.
From The Manufacturer
UltraRinse 8” wall mount mixing faucet with polished chrome plated brass body, add-on faucet with ceramic cartridge and lever handle, 12” swing nozzle with stream regulator outlet, 10" 1.5 GPM multiple tip spray arm, 18” riser, 44” flexible stainless steel hose with heat resistant handle, 1.15 GPM spray valve, compression cartridges with spring checks, lever handles, 1/2" NPT female inlets, 6” adjustable wall bracket, spray valve holder and overhead spring. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 & NSF 372. 2019 DOE PRSV - Class II compliant.
*Image may not depict product color, inclusions or accessories.
T&S B-0133-U12-CR-B Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | T&S |
| Cartridge | Ceramic |
| Faucet Centers (in) | 8 |
| GPM | 1.15 |
| Height (in) | 37.56 |
| Hose Length (in) | 44 |
| Inlets | 1/2" Female |
| Mounting Location | Wall |
| Nozzle Length (in) | 12 |
| Nozzle Type | Standard Swing |
| Product | Pre-Rinse Faucets |
| Product Type | Commercial Sinks |
| Rating | Better |
| Series | UltraRinse |
| Special Features | Low Lead |
| Special Features | Spray Head Hook |
| Special Features | Trigger Ring |
| Type | Base with Nozzle |
| Warranty | 3-year Limited Against Defects in Material & Workmanship; Lifetime Cerama Cartridges |
| Weight | 15.05 |
