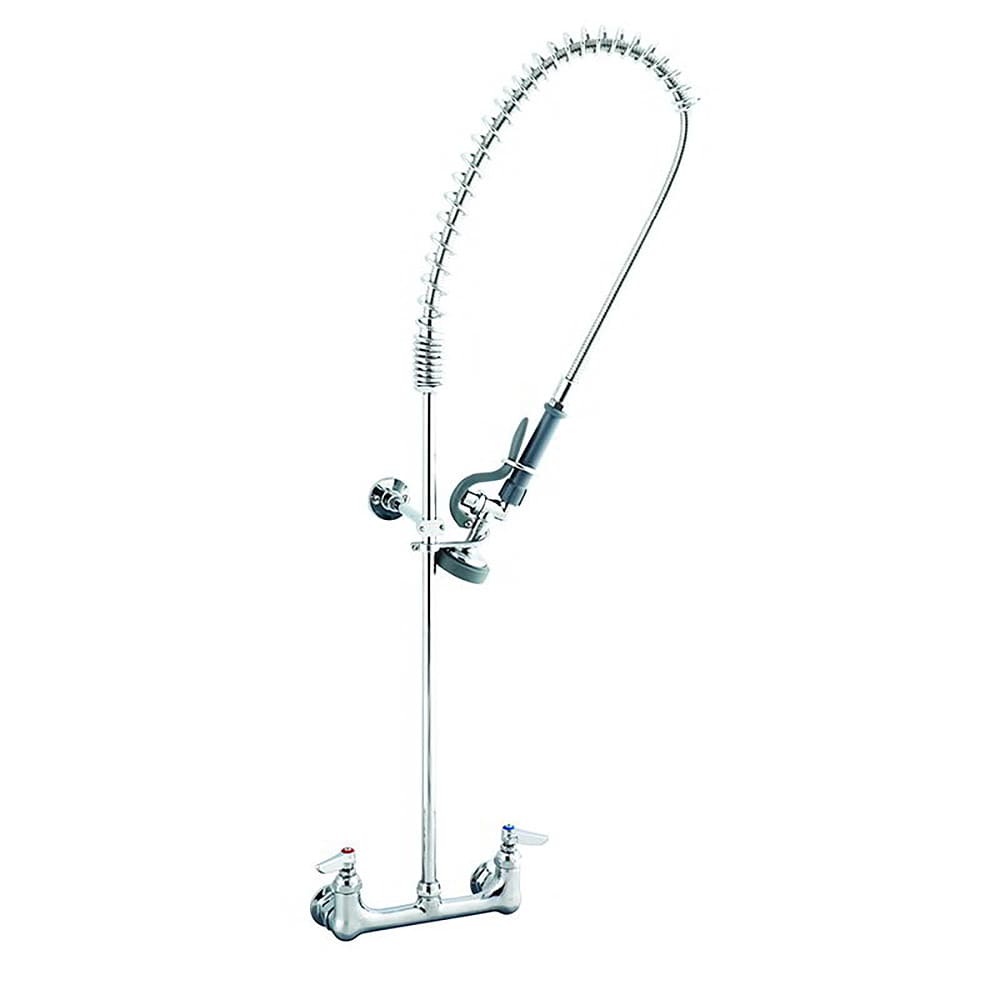

T&S B-0133-B 33 3/8" H Wall Mount Pre Rinse Faucet - 1 3/20 GPM, Base with Nozzle

Equipped with a B-0100 hose barrel washer, the T&S B-0133-B pre-rinse unit has a 1.15 GPM spray valve and number 27 washer. There is a hold down ring for the spray valve, and the grip on the handle eases operator handling. To enhance user experience, its 44-inch flexible stainless steel hose is constructed with a heat-resistant handle, while the overhead spring is quick to install.

When not in use, this unit's spring body can keep it elevated above the sink and out of the way. There is a 6-inch wall bracket and finger hook, which holds the nozzle in place so that it can be grabbed and used later. Its press-in blue and red button indexes denote cold and hot water temperatures. To control the water flow, this unit has a quarter-turn Eterna cartridge, which houses a metal spindle that travels up and down as the faucet handle is manipulated.

Product Details

• Spray valve with 1.15 GPM
• No. 27 washer
• Hold down ring for spray valve
• Grip handle
• B-0100 hose barrel washer
• 44-in. flexible stainless steel hose with a handle that resists heat
• Overhead spring is convenient to install
• Spring body
• 6-in. wall bracket
• Finger hook
• Includes kit for quick install
• Anti-rotation star washer
• Press-in blue and red button index on lever handles
• Quarter-turn Eterna cartridge with spring check to control water flow
• 1⁄2-in. NPT female eccentric flange
• Width adjustable from 7 3⁄4 in. to 8 1⁄4 in.
• Overall dimensions: 12 5⁄8 in. W x 14 1⁄16 in. D x 33 3⁄8 in. H
