T&S B-0123-U12-B 46" Deck Mount Pre Rinse Faucet - 1.5 GPM, Base with Nozzle
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Similar Products in Stock Now
T&S B-0123-U12-B Description
Utilizing a deck-mount design, the T&S B-0123-U12-B pre-rinse faucet has an 8-inch base that connects to an establishment's water supply with two 1/2-inch female inlets. To control water pressure and temperature, the unit comes equipped with two temperature levers and a series of compression cartridges controlled by springs. Meant for a variety of uses, it's equipped with a spray valve head attached to a 44-inch stainless steel hose and two different swinging faucets: one 12-inch swing nozzle and one 101/2-inch multi-tip sprayer arm with three spray holes.
Its sprayer arm on the T&S B-0123-U12-B has a maximum output of 1.5 gallons per minute, while its swing nozzle comes equipped with a stream regulating lever. The spray hose is held upright with a stainless steel spring and comes with a finger ring attached to its riser, creating a simple holster for its spray head for storage. The 1.15-gallon-per-minute spray valve head regulates its water using a heat-resistant handle to protect hands. Its body is constructed of brass and finished in polished chrome plating. After installation, it measures 46 inches high, and to keep the unit stable while in use, it comes with a 6-inch wall bracket.
Product Details
- Brass body protected with polished chrome finish
- Add-on lever-operated faucet with compression cartridge
- Stream regulated swing nozzle
- Multi-tip sprayer arm with 1.5-GPM output
- Flexible stainless steel spray hose
- Heat-resistant handle
- 1.15 GPM spray valve head on spray hose
- Hose head held in place with finger hold
- Compression cartridges with spring checks
- Wide deck mount adds support
- Overhead spring supports spray hose without constricting movement
- Wall bracket for added support
- 1/2-in. female inlets
Dimensions
- 46-in. height
- Wall bracket: 6-in. length
- Swing nozzle: 12-in. length
- Sprayer arm: 103/8-in. length
- Rigid riser: 24-in. length
- Spray hose: 44-in. length
- Deck mount: 8-in. length

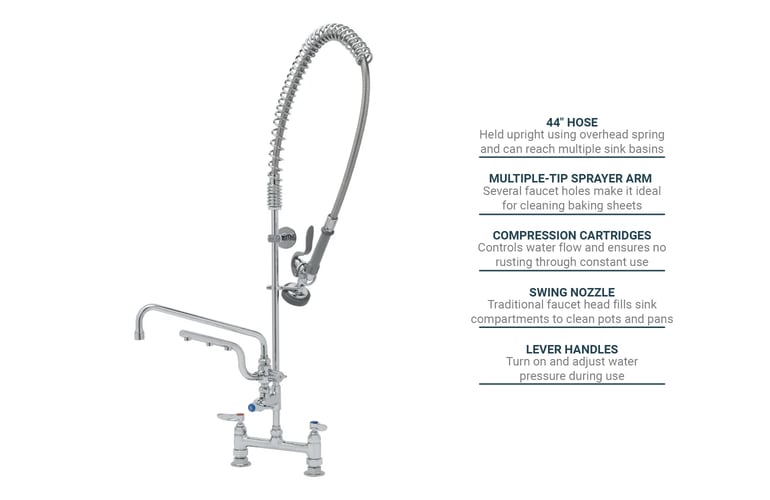

Product Features
From The Manufacturer
UltraRinse 8” deck mount mixing faucet with polished chrome plated brass body, add-on faucet with compression cartridge and lever handle, 12” swing nozzle with stream regulator outlet, 10 3/8" 1.5 GPM multiple tip sprayer arm, 24” riser, 44” flexible stainless steel hose with heat resistant handle, 1.15 GPM spray valve, compression cartridges with spring checks, lever handles, 1/2" NPT female inlets, 6” adjustable wall bracket, spray valve holder and overhead spring. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 & NSF 372. 2019 DOE PRSV - Class II compliant.
*Image may not depict product color, inclusions or accessories.
T&S B-0123-U12-B Specifications
Spec Attribute | Spec Value |
---|---|
Manufacturer | T&S |
Height (in) | 46 |
Mounting Location | Deck |
Special Features | Low Lead |
Special Features | Spray Head Hook |
Special Features | Trigger Ring |
Type | Base with Nozzle |
Warranty | 3-year Limited Against Defects in Material & Workmanship |
Series | UltraRinse |
Product | Pre-Rinse Faucets |
Product Type | Commercial Sinks |
Nozzle Length (in) | 12 |
Nozzle Type | Standard Swing |
Hose Length (in) | 44 |
GPM | 1.15 |
Cartridge | Eterna |
Inlets | 1/2" Female |
Faucet Centers (in) | 8 |
Weight | 13.24 |
