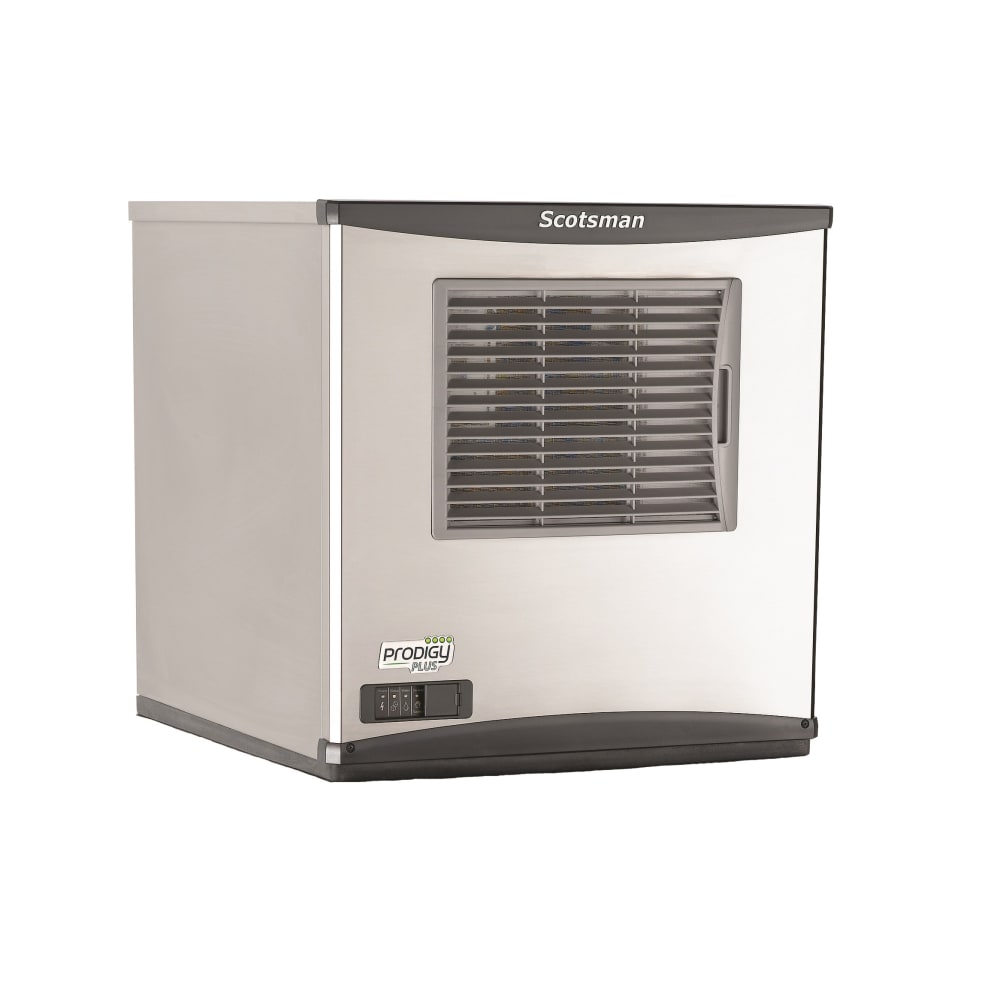

Scotsman NS0422AX-1 22" Prodigy Plus® Nugget Ice Machine Head w/ Filter - 430 lb/24 hr, Air Cooled, 115v/1ph
QUICK SHIP: Typically ships in 1 - 3 Business Days
Retail Price: $11,961.00
$4,904.00 /Each
Selected Compressor Type: Air Cooled
Selected Ice Type: Soft Nugget
Scotsman NS0422AX-1 Description
Producing as much as 430 pounds of ice per day in optimal conditions, the Scotsman NS0422AX-1/AP1-P Prodigy Plus™ ice machine head supplies soft, chewable nugget ice—excellent for chilling soft drinks and sweet tea. Its stainless steel exterior, auger, and evaporator make this ice machine durable against rust, scratches, and dents for long-term use. For sanitary operation between cleanings, this unit features antimicrobial treatment that prevents bacteria, mold, and mildew growth. Its front-breathing design and removable, front-accessible air filter mean this unit needs no side clearance. The AP1-P water filter is included with this unit.
The Scotsman NS0422AX-1/AP1-P Prodigy Plus nugget ice machine head features integrated indicator lights and a unit-specific QR code for streamlined troubleshooting, simplifying maintenance. Requiring minimal user labor, this unit has one-touch cleaning operation, and its bearings are sealed to ensure smooth movement for a lifetime of use. Because the refrigeration system is self-contained, no separate condenser or additional coolant lines are needed to operate this ice maker.
- Air cooled
- Produces nugget ice
- Original Chewable Ice® is good for chilling soft drinks
- 430-lb. maximum daily ice production
- Condenser is self-contained for simple operation
- Front breathing for zero side clearance
- Bearings are sealed to maintain smooth use
- Built with AutoAlert™ indicator lights
- Resists microbial contamination with AgION™ enhancement
- Unit-specific QR code for improved maintenance
- Removable air filter accessible from the front
- Stainless steel auger and evaporator for extended operation
- Labor is reduced with simple, 1-touch cleaning
- Stainless steel finish
- Uses R290 refrigerant
- AP1-P water filter included
- Ideal ambient air temperature: 50-100 degrees F
- Ideal incoming water temperature: 40-100 degrees F
- Ideal incoming water pressure: 20-80 PSI
- Heat displacement: 5,000 BTU
- 22 in. W x 24 in. D x 23 in. H
- 12.9 A
- 115 V/60 Hz/1ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Scotsman NS0422AX-1 within the 48 contiguous states.
From The Manufacturer
Prodigy Plus® Ice Maker, nugget style, Original Chewable Ice®, air-cooled, self-contained condenser, production capacity up to 430 lb/24 hours at 70°/50° (327 lb AHRI certified at 90°/70°), sealed maintenance-free bearings, AutoAlert™ indicating lights, front facing removable air filter, unit specific QR code, stainless auger and evaporator, one-touch cleaning, stainless steel finish, AgION™ antimicrobial protection, R290 refrigerant, 115v/60/1-ph, NSF, cULus
AquaPatrol™ Plus Water Filtration System, single system, 2.1 gallons per minute max flow, designed for cubers up to 650 lb, and for flakers, nuggets & nugget dispensers up to 1,200 lb, cULus, NSF
Watch a video about this product
Scotsman NS0422AX-1 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Scotsman |
| 24 Hr. Production (lb) | 430 |
| Also Known As | NS0422A-1 |
| Compressor Type | Air Cooled |
| Depth (in) | 24 |
| Height (in) | 27 |
| Ice Type | Nugget |
| Includes | AP1-P Filtration |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Prodigy Plus® |
| Special Features | Inline Water Filter Included |
| Special Features | Sealed, Maintenance-Free Bearings |
| Special Features | The Original Chewable Ice® |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | Commercial: 3-year Parts & Labor; 5-year Compressor Parts; Residential: 1-year Parts & Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 22 |
| Weight | 172.00 |
