Hoshizaki F-450MAJ-C 22" Nugget Ice Machine Head - 412 lb/24 hr, Air Cooled, 115v/1ph

In a 24-hour period, the Hoshizaki F-450MAJ-C ice machine head can produce 412 pounds of ice if ambient air is 70 degrees Fahrenheit and incoming water is 50 degrees Fahrenheit. It makes cubelet ice—also referred to as nugget ice—which works well in most restaurants since it is a customer favorite. The condenser motor in this unit is air cooled, using fans to cool the components so water can get cold enough to freeze.

Every hour, the unit runs a 2-second flush cycle to remove sediment from the ice and ensure it is clean. A sensor just below the Hoshizaki F-450MAJ-C commercial ice maker measures ice in the bin—which is sold separately—with an infrared beam, ensuring there is always ice available without overflow. The components in this unit are accessible behind a panel for cleaning and servicing, while the air filter can be removed and cleaned thoroughly to prevent issues from arising.

Note: This unit must be paired with an ice maker bin or ice dispenser.

Product Details

• 412-lb. daily ice production capacity
• 316-lb. AHRI-certified daily ice production capacity

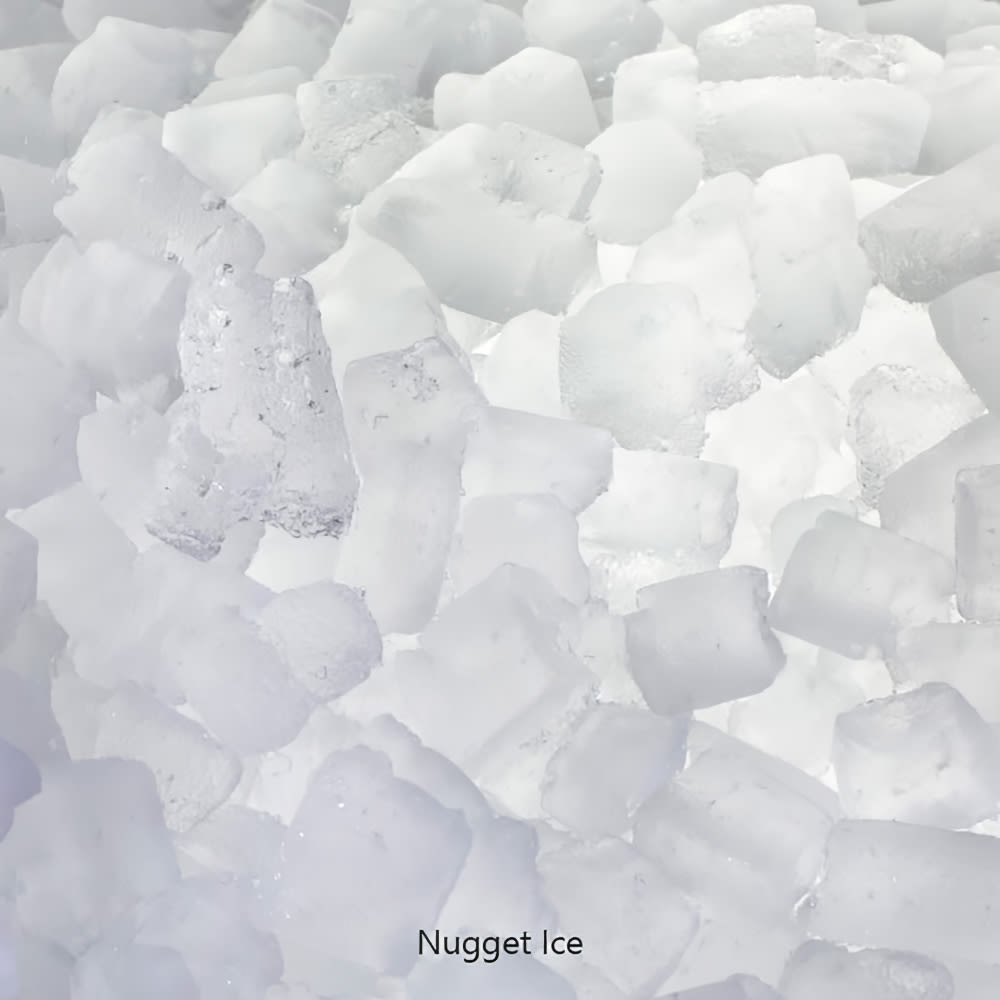

• Makes chewable nugget ice
• Nugget ice size: ¹⁄₄-⁵⁄₈ in. x ¹⁄₂ in. x ³⁄₈ in.
• Air-cooled condenser
• CleanCycle24™ technology uses a 2-sec. flush cycle every hour to remove sediment, ensuring ice is clean and clear
• Infrared bin control measures how much ice is in the bin to maintain an ideal level without overflow
• Stainless steel exterior construction provides strength and eases cleaning
• Panels can be removed for component access and maintenance
• Removable, cleanable air filter
• Uses R404A refrigerant
• Ideal ambient air temperature: 45-100 degrees F
• Ideal incoming water temperature: 45-90 degrees F
• Ideal incoming water temperature: 10-113 PSI
• Ideal clearances: 6 in. at rear and sides; 24 in. at top
• Ice storage bin is sold separately (not compatible with dispensers)

Dimensions & Utilities

• 22 in. W x 27³⁄₈ in. D x 22 in. H
• 10.8 A, 6.1 kW
• 115 V/60 Hz/1 ph

Product Features

*Free shipping on Hoshizaki F-450MAJ-C within the 48 contiguous states.

From The Manufacturer

Ice Maker, Cubelet-Style, 22"W, air-cooled, self-contained condenser, production capacity up to 412 lb/24 hours at 70°/50° (316 lb AHRI certified at 90°/70°), stainless steel finish, compressed cubelet style ice, Advanced CleanCycle24™, R-404A refrigerant, 115v/60/1-ph, 10.8 amps, NSF, UL

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Compressor & Condenser Parts

Hoshizaki F-450MAJ-C Specifications

A Japan-based brand that started as a electric company in the 1940s, Hoshizaki has developed into one of the world's leading ice maker producers. Built around sustainable products and innovation, they strive to be an evolving company that creates original products to satisfy their customers. They also manufacture refrigerators, prep tables, and freezers, and more.
