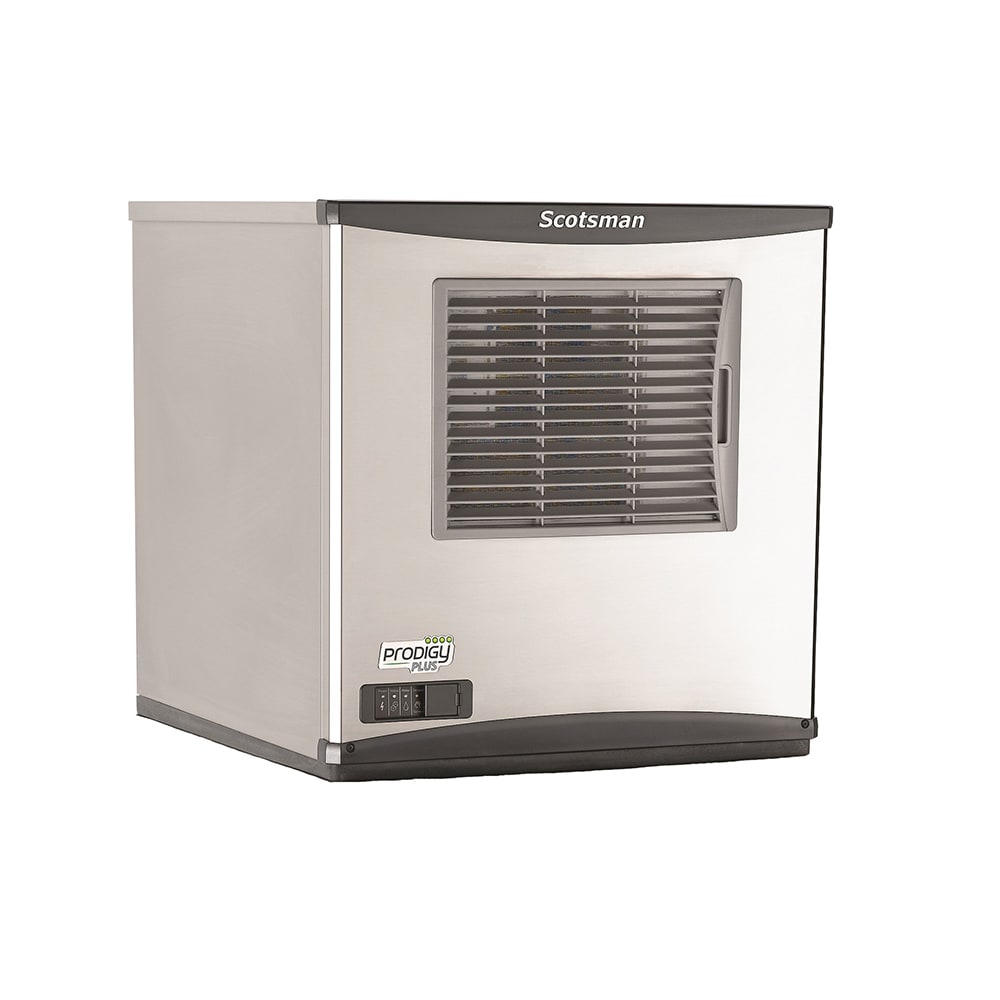

Scotsman NH0422A-1 22" Prodigy Plus® Nugget Ice Machine Head - 456 lb/24 hr, Air Cooled, 115v/1ph

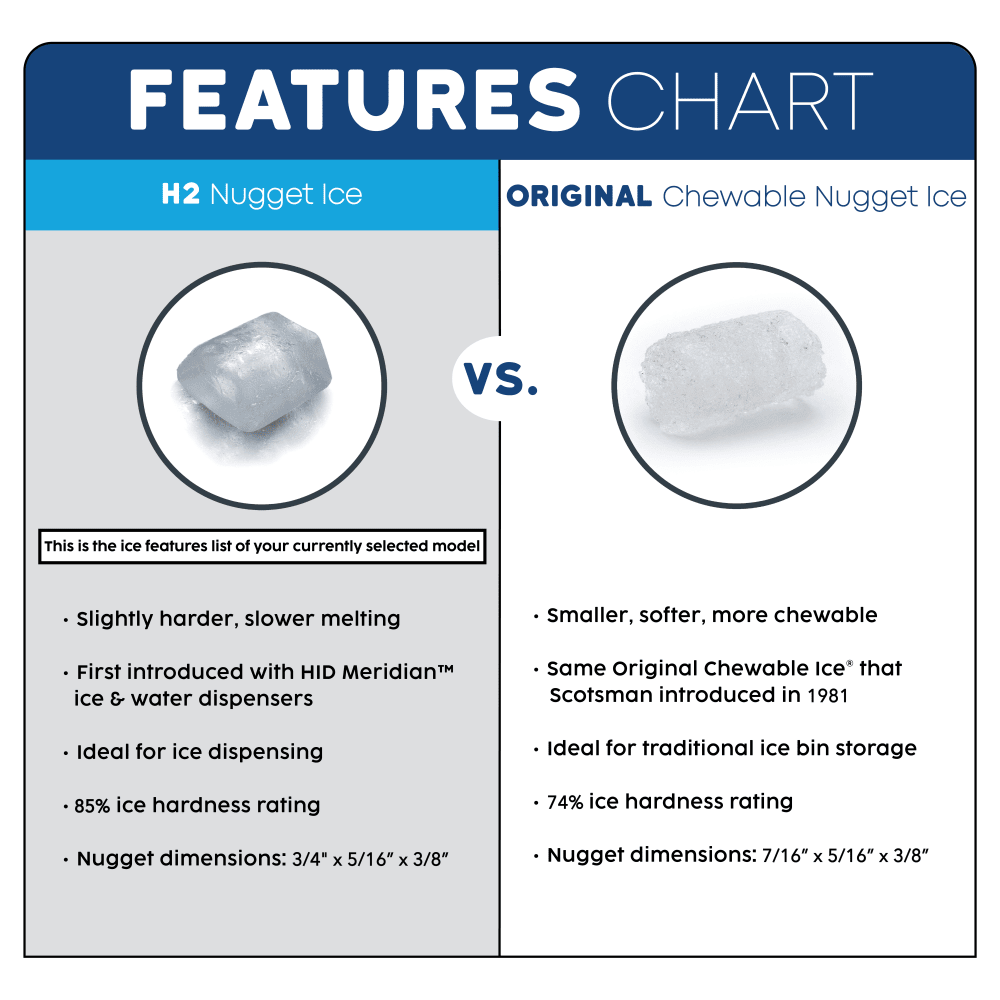

This air-cooled Scotsman NH0422A-1 Prodigy Plus® ice machine head uses R-404A refrigerant to produce a maximum of 456 pounds of ice in 24 hours when ambient air is 70 degrees Fahrenheit and incoming water is 50 degrees Fahrenheit. Its H² nugget ice is harder than original chewable nugget ice and is ideal for cooling soft drinks or lemonade. Its sealed self-contained refrigeration system helps prevent airborne particulate contamination, while its auger and evaporator's durable, corrosion-resistant stainless steel construction is capable of withstanding long-term use.

AgION™ antimicrobial protection is built into the Scotsman NH0422A-1 ice maker head's key components to slow bacterial growth between cleanings. The unit's front panel is removable, providing direct access to internal parts for servicing and maintenance. For flexible installation, it has front-breathing design that doesn't require side clearance. To further ease cleaning, this unit features AutoAlert™ indicator lights that signal when it's time to descale or sanitize while increasing visibility. Overall, this unit measures 22 inches wide by 24 inches deep by 23 inches high and fits atop an ice bin, which is sold separately.

Product Details

• 456-lb. daily ice production
• 333-lb. AHRI-certified daily ice production

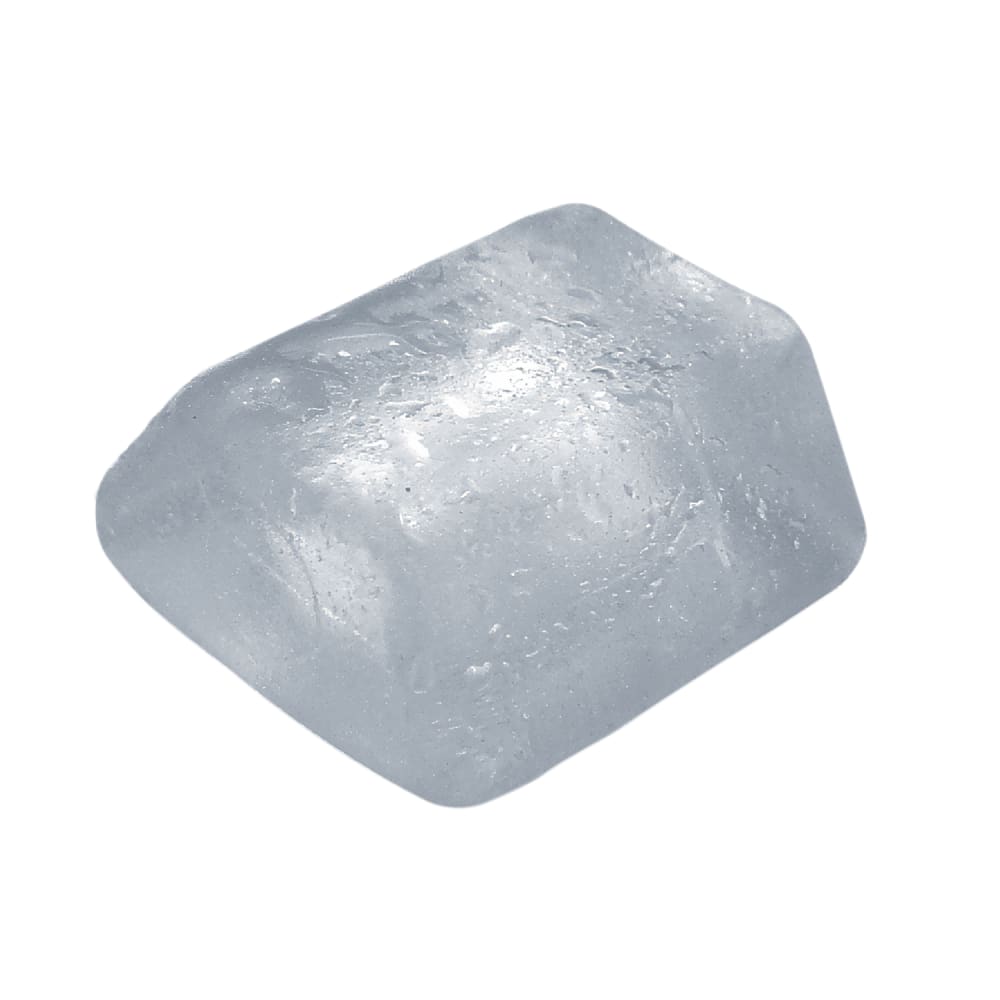

• Makes hard H² nugget ice
• Stainless steel finish
• Air-cooled, self-contained condenser
• R-404A refrigerant
• Front-breathing design
• Stainless steel auger and evaporator
• Sealed, low-maintenance bearings
• AutoAlert™ indicating lights
• Antimicrobial protection built into internal components
• 1-touch cleaning mechanism
• Removable, front-facing air filter
• Must be used with an ice bin (sold separately)
• Unit-specific QR code
• Required operating air temperature: 50-100 degrees F
• Required operating water temperature: 40-100 degrees F
• Required operating water pressure: 20-80 PSIG
• 5,000 BTU per hour

Dimensions & Utilities

• Overall: 22 in. W x 24 in. D x 23 in. H
• 12.9 A, 6.08 kW
• 115 V/60 Hz/1 ph

Product Features

*Free shipping on Scotsman NH0422A-1 within the 48 contiguous states.

From The Manufacturer

Prodigy Plus® Ice Maker, nugget style, H2 Nugget Ice, air-cooled, self-contained condenser, production capacity up to 456 lb/24 hours at 70°/50° (333 lb AHRI certified at 90°/70°), sealed maintenance-free bearings, AutoAlert™ indicating lights, front facing removable air filter, unit specific QR code, stainless auger and evaporator, one-touch cleaning, stainless steel finish, AgION™ antimicrobial protection, R-404A refrigerant, 115v/60/1-ph, 12.9 amps, NSF, cULus, engineered and assembled in USA

*Image may not depict product color, inclusions or accessories.

Commercial: 3-year Parts & Labor; 5-year Compressor Parts; Residential: 1-year Parts & Labor

Scotsman NH0422A-1 Specifications

Scotsman offers one of the largest selections of commercial and residential ice makers. It has innovated the industry and provided customer-friendly service since the 1950s. Scotsman is a major global player with distributors and service agents in more than 100 countries.

Documents

Spec Sheet

Warranty

Parts Breakdown

Manual

Brochure
