Scotsman NH0422WX-1 22" Prodigy Plus® Nugget Ice Machine Head w/ Filter - 444 lb/24 hr, Water Cooled, 115v/1ph
Typically ships in 1 - 3 Business Days
Retail Price: $12,211.00
$5,006.00 /Each
Selected Compressor Type: Water Cooled
Selected Ice Type: Hard Nugget
Scotsman NH0422WX-1 Description
For installation atop an ice bin, this Scotsman NH0422WX-1/AP1-P Prodigy Plus® ice maker measures 22 7⁄10 inches wide by 24 23⁄25 inches deep by 23 inches high and has a self-contained, water-cooled condenser. To withstand heavy-duty, long-term use, the evaporator and auger are stainless steel—a rigid, corrosion-resistant metal—and the unit has a stainless steel finish that creates a sleek look. AgION™ antimicrobial protection is built into internal components to slow bacterial growth between cleanings.

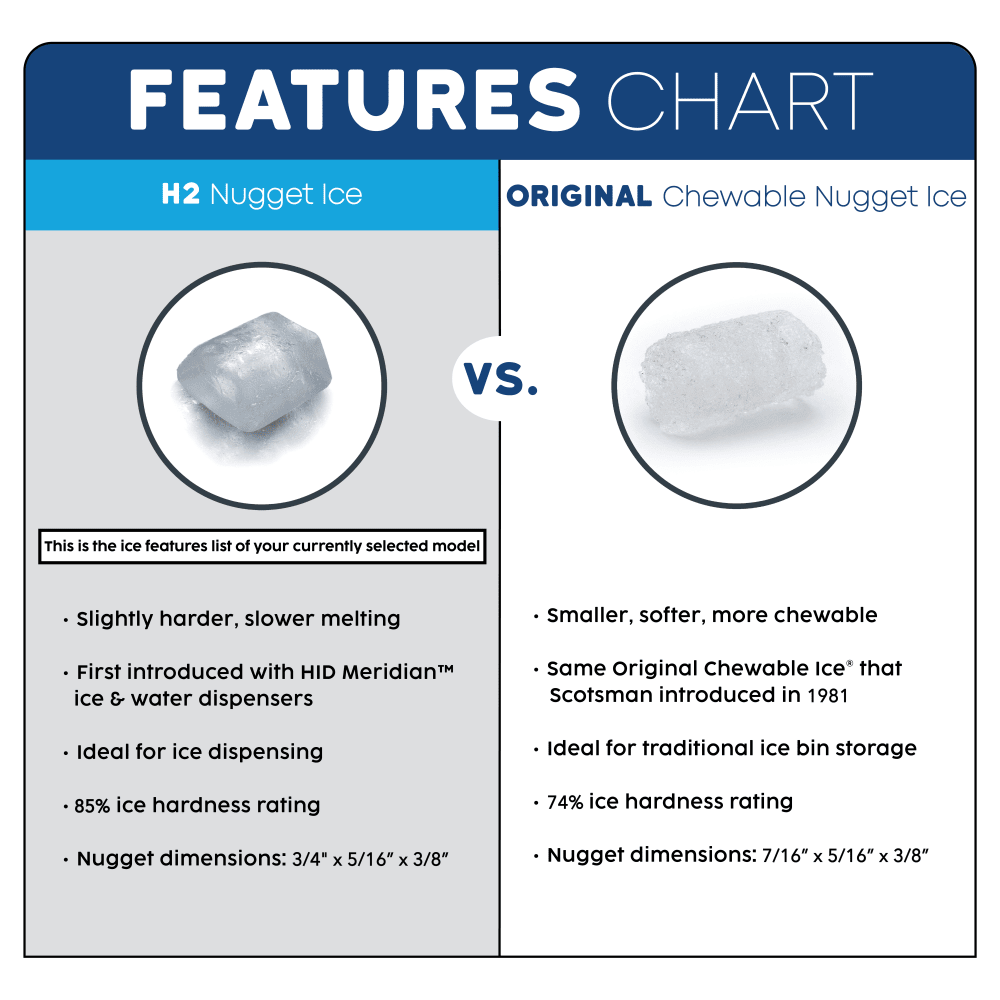

The Scotsman NH0422WX-1/AP1-P ice machine head produces 444 pounds of H2 nugget ice in 24 hours when incoming water is 50 degrees Fahrenheit and ambient air is 70 degrees Fahrenheit. H2 nugget ice has a harder consistency than original chewable ice and is ideal for fast food beverages because it has a greater drink displacement than dice cubes. This water-cooled unit uses R290 refrigerant, and its sealed refrigeration system helps protect product from airborne particulate contamination. AutoAlert™ indicator lights are built into a visible location so operators can track status and maintenance requirements. The AP1-P water filter is included with this unit.
- Compatible with an ice bin (sold separately)
- 444-lb. daily ice production

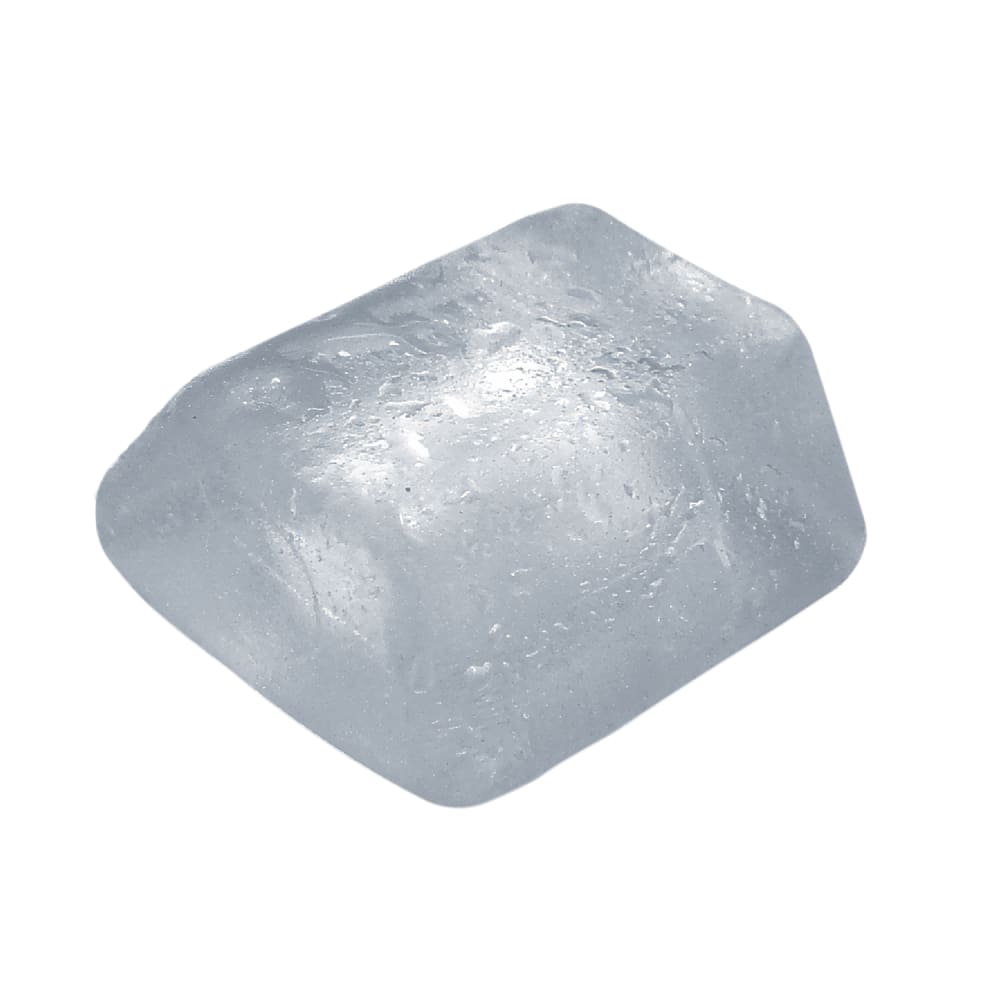

- Produces H2 nugget ice
- Ice dimensions: 3⁄4 in. x 5⁄16 in. x 3⁄8 in.
- Self-contained, water-cooled condenser
- R290 refrigerant
- AP1-P water filter included
- Front-breathing configuration
- Stainless steel auger and evaporator resist corrosion
- Stainless steel finish
- Low-maintenance bearings are sealed
- Sealed refrigeration system
- AutoAlert™ lights
- AgION antimicrobial protection
- 1-touch cleaning system
- Removable, front-facing air filter
- Includes unit-specific QR code
- Required operating air temperature: 50-100 degrees F
- Required operating water temperature: 40-100 degrees F
- Required operating water pressure: 20-80 PSIG
- 5,000 BTU per hour
- 22 7⁄10 in. W x 24 23⁄25 in. D x 23 in. H
- 12.1 A, 3.92 kW
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Scotsman NH0422WX-1 within the 48 contiguous states.
From The Manufacturer
Prodigy Plus® Ice Maker, nugget style, H2 Nugget Ice, water-cooled, self-contained condenser, production capacity up to 444 lb/24 hours at 70°/50° (287 lb AHRI certified at 90°/70°), sealed maintenance-free bearings, AutoAlert™ indicating lights, unit specific QR code, stainless auger and evaporator, one-touch cleaning, stainless steel finish, AgION™ antimicrobial protection, R290 refrigerant, 115v/60/1-ph, NSF, cULus
AquaPatrol™ Plus Water Filtration System, single system, 2.1 gallons per minute max flow, designed for cubers up to 650 lb, and for flakers, nuggets & nugget dispensers up to 1,200 lb, cULus, NSF
Watch a video about this product
Scotsman NH0422WX-1 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Scotsman |
| 24 Hr. Production (lb) | 444 |
| Also Known As | NH0422W-1 |
| Compressor Type | Water Cooled |
| Depth (in) | 24 |
| Height (in) | 23 |
| Ice Type | Nugget |
| Includes | AP1-P Filtration |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Prodigy Plus® |
| Special Features | H2 Harder Nugget Ice |
| Special Features | Inline Water Filter Included |
| Special Features | Sealed, Maintenance-Free Bearings |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | Commercial: 3-year Parts & Labor; 5-year Compressor Parts; Residential: 1-year Parts & Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 22 |
| Weight | 172.00 |
