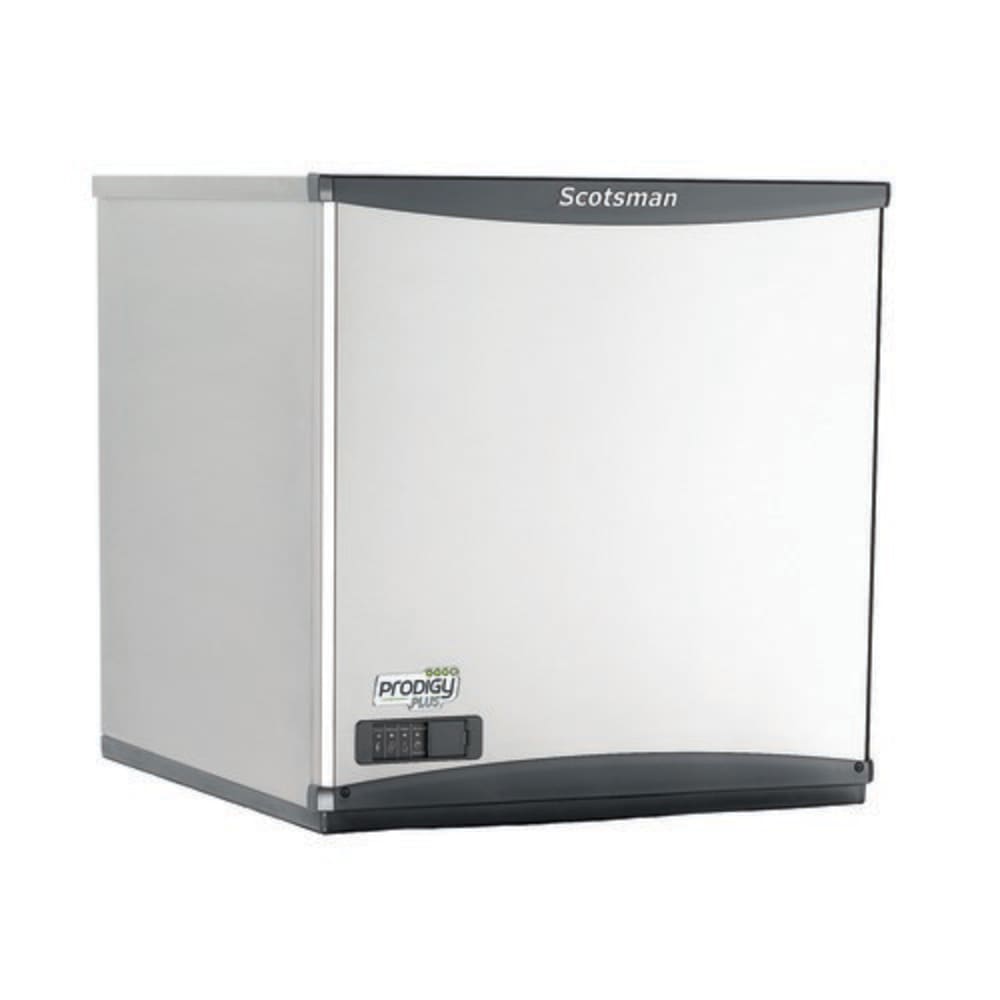

Scotsman NS0422W-1 22" Prodigy Plus® Nugget Ice Machine Head - 455 lb/24 hr, Water Cooled, 115v/1ph

The Scotsman NS0422W-1 nugget ice machine head operates with a water-cooled condenser that is self-contained to streamline installation. It cools with R404A refrigerant and produces a maximum of 455 pounds of ice per day; if conditions aren't ideal, it makes closer to 397 pounds of ice daily. Guests enjoy chewing this nugget ice after finishing their beverage. This unit operates with sealed bearings that require no maintenance, and its evaporator and auger are made of rust-resistant stainless steel.

For durability, the Scotsman NS0422W-1 ice maker has a stainless steel finish. It comes with a unit-specific QR code that can be scanned to reveal warranty information and service manuals. Cleaning can be performed at the touch of a button, and to slow the growth of bacteria, this unit is protected by AgION™ antimicrobial.

Product Details

• Part of the Prodigy Plus® series
• 455-lb. maximum daily ice production
• 397-lb. AHRI-certified daily ice production
• Makes Original Chewable Ice®
• Ice dimensions: ⁷⁄₁₆ in. x ⁵⁄₁₆ in. x ³⁄₈ in.
• Water-cooled, self-contained condenser
• Maintenance-free bearings sealed for protection
• AutoAlert™ indicating lights
• QR code is unit specific
• Evaporator and auger made of stainless steel
• 1-touch cleaning
• Durable stainless steel finish
• Protected with AgION antimicrobial
• Cools with R404A refrigerant
• Ideal incoming air temperature: 50-100 degrees F
• Ideal incoming water temperature: 40-100 degrees F
• Ideal incoming water pressure: 20-80 PSIG
• 5,000-BTU heat transfer capacity

Product Features

Dimensions & Utilities

• 22⁹/₁₀ in. W x 24 in. D x 23 in. H
• 12.1 A
• 115 V/60 Hz/1 ph

*Free shipping on Scotsman NS0422W-1 within the 48 contiguous states.

From The Manufacturer

Prodigy Plus® Ice Maker, nugget style, Original Chewable Ice®, water-cooled, self-contained condenser, production capacity up to 455 lb/24 hours at 70°/50° (397 lb AHRI certified at 90°/70°), sealed maintenance-free bearings, AutoAlert™ indicating lights, unit specific QR code, stainless auger and evaporator, one-touch cleaning, stainless steel finish, AgION™ antimicrobial protection, R-404A refrigerant, 115v/60/1-ph, 12.1 amps, NSF, cULus, engineered and assembled in USA

*Image may not depict product color, inclusions or accessories.

Commercial: 3-year Parts & Labor; 5-year Compressor Parts; Residential: 1-year Parts & Labor

Scotsman NS0422W-1 Specifications

Scotsman offers one of the largest selections of commercial and residential ice makers. It has innovated the industry and provided customer-friendly service since the 1950s. Scotsman is a major global player with distributors and service agents in more than 100 countries.
