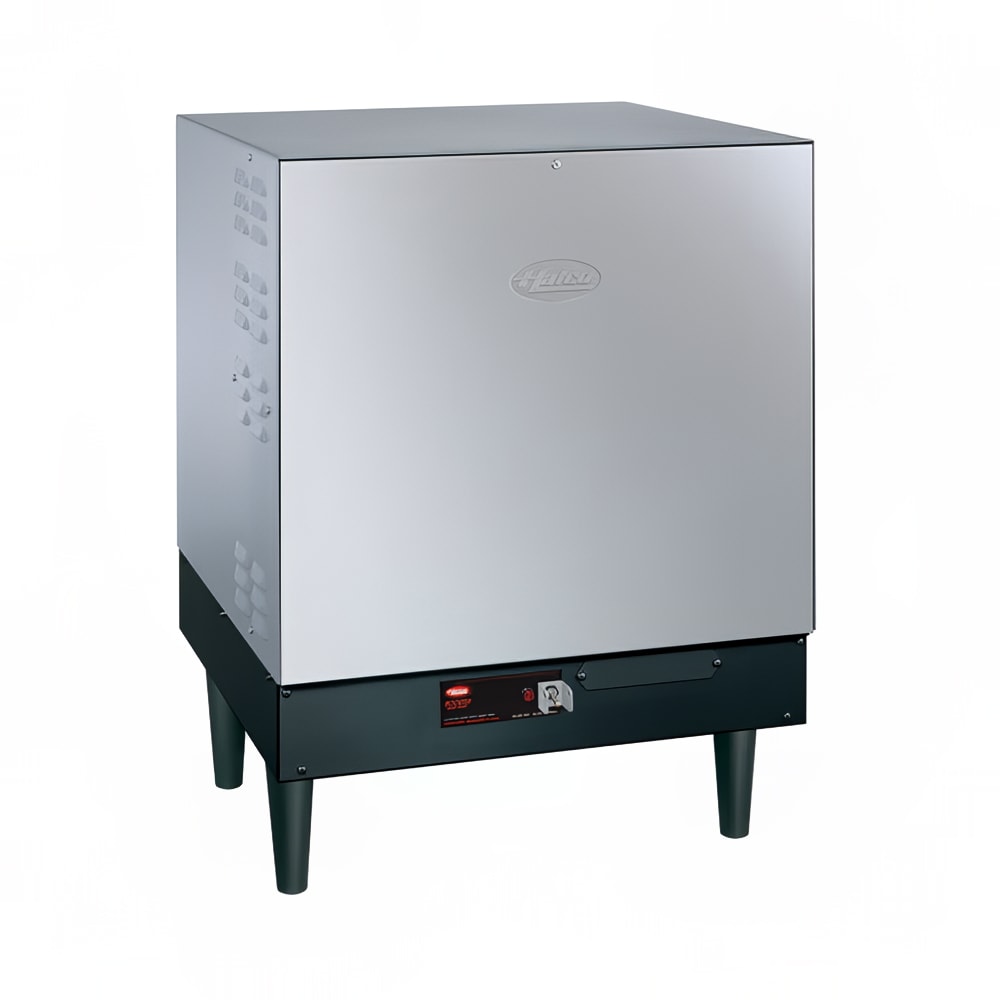

Hatco S-36 Imperial Booster Water Heater, 16 Gallon, 36 kW, 480v/3ph
Retail Price: $8,971.00
$4,934.05 /Each
Selected Voltage: 480V, 3 Phase
| 480V, 3 Phase |
| 208V, 1 Phase |
| 208V, 3 Phase |
| 240V, 1 Phase |
| 240V, 3 Phase |
Hatco S-36 Description
To properly sanitize dishes, the Hatco S-36-480-3-QS Imperial booster heater raises the rinse water temperature to 180 degrees Fahrenheit. For use with low-temp dishmachines, the temperature can be set to 140 degrees Fahrenheit. The tank can hold 16 gallons of water and has a corrosion-resistant Castone® lining.
The Hatco S-36-480-3-QS Imperial booster heater has a low-water cut-off feature that shuts the heating elements down when the water level gets too low. Excess water is drained through the pressure/temperature relief valve. Pressure and temperature gauges enable user to check the levels. The fiberglass insulation and integrated heat trap keep heat retained in the unit. Its stainless steel front and powder-coated hammertone sides are damage resistant.
- Water is heated to 180 degrees F for high-temperature warewashers
- Temperature can be set to 140 degrees F for low-temperature warewashers
- 16-gal. tank capacity
- Castone lining prevents corrosion in the tank
- 573 gal. of water can be dispensed per hour
- Temperature and pressure gauges monitor levels
- Damage-resistant stainless steel front with hammertone sides
- Heat is retained by the built-in heat trap and fiberglass insulation
- Front provides easy access for maintenance
- Indicator light notifies user if the unit is turned on
- On/off toggle switch
- 28 1⁄2 in. W x 22 3⁄4 in. D x 31 in. H
- 43.3 A, 36 kW
- 480 V/60 Hz/3 ph
- Temperature/pressure relief valve releases excess water to lower the pressure in the tank
- Heating elements are shut off when water levels get low, preventing burnouts
- Pressure-reducing valve stabilizes pressure levels
- Limit switch prevents temperatures from getting too high
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hatco S-36 within the 48 contiguous states.
From The Manufacturer
Watch a video about this product
Hatco S-36 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hatco |
| 40F Recovery (gph) | 361 |
| 70F Recovery (gph) | 206 |
| Amps | 43.3 |
| Capacity (gallons) | 16 |
| Heat | Electric |
| Hertz | 60 |
| kW | 36 |
| Phase | 3 |
| Product | Booster Heaters |
| Product Type | Dishwashing Equipment & Supplies |
| Series | Imperial |
| Usage Level | Heavy Duty |
| Voltage | 480 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts |
| Watts | 31 - 40 |
| Width (in) | 23.5 |
| Weight | 214.00 |
Important Prop 65 information for California residents.
Compare to Similar Items
| Attributes |
Hatco S-36 Hatco S-36 Imperial Booster Water Heater, 16 Gallon, 36 kW, 480v/3ph Current Item |
|||
|---|---|---|---|---|
| Customer Rating |
|
|
|
|
| Price | $4,934.05 / Each | $4,953.30 / Each | $4,953.30 / Each | $4,953.30 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping | Free Shipping |
| Usage Level | Heavy Duty | Heavy Duty | Heavy Duty | Heavy Duty |
| 40F Recovery (gph) | 361 | 361 | 361 | 361 |
| 70F Recovery (gph) | 206 | 206 | 206 | 206 |
| Capacity (gallons) | 16 | 16 | 16 | 16 |
| Width (in) | 23.5 | 23.5 | 23.5 | 23.5 |
| Watts | 31 - 40 | 31 - 40 | 31 - 40 | 31 - 40 |
| Heat | Electric | Electric | Electric | Electric |
| Voltage | 480 | 240 | 240 | 208 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts |
- 5
- 4
- 3
- 2
- 1
Review this product!
It operates on 480 V/60 Hz/3 ph power, draws 43.3 A, and uses 36 kW.
It measures 28 53⁄100 in. W x 22 3⁄4 in. D x 31 3⁄100 in. H.
It holds 16 gals.
It provides 361 GPH at a 40°F rise and 206 GPH at a 70°F rise.
It uses 3⁄4-in. NPT inlet and outlet connections on the bottom.
A low-water cut-off and a high-temperature limit control are built in.
Factory preset thermostats regulate water temperature.
The exterior includes a stainless steel front with a silver-gray hammertone body.
