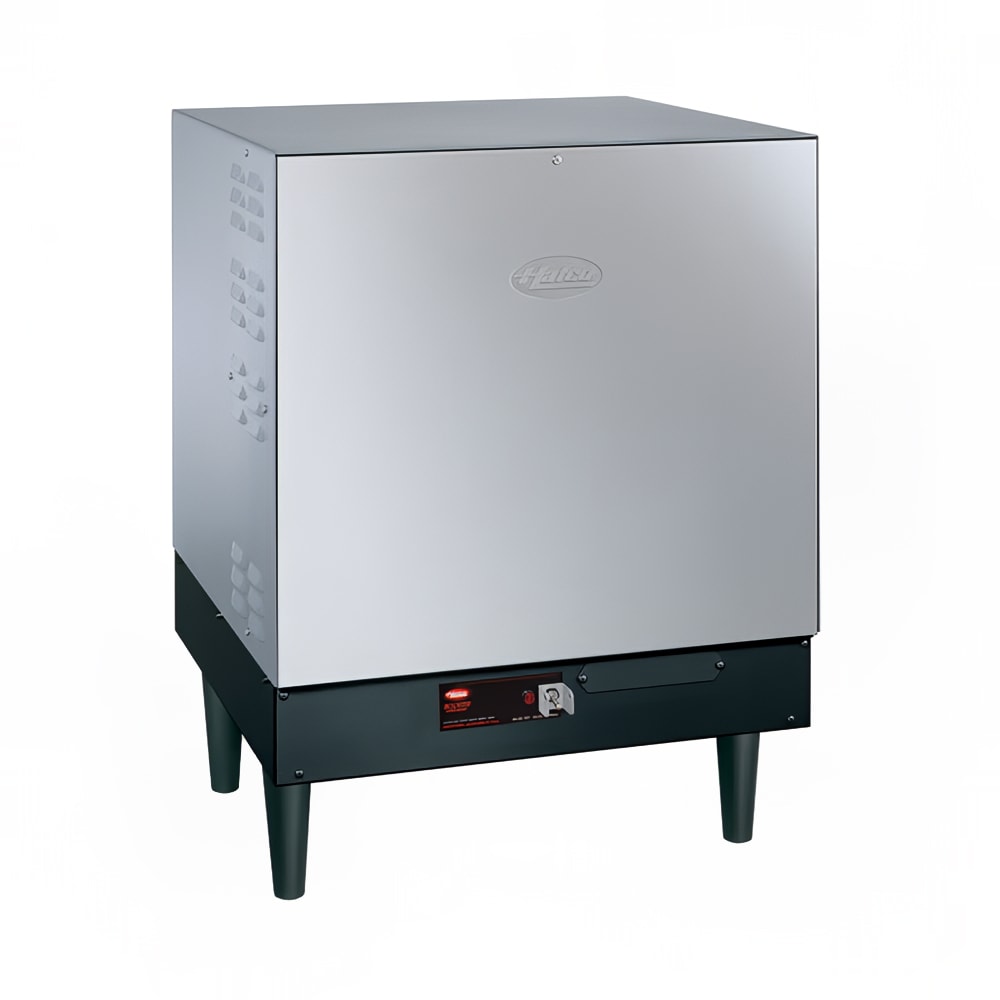

Hatco S-36 Imperial Booster Water Heater, 16 Gallon, 36 kW, 208v/3ph
Typically ships in 4 - 8 Business Days
Retail Price: $9,006.00
$4,953.30 /Each
Selected Voltage: 208V, 3 Phase
| 208V, 3 Phase |
| 208V, 1 Phase |
| 240V, 1 Phase |
| 240V, 3 Phase |
| 480V, 3 Phase |
Hatco S-36 Description
The Hatco S-36 Imperial booster heater eases operation with a pre-set temperature and toggle on/off switch. A pressure-reducing valve releases pressure in the tank, while the unit includes a temperature and pressure relief valve and gauges for monitoring pressure and temperature. With a high-temperature limit control, users can set a maximum safe temperature.
To minimize heat loss, the Hatco S-36 booster heater is lined with fiberglass insulation, and a Castone® lining in the water tank prevents limescale buildup and corrosion. On this booster heater is a powder-coated hammertone body and a stainless steel front panel to ensure the exterior of the unit is durable and resistant to corrosion. Its front cover removes for access to internal components.
- Part of the Imperial series
- Factory pre-set to heat water to 180 degrees F for sanitizing dishes
- Maximum 361 GPH at 40-degree-F rise
- Maximum 206 GPH at 70-degree-F rise
- On/off toggle switch
- Water tank is lined with Castone to prevent corrosion and limescale buildup
- Built-in heat trap and fiberglass insulation increase energy efficiency
- Immersion thermostat triggers a high-temperature limit switch to prevent overheating
- Low-water cut-off protects equipment by turning off the heating elements
- Interior is accessible through the stainless steel front panel
- Powder-coated hammertone body is durable and corrosion-resistance
- 6-in. legs lift the unit off the floor
- 28 53⁄100 in. W x 22 3⁄4 in. D x 31 3⁄100 in. H
- 100 A, 36 kW
- 208 V/60 Hz/3 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hatco S-36 within the 48 contiguous states.
From The Manufacturer
Imperial Booster Heater, Electric, 16-gallon storage capacity, 36-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, 6" legs, 208v/60/3-ph, NSF, cUL, UL
Hatco S-36 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hatco |
| 40F Recovery (gph) | 361 |
| 70F Recovery (gph) | 206 |
| Amps | 100 |
| Capacity (gallons) | 16 |
| Heat | Electric |
| Hertz | 60 |
| kW | 36 |
| Phase | 3 |
| Product | Booster Heaters |
| Product Type | Dishwashing Equipment & Supplies |
| Series | Imperial |
| Usage Level | Heavy Duty |
| Voltage | 208 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts |
| Watts | 31 - 40 |
| Width (in) | 23.5 |
| Weight | 214.00 |
Important Prop 65 information for California residents.
Compare to Similar Items
| Attributes |
Hatco S-36 Hatco S-36 Imperial Booster Water Heater, 16 Gallon, 36 kW, 208v/3ph Current Item |
|||
|---|---|---|---|---|
| Customer Rating |
|
|
|
|
| Price | $4,953.30 / Each | $4,934.05 / Each | $4,953.30 / Each | $4,953.30 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping | Free Shipping |
| Lead Time | Typically ships in 4 - 8 Business Days | IN STOCK: Ships in 1 Business Day | ||
| Usage Level | Heavy Duty | Heavy Duty | Heavy Duty | Heavy Duty |
| 40F Recovery (gph) | 361 | 361 | 361 | 361 |
| 70F Recovery (gph) | 206 | 206 | 206 | 206 |
| Capacity (gallons) | 16 | 16 | 16 | 16 |
| Width (in) | 23.5 | 23.5 | 23.5 | 23.5 |
| Watts | 31 - 40 | 31 - 40 | 31 - 40 | 31 - 40 |
| Heat | Electric | Electric | Electric | Electric |
| Voltage | 208 | 480 | 208 | 240 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts |
