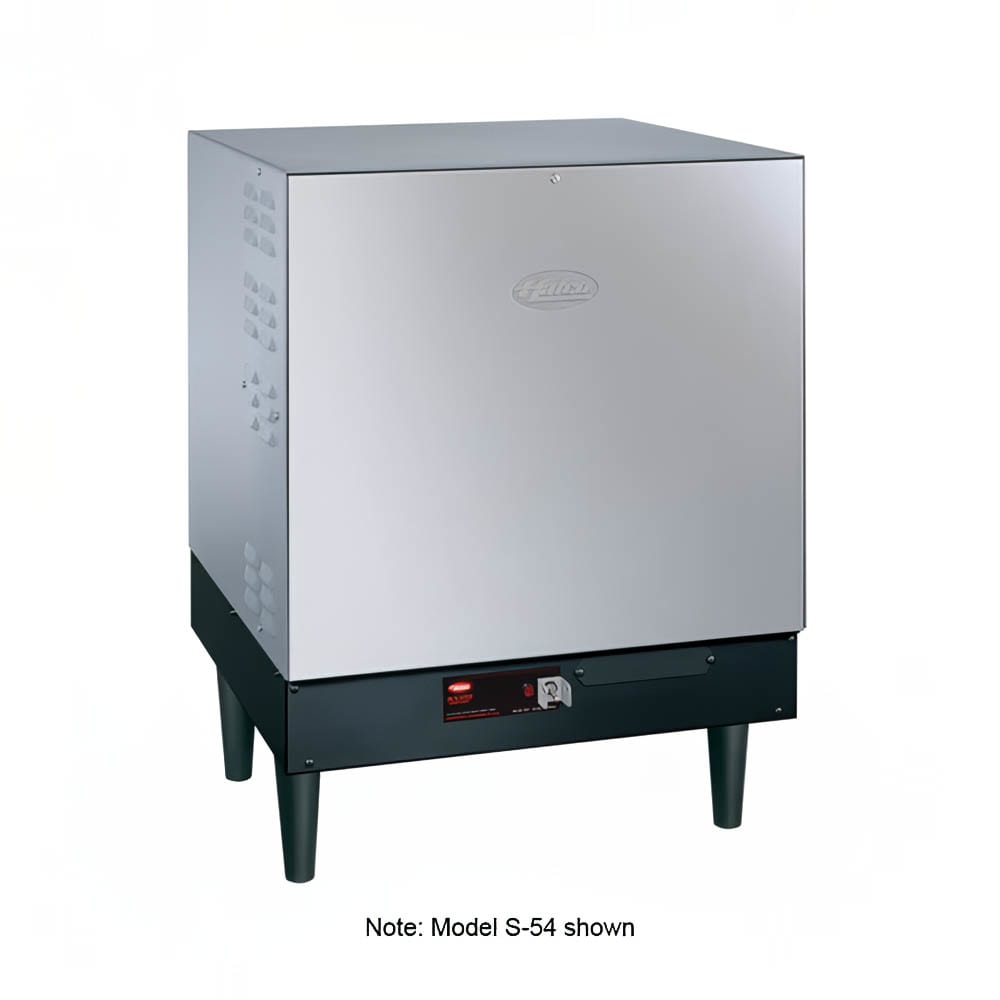

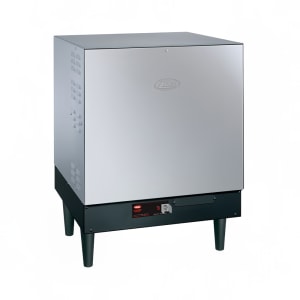

Hatco S-36 Imperial Booster Water Heater, 16 Gallon, 36 kW, 208v/1ph
Retail Price: $8,306.00
$4,568.30 /Each
Selected Voltage: 208V, 1 Phase
| 208V, 1 Phase |
| 208V, 3 Phase |
| 240V, 1 Phase |
| 240V, 3 Phase |
| 480V, 3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Similar Products in Stock Now
Hatco S-36 Description
With its Castone®-lined tank, the Hatco S-36 Imperial booster water heater resists limescale buildup over time. The front panel is made of heavy-duty stainless steel that expedites cleaning and the powder-coated, hammertone-finished body resists dings and scratches. This unit—maintaining sanitizing water temperatures at 180 degrees Fahrenheit—is operated by using the temperature-relief valve and the pressure-reducing valve.
The Hatco S-36 booster water heater holds 16 gallons of hot water inside using its built-in heat trap and fiberglass insulation. For intuitive operation, this unit can be turned on and off with the click of a switch. Optimal conditions in this unit can be monitored with the pilot indicator light and two pressure gauges.
Product Details
- 16-gal. capacity
- Maximum 361 GPH at 40-degree-F rise
- Maximum 206 GPH at 70-degree-F rise
- Holds water temperature at 180 degrees F
- Built-in heat trap
- Fiberglass insulation
- Front panel is made of durable stainless steel
- Silver powder-coated, hammertone finish
- Factory pre-plumbed and pre-wired for rapid installation
- Cuts off when the temperature is high or when the water is low, protecting elements
- Pilot indicator light
- Calibrated immersion thermostat
- Temperature-relief valve and pressure-reducing valve for efficient operation
- 2 pressure gauges
- Power switch
- Limestone-resistant tank
Dimensions & Utilities
- 2853/100 in. W x 223/4 in. D x 313/100 in. H
- 173 A, 36 kW
- 208 V/60 Hz/1 ph
*Free shipping on Hatco S-36 within the 48 contiguous states.
From The Manufacturer
Imperial Booster Heater, Electric, 16-gallon storage capacity, 36-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, NSF, cUL, UL, 208v/60/1ph
*Image may not depict product color, inclusions or accessories.
Hatco S-36 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hatco |
| 40F Recovery (gph) | 361 |
| 70F Recovery (gph) | 206 |
| Amps | 173 |
| Capacity (gallons) | 16 |
| Heat | Electric |
| Hertz | 60 |
| kW | 36 |
| Phase | 1 |
| Product | Booster Heaters |
| Product Type | Dishwashing Equipment & Supplies |
| Series | Imperial |
| Usage Level | Heavy Duty |
| Voltage | 208 |
| Watts | 31 - 40 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts |
| Width (in) | 23.5 |
| Weight | 214.00 |
