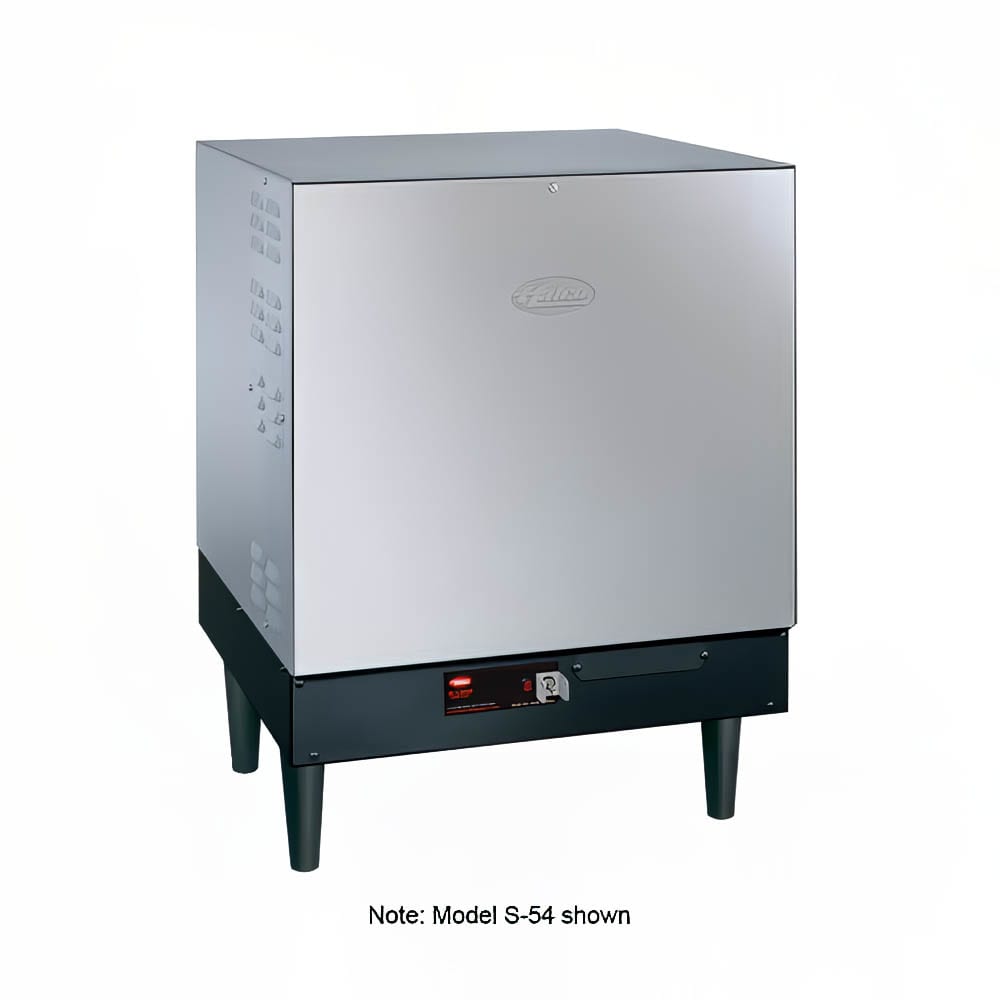

Hatco S-36 Imperial Booster Water Heater, 16 Gallon, 36 kW, 240v/3ph
Retail Price: $9,006.00
$4,953.30 /Each
Selected Voltage: 240V, 3 Phase
| 240V, 3 Phase |
| 208V, 1 Phase |
| 208V, 3 Phase |
| 240V, 1 Phase |
| 480V, 3 Phase |
Hatco S-36 Description
Using an adjustable immersion thermostat, water temperatures in the Hatco S-36 Imperial booster water heater reach 180 degrees Fahrenheit. This heat is intended for high-temperature dishwashers and can be lowered to 140 degrees Fahrenheit for low-temperature dishwashers. Heat stays in the tank with a built-in heat trap and fiberglass insulation. This unit is operated using the temperature-relief valve and pressure-reducing valve.
The Hatco S-36 booster water heater is protected by a high-temperature limit control and a low-water cut-off feature, which shut off the elements in hazardous conditions. For ideal operation, this unit can be monitored using a pilot indicator light and two pressure gauges. The tank is lined with Castone® to reduce limescale buildup—often present in water-using equipment—and the body is finished in heavy-duty, powder-coated hammertone.
- 16-gal. capacity
- Maximum 361 GPH at 40-degree-F rise
- Maximum 206 GPH at 70-degree-F rise
- Maintains 180-degree-F water temperatures for sanitizing
- Silver powder-coated, hammertone finish
- Stainless steel front panel
- Built-in heat trap
- Insulated with fiberglass to trap heat
- Castone-lined tank to reduce limescale
- Calibrated immersion thermostat
- Power switch
- Pressure-reducing valve
- Temperature-relief valve
- 2 pressure gauges
- High-temperature limit control
- Ceases operation when the water is low to protect the elements
- 28 53⁄100 in. W x 22 3⁄4 in. D x 31 3⁄100 in. H
- 86.7 A, 36 kW
- 240 V/60 Hz/3 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hatco S-36 within the 48 contiguous states.
From The Manufacturer
Imperial Booster Heater, Electric, 16-gallon storage capacity, 36-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, 6" legs, 240v/60/3-ph, NSF, cUL, UL
Hatco S-36 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hatco |
| 40F Recovery (gph) | 361 |
| 70F Recovery (gph) | 206 |
| Amps | 86.7 |
| Capacity (gallons) | 16 |
| Heat | Electric |
| Hertz | 60 |
| kW | 36 |
| Phase | 3 |
| Product | Booster Heaters |
| Product Type | Dishwashing Equipment & Supplies |
| Series | Imperial |
| Usage Level | Heavy Duty |
| Voltage | 240 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts |
| Watts | 31 - 40 |
| Width (in) | 23.5 |
| Weight | 214.00 |
Important Prop 65 information for California residents.
Compare to Similar Items
| Attributes |
Hatco S-36 Hatco S-36 Imperial Booster Water Heater, 16 Gallon, 36 kW, 240v/3ph Current Item |
|||
|---|---|---|---|---|
| Customer Rating |
|
|
|
|
| Price | $4,953.30 / Each | $4,934.05 / Each | $4,953.30 / Each | $4,953.30 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping | Free Shipping |
| Usage Level | Heavy Duty | Heavy Duty | Heavy Duty | Heavy Duty |
| 40F Recovery (gph) | 361 | 361 | 361 | 361 |
| 70F Recovery (gph) | 206 | 206 | 206 | 206 |
| Capacity (gallons) | 16 | 16 | 16 | 16 |
| Width (in) | 23.5 | 23.5 | 23.5 | 23.5 |
| Watts | 31 - 40 | 31 - 40 | 31 - 40 | 31 - 40 |
| Heat | Electric | Electric | Electric | Electric |
| Voltage | 240 | 480 | 208 | 208 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts |
