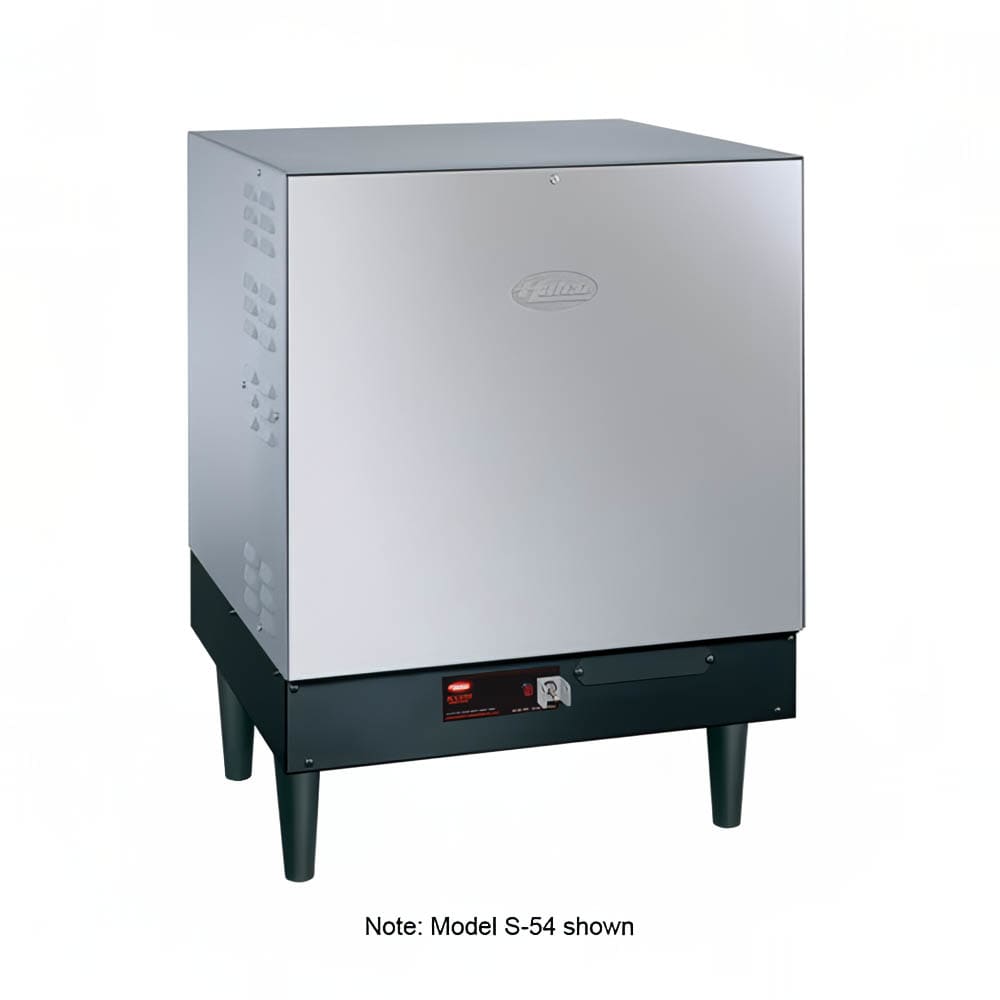

Hatco S-27 Booster Heater w/ 16 Gallon Storage Capacity, 27 kW, 480v/3ph

Image may not depict product color, inclusions or accessories.

KaTom #: 042-S274803 • MPN: S-27 480/3
Ships Free

Extended Lead Time (14+ days)

(0 reviews)Write a Review
Retail Price: $5,196.00
$2,857.80 / Each

Selected Voltage: 480V, 3 Phase

Image may not depict product color, inclusions or accessories.

Hatco S-27 Description

Hatco

The Hatco S-27 Imperial booster heater warms water to 180 degrees Fahrenheit to make it sanitary for dishwashing, and its low-temp setting reduces the temperature to 140 degrees Fahrenheit. The Castone® lining in the tank resists rust and protects the components. It can hold 16 gallons. There is a high-limit temperature switch that shuts the unit down if it overheats, and it also shuts off if the water levels get too low, preventing element burnouts.

The Hatco S-27 Imperial booster heater has a built-in heat trap and fiberglass insulation for keeping heat inside. It has a stainless steel front with hammertone sides to make it durable. Since the unit opens at the front, it is accessible for service. There is an on/off switch with a pilot indicator light that signifies when it is operating, and plastic legs measuring 6 inches tall support and elevate the heater.

Product Details

  • Heater ensures dishwashing water is 180 degrees F for sanitizing
  • Temperature can be set to 140 degrees F for low-temp dishwashers
  • Water temperature recovery with a 40-degree F rise: 271 GPH
  • Water temperature recovery with a 70-degree F rise: 155 GPH
  • 16-gal. capacity
  • Tank is lined with corrosion-resistant Castone to preserve the components
  • Heat trap and fiberglass insulation keep heat contained to increase efficiency
  • Heavy-duty stainless steel front with sturdy hammertone sides
  • High-limit temperature switch shuts the unit down if it overheats
  • Low-water cutoff keeps the elements from burning out if the water level is too low
  • Interior components are accessible from the front to facilitate servicing
  • On/off switch with a pilot indicator light
  • Durable plastic legs support the unit
  • Includes temperature/pressure relief and pressure reducing valves
  • 27 kW, 32.5 A
  • 480 V/60 Hz/3 ph
  • Overall dimensions: 28.53 in. W x 22.75 in. D x 31.03 in. H
  • CE approved; cULus and CE listed; NSF certified
  • Made in the U.S.

Do you want more in-depth information on booster heaters? Check out our booster heaters buyers' guide.

Imperial Booster Heater, Electric, 16-gallon storage capacity, 27-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, NSF, cUL, UL, 480v/60/3ph

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Hatco S-27 Specifications

PDF Spec Sheet
Manufacturer Hatco
40F Recovery 271 gph
70F Recovery 155 gph
Category Water Booster Heaters
Heat Electric
KW 27
Width (in) 23.5
Width (in) Range 21 - 30 in
Hertz 60
Voltage 480
Phase 3
Product Booster Heater
Product Type Dishwashing Equipment & Supplies
Weight 214.00
Hatco S-27 Certifications
  • UL
  • NSF
