Hatco S-27 Imperial Booster Water Heater, 16 Gallon, 27 kW, 240v/3ph
Estimated Backorder Until 4/21/2025
Retail Price: $7,676.00
$4,221.80 /Each
Selected Voltage: 240V, 3 Phase
| 208V, 1 Phase |
| 208V, 3 Phase |
| 240V, 1 Phase |
| 240V, 3 Phase |
| 480V, 3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Similar Products in Stock Now

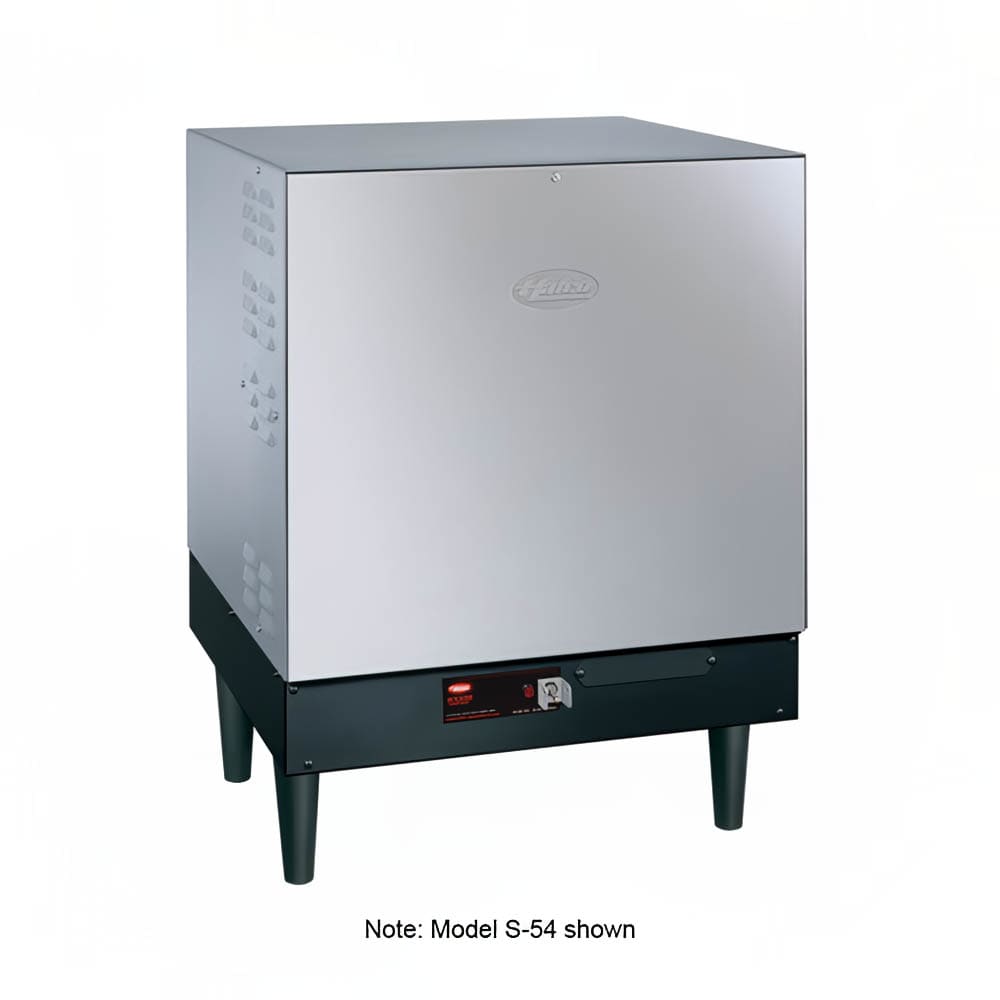

Hatco S-27 Description
With its built-in heat trap and fiberglass insulation, the Hatco S-27 Imperial booster water heater reaches temperatures of 180 degrees Fahrenheit for proper sanitation. The Castone®-lined tank deters limestone buildup over years of wet usage. When the water gets low, the unit stops heating to prevent the elements from burning out. This unit is protected by a high-temperature limit control.
Finished with silver powder-coated hammertone, the Hatco S-27 booster water heater resists scratches and its front panel is made of durable stainless steel. This unit can be monitored with two pressure gauges and a pilot indicator light, and the temperature can be adjusted on the thermostat. The heater is operated with a power switch, a temperature-relief valve, and a pressure-reducing valve.
Product Details
- 16-gal. capacity
- Maximum 271 GPH at 40-degree-F rise
- Maximum 155 GPH at 70-degree-F rise
- Provides 180-degree-F water for sanitizing
- Pressure-reducing valve
- Temperature-relief valve
- 2 temperature and pressure gauges
- Pilot indicator light
- Power switch
- High-temperature limit control
- Low-water cut-off prevents element burnout
- Built-in heat trap and fiberglass insulation
- Tank is lined with Castone to prevent limescale
- Durable, stainless steel front panel
- Silver powder-coated, hammertone body
- Calibrated immersion thermostat can be adjusted to 140 degrees F
Dimensions & Utilities
- 2853/100 in. W x 223/4 in. D x 313/100 in. H
- 65 A, 27 kW
- 240 V/60 Hz/3 ph
*Free shipping on Hatco S-27 within the 48 contiguous states.
From The Manufacturer
Imperial Booster Heater, Electric, 16-gallon storage capacity, 27-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, NSF, cUL, UL, 240v/60/3ph
*Image may not depict product color, inclusions or accessories.
Hatco S-27 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hatco |
| 40F Recovery (gph) | 271 |
| 70F Recovery (gph) | 155 |
| Amps | 65 |
| Capacity (gallons) | 16 |
| Heat | Electric |
| Hertz | 60 |
| kW | 27 |
| Phase | 3 |
| Product | Booster Heaters |
| Product Type | Dishwashing Equipment & Supplies |
| Series | Imperial |
| Usage Level | Heavy Duty |
| Voltage | 240 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts |
| Watts | 21 - 30 |
| Width (in) | 23.5 |
| Weight | 214.00 |
