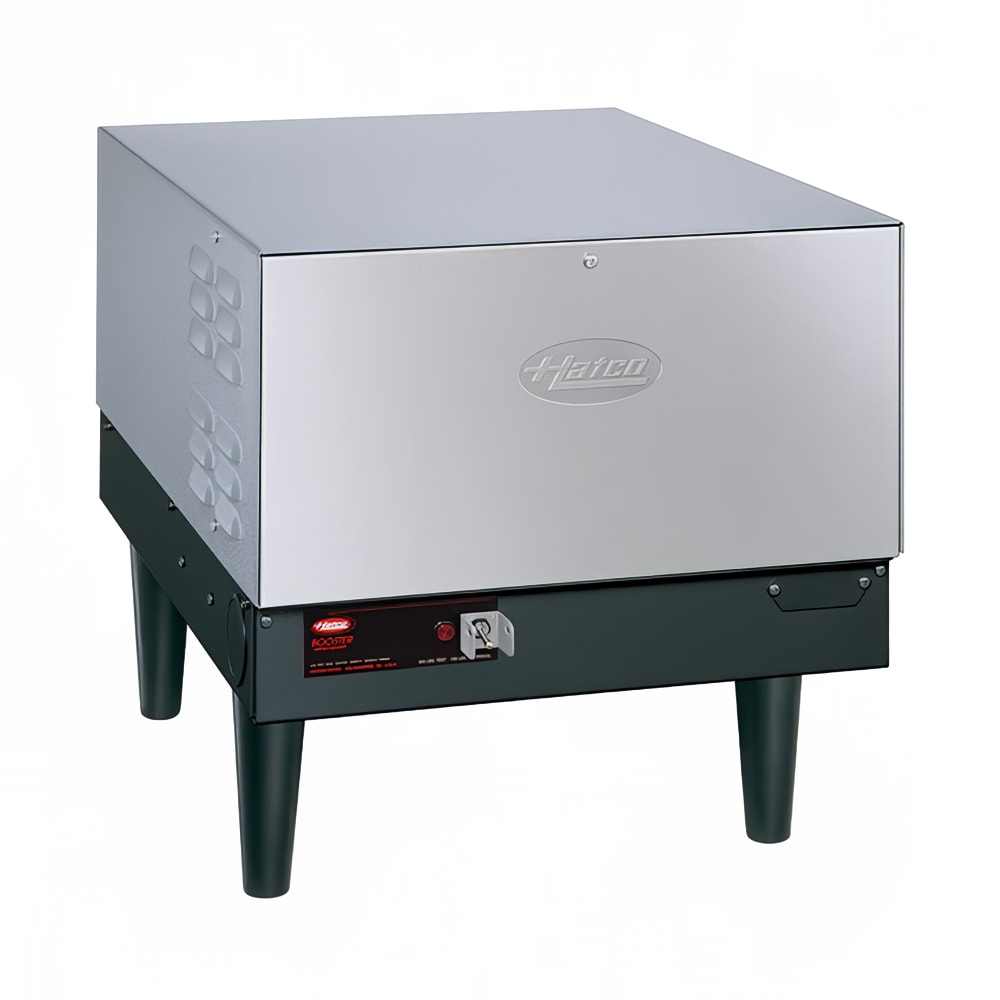

Hatco C-45 Compact Booster Water Heater, 6 Gallon, 45 kW, 480v/3ph
IN STOCK: Ships in 1 Business Day
Less Than 5 in Stock, Order Soon!
Retail Price: $8,336.00
$4,584.80 /Each
Selected Voltage: 480V, 3 Phase
| 480V, 3 Phase |
| 208V, 3 Phase |
| 240V, 1 Phase |
| 240V, 3 Phase |
Hatco C-45 Description
Designed to be used with a warewasher, the Hatco C-45 compact booster heater raises rinse water's temperature to 180 degrees Fahrenheit; at this level, the water is hot enough to properly sanitize dishes. When water flows at 258 gallons per hour, the unit provides a 70-degree-Fahrenheit rise, but if water flows at 452 gallons per hour, it provides a 40-degree-Fahrenheit rise. Its tank has a 6-gallon storage capacity and a cement lining that protects it from corrosion and limescale buildup. Insulated with fiberglass, the unit will not lose heat quickly.
The booster heater offers user-friendly operation with an on/off switch and a pilot indicator light. Safety features are built into the unit to protect the components, along with a temperature and pressure relief valve and a pressure-reducing valve. If the water level is too low, the controls also include a low-water cut-off that prevents element burnout by shutting down the power. Plastic legs elevate this Hatco C-45 booster heater off the floor, and its compact design enables installation beside dishmachines without taking up a lot of space.
- Raises the temperature of a dishwasher's rinse water for proper sanitization
- Provides 70-degree-F rise to water at 258 GPH
- Provides 40-degree-F rise to water at 452 GPH
- 6-gal. tank storage capacity
- Tank has a Castone® cement lining that resists corrosion and limescale buildup
- Insulated with fiberglass to help prevent heat loss
- On/off switch with a pilot indicator light
- Pre-plumbed and pre-wired with a calibrated immersion thermostat
- High-limit temperature control protects against overheating
- Temperature/pressure relief valve and gauges
- Pressure-reducing valve regulates and stabilizes pressure flow
- Low-water cut-off feature monitors water levels, shutting off power to the element if it is too low to prevent burnout
- Stainless steel front panel swings away to provide service access to the control fuses, low-water cut-off switch, and transformer
- Powder-coated hammertone body resists corrosion and scratches
- 6-in. plastic legs
- Install under a dishtable with mounting slide brackets (sold separately)
- 18 in. W x 29 5⁄16 in. D x 18 3⁄100 in. H
- 45 kW, 54.2 A
- 480 V/60 Hz/3 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hatco C-45 within the 48 contiguous states.
From The Manufacturer
Compact Booster Heater, electric, 6-gallon storage capacity, electric operation, 45-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, 480v/60/3-ph, NSF, cUL, UL
Watch a video about this product
Hatco C-45 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hatco |
| 40F Recovery (gph) | 452 |
| 70F Recovery (gph) | 258 |
| Amps | 54.2 |
| Capacity (gallons) | 6 |
| Heat | Electric |
| Hertz | 60 |
| kW | 45 |
| Phase | 3 |
| Product | Booster Heaters |
| Product Type | Dishwashing Equipment & Supplies |
| Usage Level | Medium Duty |
| Voltage | 480 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts |
| Watts | 41 - 50 |
| Width (in) | 18 |
| Weight | 142.00 |
Important Prop 65 information for California residents.
