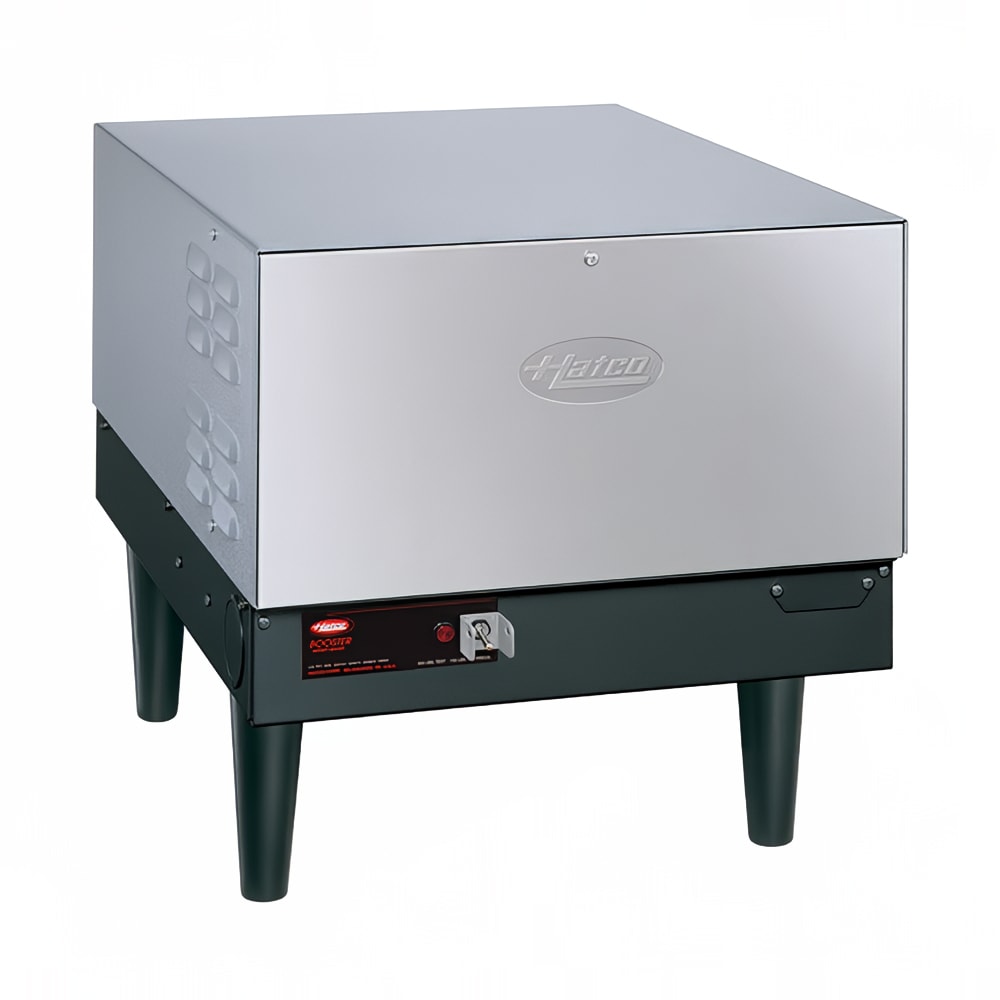

Hatco C-45 Compact Booster Heater, 6-Gallon, 45 KW, 240 Volts, 3 Phase

KaTom #: 042-C452403 • MPN: C-45-240-3-QS

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Retail Price: $4,946.00
$2,720.30 / Each

Hatco C-45 Description

The Hatco C-45 240-3 QS can provide a 40 degree Fahrenheit temperature rise to 452 gallon-per-hour water supplies or a 70 degree Fahrenheit rise to 258 gallon-per-hour supplies, providing water heated to the 180 degrees Fahrenheit necessary to sanitize clean dishes in a high-temperature dish machine. This equipment is built with a Castone lined tank designed to resist corrosion and mineral buildup. That tank is also insulate with fiberglass, making the heater an energy-efficient choice.

A number of safety and performance features are included standard with the Hatco C-45 240-3 QS booster heater, including a high-limit switch that cuts off the unit's power if it begins to overheat and a pressure-relief valve that prevents high pressure from building up. A manual On/Off switch is provided so operators can power down the unit for extended periods when it is not needed

Product Details

  • Hatco Compact Series
  • Provides a 40 degree F rise to 452 gph water supplies and a 70 degree F rise to 258 gph water supplies
  • Castone-lined water tank resists corrosion and the buildup of lime scale
  • Fiber-glass insulated tank resists heat loss for energy efficiency
  • Holds and heats 6-gal. of water
  • Pressure and temperature gauges allow users to keep an eye on those conditions
  • Pressure relief valve eliminates the risk of dangerous pressure buildup
  • Pressure reducing valve provides the correct incoming water pressure to the heater
  • Cabinet is built with an easy-cleaning steel front panel and a gray powder-coated hammertone body
  • 240 V/60 Hz/3-ph, 45 kW, 108 A
  • Overall Dimensions: 29.25 in. W x 18 in. D x 12.3 in. H
  • cULus and CE Listed; NSF Certified

Designed for Simple Operation and Maintenance

  • Front panel swings away to provide service technicians access for maintenance and repair
  • Pilot indicator light signifies that the element is powered on
  • On/Off switch lets operators manually shut power off when heater is not needed to conserve electricity
  • Equipment is pre-wired and pre-plumbed, so installation is quick and smooth
  • Can be mounted to the underside of a work table or countertop with sold-separately slide brackets or on the floor on included 6-in. legs

Compact Booster Heater, Electric, 6-gallon storage capacity, electric operation, 45 KW, stainless steel front, Castone tank, 240 volts, 3 phase. Same Day Shipping on orders recieved before noon (based on availability). NOTE: Water supply in excess of 3.0 grains of hardness per gallon (GPG) must be treated and softened before being used; water containing over 3.0 GPG will decrease the efficiency and reduce the operating life of the unit. Please be advised that product failure caused by liming or sediment buildup is covered under warranty ONLY with proper usage of Hatco water treatment system.

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Hatco C-45 Specifications

PDF Spec Sheet
Manufacturer Hatco
40F Recovery 452 gph
70F Recovery 258 gph
Category Water Booster Heaters
Heat Electric
KW 45
Voltage 240
Width (in) 18
Weight 142.00
Hatco C-45 Certifications
  • NSF
