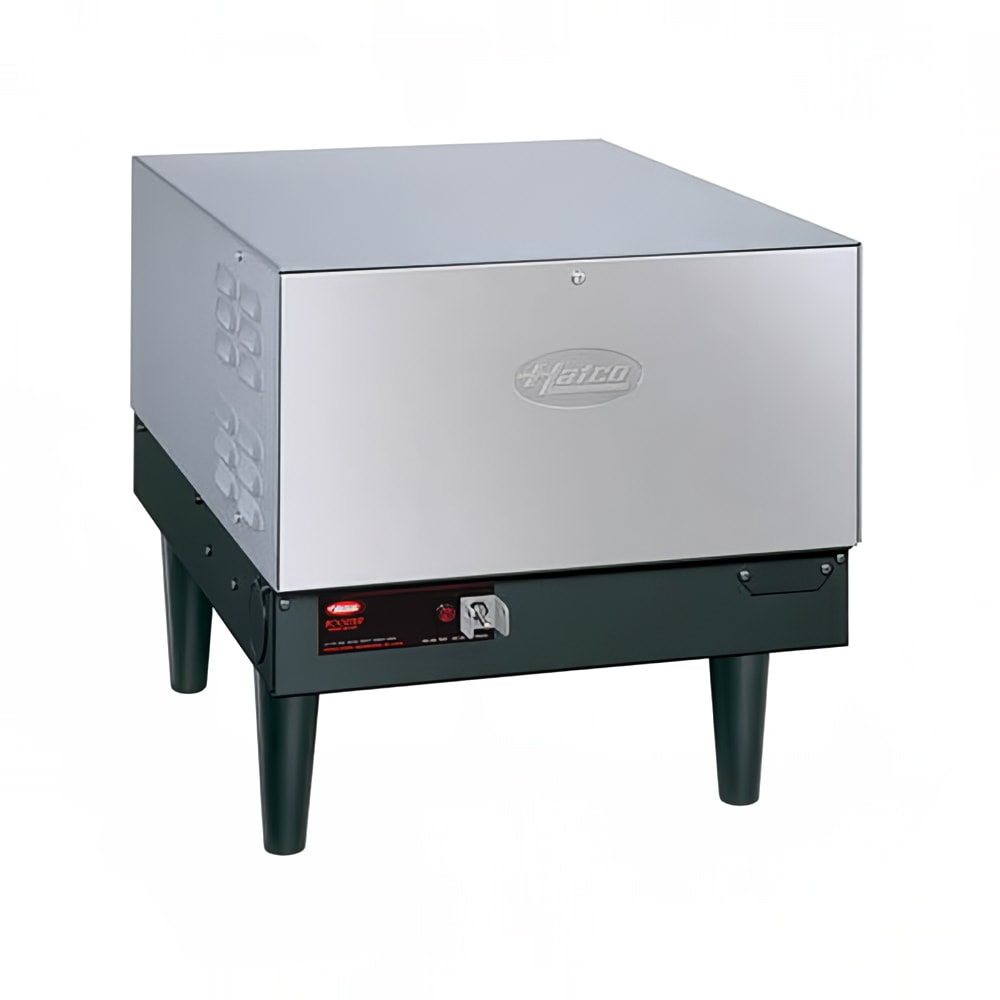

Hatco C-45 Compact Booster Water Heater, 6 Gallon, 45 kW, 240v/1ph
Retail Price: $8,426.00
$4,634.30 /Each
Selected Voltage: 240V, 1 Phase
| 240V, 1 Phase |
| 208V, 3 Phase |
| 240V, 3 Phase |
| 480V, 3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Hatco C-45 Description
The Hatco C-45 compact booster water heater ensures that dishes and flatware reach the final 180 degrees Fahrenheit required to eliminate bacteria and microorganisms. Fitted with 6-inch legs, this unit can be installed near a dishwasher or can be mounted using a slide mounting bracket, which is sold separately. Featuring a stainless steel swinging door, silver powder-coated hammertone exterior, and a Castone®-lined tank, this unit is durable enough for daily use. To minimize heat loss, this booster is insulated with fiberglass.
For safety purposes, this unit includes a high-temperature limit control and a low-water cut-off to protect the heating elements from burning out. The temperature of the Hatco C-45 compact booster water heater can be monitored with a calibrated immersion thermostat and two temperature gauges. To streamline operation, this booster is controlled by a temperature relief valve, a pressure reducing valve, and a switch that turns the unit on or off.
- 6-gal. capacity
- Heats water for sanitizing dishes at the required 180-degree-F mark
- Maximum 452 GPH at 40-degree-F rise
- Maximum 258 GPH at 70-degree-F rise
- 6-in. legs
- Available slide brackets for mounting (not included)
- Fiberglass insulation minimizes heat loss
- Silver powder-coated hammertone body
- Stainless steel front panel gives access to probes and elements
- Castone-lined tank protects against corrosion
- Factory plumbed and wired for installation
- Calibrated immersion thermostat
- High-temperature limit control
- Low-water cut-off prevents element burnout
- Pilot indicator light
- On/off switch
- Temperature relief valve
- 2 pressure gauges
- Pressure reducing valve
- 3⁄4-in. NPT pipe
- Fittings for water inlet and outlet
- 18 in. W x 29 1⁄4 in. D x 18 3⁄100 in. H
- 187.5 A, 45 kW
- 240 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hatco C-45 within the 48 contiguous states.
From The Manufacturer
Compact Booster Heater, electric, 6-gallon storage capacity, electric operation, 45-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, NSF, cUL, UL, 240v/60/1ph
Hatco C-45 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hatco |
| 40F Recovery (gph) | 452 |
| 70F Recovery (gph) | 258 |
| Amps | 187.5 |
| Capacity (gallons) | 6 |
| Heat | Electric |
| Hertz | 60 |
| kW | 45 |
| Phase | 1 |
| Product | Booster Heaters |
| Product Type | Dishwashing Equipment & Supplies |
| Usage Level | Medium Duty |
| Voltage | 240 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts |
| Watts | 41 - 50 |
| Width (in) | 18 |
| Weight | 142.00 |
