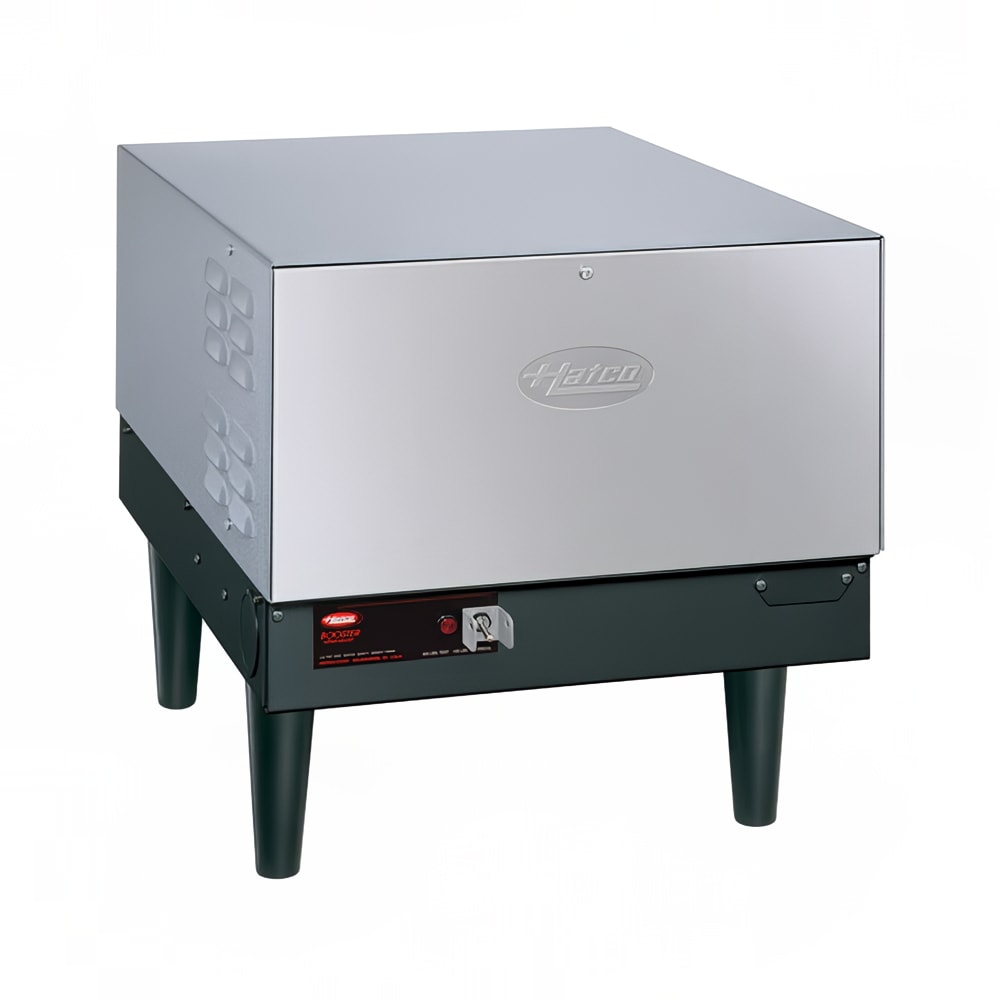

Hatco C-27 Compact Booster Water Heater, 6 Gallon, 27 kW, 480v/3ph

The Hatco C-27-480-3-QS booster water heater has a Castone®-lined tank to combat corrosion, giving it a longer lifespan than comparable models. Its compact design takes up little space in crowded kitchens, and although the unit comes mounted on 6-inch legs, slide brackets are available to facilitate placement under a dishtable. This heater has a 6-gallon capacity and 27 kilowatts of heating power, providing a steady workflow for low energy costs. Fiberglass insulation further assists with heat management, increasing efficiency. A swing-away front panel gives the user quick access to internal components when attention is required. The panel is stainless steel, and the rest of the heater has a powder-coated hammertone finish.

Product Details

• 6-gal. capacity
• Compact design frees up kitchen space
• Stainless steel front panel and powder-coated hammertone body
• Factory pre-plumbing and pre-wiring support quick setup
• Calibrated immersion thermostat
• Swing-away front panel provides component access
• Low-water cut-off keeps element from burning out
• Fiberglass insulation limits heat loss
• Castone-lined tank holds up against corrosion
• 6-in. legs
• Slide bracket option available
• Includes ³⁄₄-in. NPT pipe and fittings for water inlet/outlet
• Maximum 271 GPH recovery at 40-degree-F rise
• Maximum 155 GPH recovery at 70-degree-F rise

Dimensions & Utilities

• 18 in. W x 29¹/₄ in. D x 18³/₁₀₀ in. H
• 32.5 A, 27 W
• 480 V/60 Hz/3 ph

Product Features

From The Manufacturer

Compact Booster Heater, electric, 6-gallon storage capacity, electric operation, 27-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, NSF, cUL, UL

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor; 10-year Tank Parts
