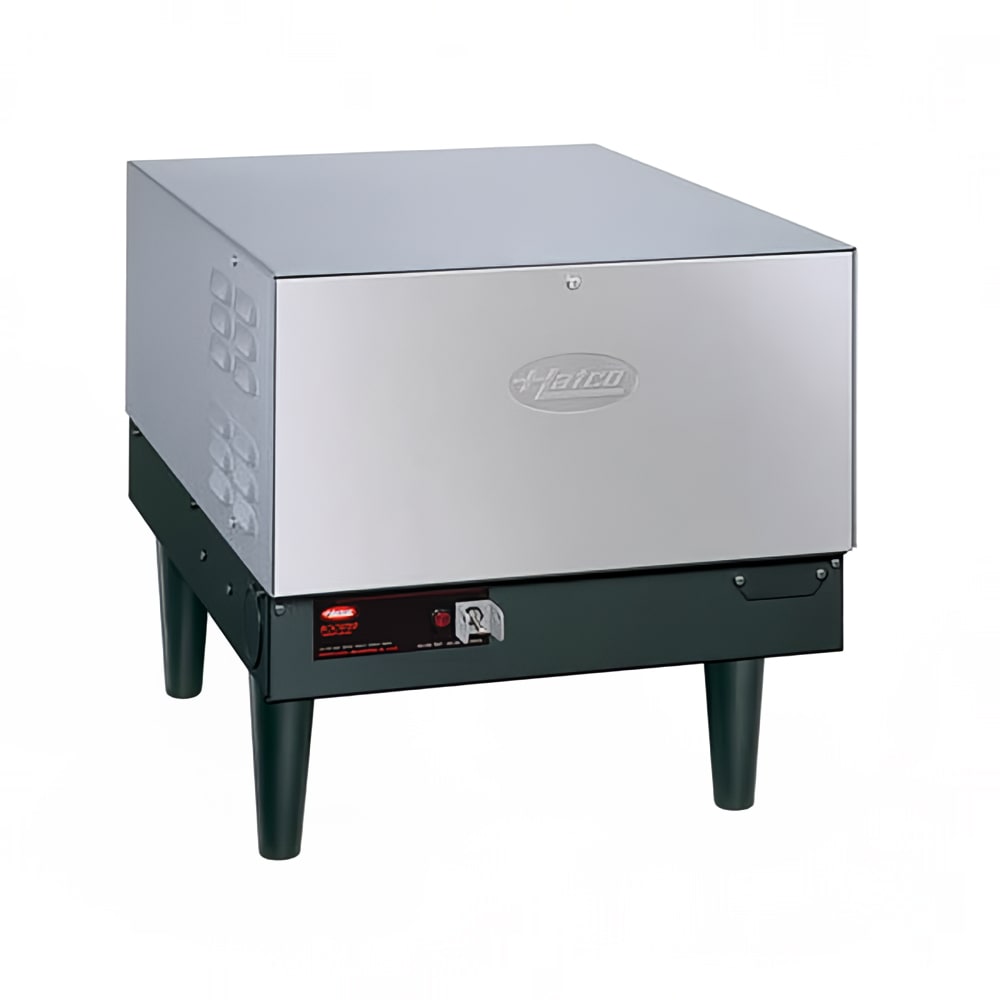

Hatco C-27 Compact Booster Water Heater, 6 Gallon, 27 kW, 208v/1ph
Retail Price: $7,046.00
$3,875.30 /Each
Selected Voltage: 208V, 1 Phase
| 208V, 1 Phase |
| 208V, 3 Phase |
| 240V, 1 Phase |
| 240V, 3 Phase |
| 480V, 3 Phase |
Hatco C-27 Description
The Hatco C-27 compact booster water heater is powder coated with silver hammertone, and its Castone®-lined tank protects against corrosion. Insulated with fiberglass, this unit minimizes the amount of heat lost, so it quickly raises the water's temperature to 180 degrees Fahrenheit—the required level for sanitizing and flash-drying flatware. The swinging stainless steel front panel enables access to the control fuses when servicing the probes and elements. This unit is operated with a simple on/off switch, a temperature and pressure relief valve, and a pressure-reducing valve.
Pre-wired and pre-plumbed at the factory, the Hatco C-27 compact booster water heater can be monitored using the calibrated immersion thermostat and two gauges. To keep the booster close to the dishwasher, slide brackets are available for mounting, and the 6-inch legs can be used to stand the unit upright.
- 6-gal. storage capacity
- Water gets to the 180 degrees F required for sanitation
- Maximum 271 GPH at 40-degree-F rise
- Maximum 155 GPH at 70-degree-F rise
- 6-in. legs
- Slide mounting brackets (sold separately)
- Low-water cut-off
- High-temperature limit control
- Calibrated immersion thermostat
- Pressure-reducing valve
- 2 temperature and pressure gauges
- Temperature and pressure relief valve
- Pilot indicator light
- On/off switch
- Stainless steel front panel
- Front panel swings out to reveal control fuses and probe access
- Fiberglass insulation
- Hammertone, powder-coated silver body
- Castone-lined tank collects limestone slowly
- 3⁄4-in. NPT pipe
- Fittings for inlet and outlet
- 18 in. W x 29 1⁄4 in. D x 18 3⁄100 in. H
- 129.9 A, 27 kW
- 208 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hatco C-27 within the 48 contiguous states.
From The Manufacturer
Compact Booster Heater, electric, 6-gallon storage capacity, electric operation, 27-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, NSF, cUL, UL, 208v/60/1ph
Hatco C-27 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hatco |
| 40F Recovery (gph) | 271 |
| 70F Recovery (gph) | 155 |
| Amps | 129.9 |
| Capacity (gallons) | 6 |
| Heat | Electric |
| Hertz | 60 |
| kW | 27 |
| Phase | 1 |
| Product | Booster Heaters |
| Product Type | Dishwashing Equipment & Supplies |
| Usage Level | Medium Duty |
| Voltage | 208 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts |
| Watts | 21 - 30 |
| Width (in) | 18 |
| Weight | 142.00 |
Important Prop 65 information for California residents.
Compare to Similar Items
| Attributes |
Hatco C-27 Hatco C-27 Compact Booster Water Heater, 6 Gallon, 27 kW, 208v/1ph Current Item |
|||
|---|---|---|---|---|
| Customer Rating |
|
|
|
|
| Price | $3,875.30 / Each | $3,875.30 / Each | $3,875.30 / Each | $3,875.30 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping | Free Shipping |
| Usage Level | Medium Duty | Medium Duty | Medium Duty | Medium Duty |
| 40F Recovery (gph) | 271 | 271 | 271 | 271 |
| 70F Recovery (gph) | 155 | 155 | 155 | 155 |
| Capacity (gallons) | 6 | 6 | 6 | 6 |
| Width (in) | 18 | 18 | 18 | 18 |
| Watts | 21 - 30 | 21 - 30 | 21 - 30 | 21 - 30 |
| Heat | Electric | Electric | Electric | Electric |
| Voltage | 208 | 240 | 208 | 240 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts |
