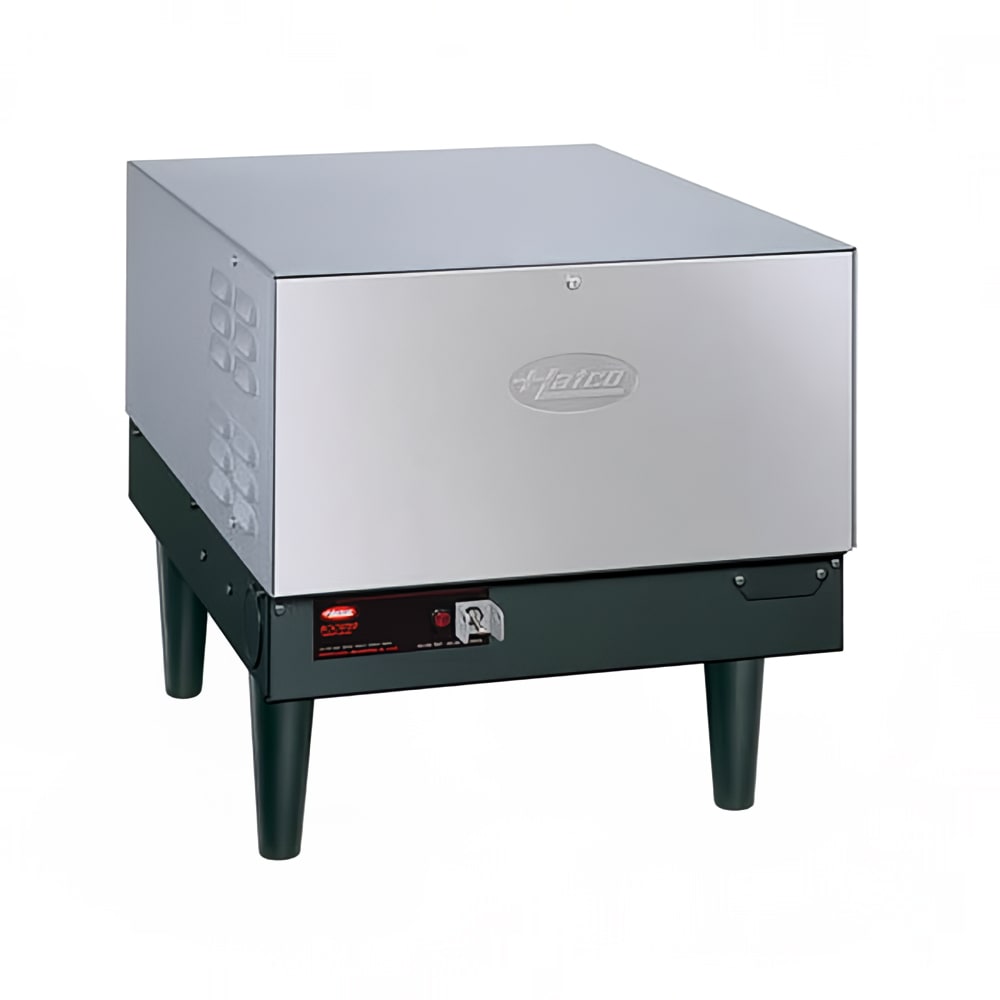

Hatco C-27 Compact Booster Water Heater, 6 Gallon, 27 kW, 240v/1ph

Available with slide mounting brackets or 6-inch legs, the Hatco C-27 compact booster water heater provides 180-degree-Fahrenheit water for properly sanitizing dishware. This unit comes with a temperature and pressure relief valve and a pressure-reducing valve, ensuring operator safety. It can be monitored with the calibrated immersion thermostat, two gauges, and the pilot indicator light. For safety purposes, this booster includes a high-temperature limit control and a low-water cut-off.

The Hatco C-27 compact booster water heater has a Castone®-lined tank to prevent corrosion and a stainless steel front panel for fast access to controls, probes, and elements for servicing. The body is finished with a powder-coated silver hammertone, and the booster is insulated with fiberglass to prevent heat from leaking. The entire heater is pre-plumbed and pre-wired in the factory for painless installation upon arrival.

Product Details

• 6-gal. capacity
• Water is heated to 180 degrees F for sanitation purposes
• Maximum 271 GPH at 40-degree-F rise
• Maximum 155 GPH at 70-degree-F rise
• Calibrated immersion thermostat
• Low-water cut-off for element protection
• High-temperature limit control
• On/off switch
• Pilot indicator light
• Pressure-reducing valve
• 2 temperature and pressure gauges
• Temperature and pressure relief valve
• 6-in. legs
• Slide mounting brackets (sold separately)
• Stainless steel front panel
• Panel swings off for control access
• Hammertone-finished body is silver powder coated for corrosion resistance
• Fiberglass insulation
• Castone liner
• ³⁄₄-in. NPT pipe
• Fittings for inlet and outlet

Dimensions & Utilities

• 18 in. W x 29¹/₄ in. D x 18³/₁₀₀ in. H
• 112.5 A, 27 kW
• 240 V/60 Hz/1 ph

From The Manufacturer

Compact Booster Heater, electric, 6-gallon storage capacity, electric operation, 27-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, NSF, cUL, UL, 240v/60/1ph

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor; 10-year Tank Parts

Hatco C-27 Specifications
