Hatco C-18 Compact Booster Water Heater, 6 Gallon, 18 kW, 480v/3ph
Retail Price: $5,216.00
$2,868.80 /Each
Selected Voltage: 480V, 3 Phase
| 480V, 3 Phase |
| 208V, 1 Phase |
| 240V, 1 Phase |
| 240V, 3 Phase |

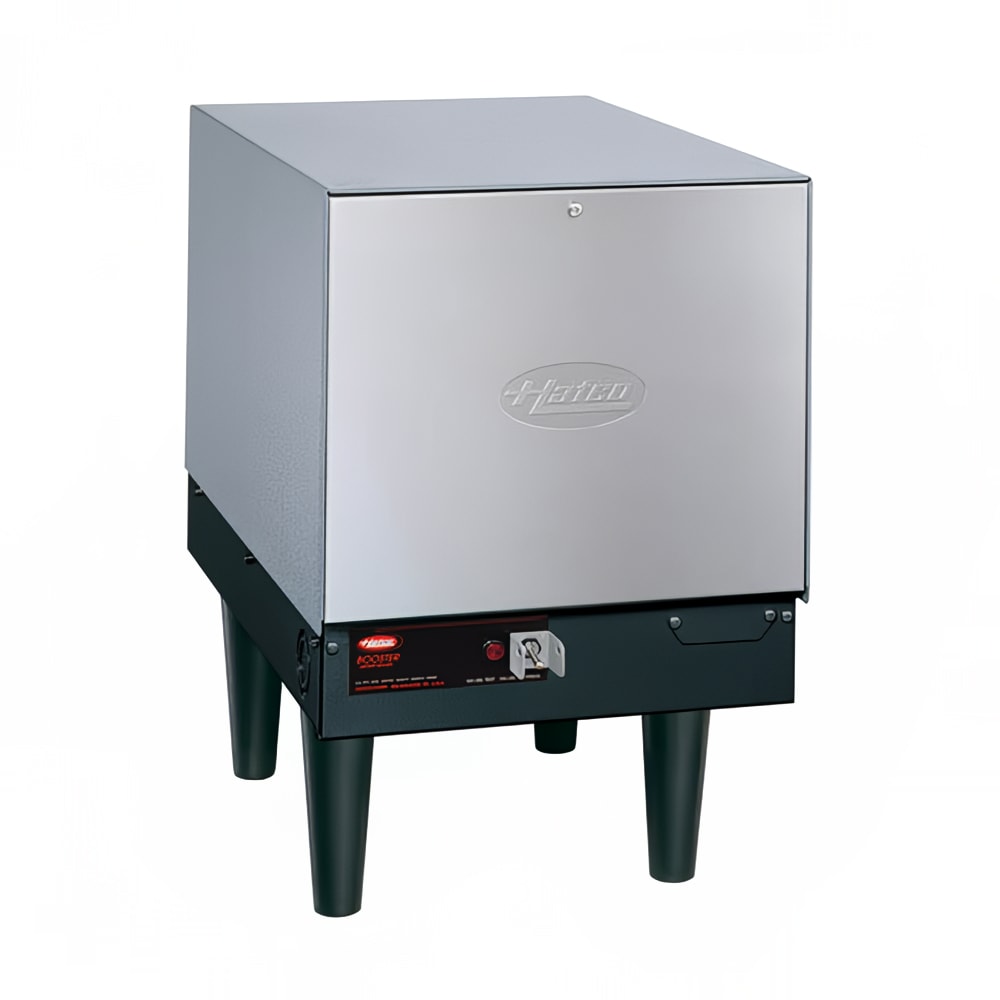

Hatco C-18 Description
Lined with Castone® to prevent corrosion and limestone, the Hatco C-18 compact booster water heater is powder-coated silver with a hammertone finish and has a stainless steel front panel and fiberglass insulation. For safe operation, this unit includes a high-temperature limit, a low-water cut-off, and a pilot indicator light. Temperatures can be monitored using a relief valve, pressure gauges, and a calibrated immersion thermostat. This booster is also operated with an on/off switch and a pressure-reducing valve.
The Hatco C-18 compact booster water heater can be installed with slide mounting brackets, which are sold separately, or stand on the included 6-inch legs. This booster is pre-wired and pre-plumbed in the factory with a 3⁄4-in. NPT pipe and fittings for a water inlet and outlet. The front panel swings away, granting access to control fuses, a transformer, probes, and elements. This unit brings water to the required temperature of 180 degrees Fahrenheit to sanitize dishes and eliminate bacteria.
- 6-gal. capacity
- Provides 180-degree-F water temperatures for sanitation
- Maximum 181 GPH at 40-degree-F rise
- Maximum 103 GPH at 70-degree-F rise
- 6-in. legs
- Slide mounting brackets (sold separately)
- High-temperature limit switch controls
- Low-water cut-off prevents element burnout
- Pressure-reducing valve
- Calibrated immersion thermostat
- 2 temperature and pressure gauges
- Temperature and pressure relief valve
- Pilot indicator light
- On/off switch
- Pre-plumbed and wired in factory
- Stainless steel swinging front panel
- Silver powder-coated hammertone finish on the body
- Insulated with fiberglass
- Castone-lined tank prevents corrosion for long-term use
- Control fuses and transformer
- Quick-access probe and elements
- 3⁄4-in. NPT pipe
- Fittings for inlet and outlet
- 13 1⁄16 in. W x 26 in. D x 19 39⁄50 in. H
- 21.7 A, 18 kW
- 480 V/60 Hz/3 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hatco C-18 within the 48 contiguous states.
From The Manufacturer
Compact Booster Heater, electric, 6-gallon storage capacity, electric operation, 18-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, NSF, cUL, UL, 480v/60/3ph
Hatco C-18 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hatco |
| 40F Recovery (gph) | 181 |
| 70F Recovery (gph) | 103 |
| Amps | 21.7 |
| Capacity (gallons) | 6 |
| Heat | Electric |
| Hertz | 60 |
| kW | 18 |
| Phase | 3 |
| Product | Booster Heaters |
| Product Type | Dishwashing Equipment & Supplies |
| Usage Level | Medium Duty |
| Voltage | 480 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts |
| Watts | 11 - 20 |
| Width (in) | 13 |
| Weight | 120.00 |
Important Prop 65 information for California residents.
Compare to Similar Items
| Attributes |
Hatco C-18 Hatco C-18 Compact Booster Water Heater, 6 Gallon, 18 kW, 480v/3ph Current Item |
|||
|---|---|---|---|---|
| Customer Rating |
|
|
|
|
| Price | $2,868.80 / Each | $2,868.80 / Each | $2,868.80 / Each | $2,868.80 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping | Free Shipping |
| Usage Level | Medium Duty | Medium Duty | Medium Duty | Medium Duty |
| 40F Recovery (gph) | 181 | 181 | 181 | 181 |
| 70F Recovery (gph) | 103 | 103 | 103 | 103 |
| Capacity (gallons) | 6 | 6 | 6 | 6 |
| Width (in) | 13 | 13 | 13 | 13 |
| Watts | 11 - 20 | 11 - 20 | 11 - 20 | 11 - 20 |
| Heat | Electric | Electric | Electric | Electric |
| Voltage | 480 | 240 | 240 | 208 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts |
