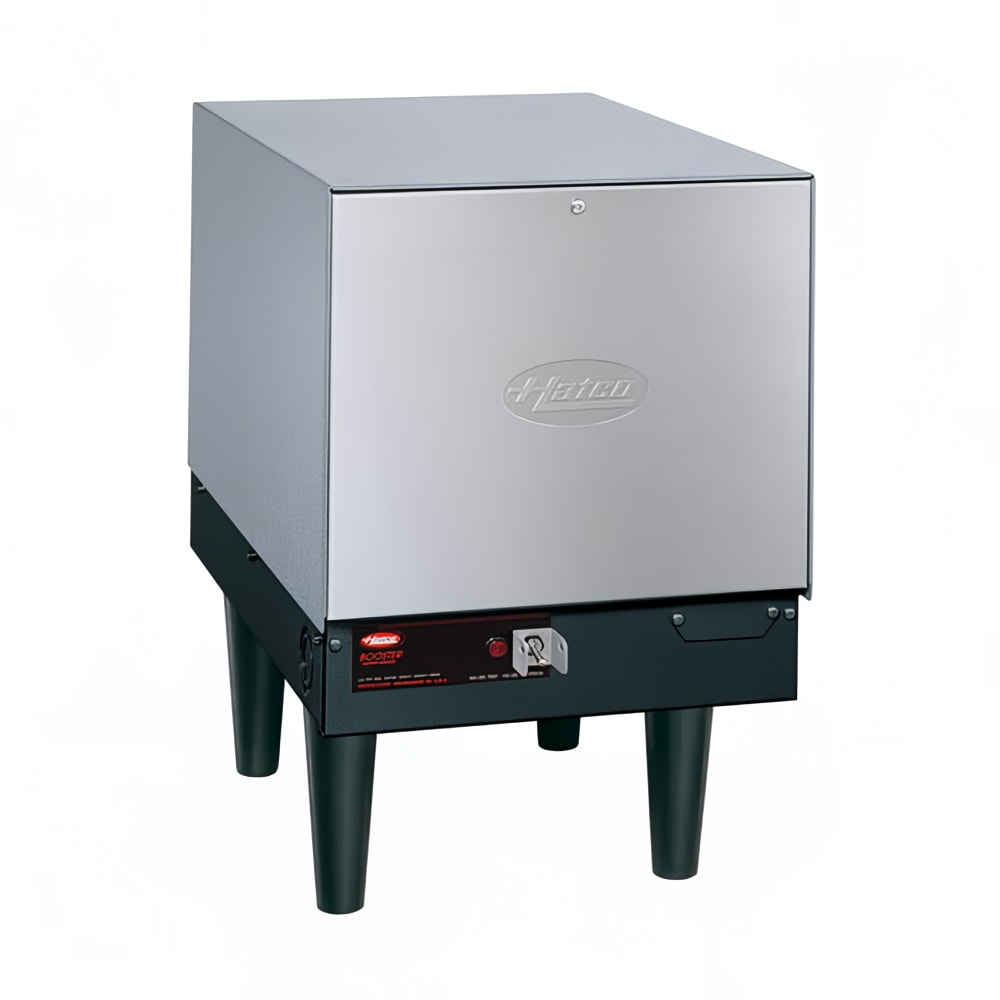

Hatco C-18 Compact Booster Water Heater, 6 Gallon, 18 kW, 240v/3ph
Retail Price: $5,216.00
$2,868.80 /Each
Selected Voltage: 240V, 3 Phase
| 240V, 3 Phase |
| 208V, 1 Phase |
| 240V, 1 Phase |
| 480V, 3 Phase |
Hatco C-18 Description
The Hatco C-18 compact booster water heater is designed to warm water for the final rinse needed for dishes and flatware. It brings water to 180 degrees Fahrenheit to ensure that all bacteria have been killed and items have been properly sanitized. Temperatures in this unit are monitored with a calibrated immersion thermostat and two temperature and pressure gauges. Included are a pilot indicator light, a temperature and pressure relief valve, and a pressure-reducing valve.
With fiberglass insulation, the Hatco C-18 compact booster water heater reduces how much heat is lost from the unit. The body has a powder-coated silver hammertone finish, and the swing-away front panel is constructed of durable stainless steel. In order to prevent the formation of scale and corrosion, the tank is lined with Castone®. For safety reasons, this water heater cuts off when water levels get too low, and a switch keeps temperatures from getting too high.
- Maximum 181 GPH at 40-degree-F rise
- Maximum 103 GPH at 70-degree-F rise
- 6-gal. storage capacity
- 2 temperature and pressure gauges
- Pressure and temperature relief valve
- Pressure-reducing valve
- Pilot indicator light
- On/off switch
- Prevents burnout with low-water cut-off
- High-temperature limit control
- Reaches optimal sanitation temperatures
- Swing-away front panel
- Panel made of durable stainless steel
- Control fuses and transformer
- Accessible probes and elements
- Fiberglass insulation
- Castone-lined tank provides corrosion protection
- Hammertone finish with silver powder coating
- Slide mounting brackets (sold separately)
- 6-in. legs
- Calibrated immersion thermostat
- Factory plumbed and wired
- Fittings for inlet and outlet
- 3⁄4-in. NPT pipe
- 13 1⁄16 in. W x 26 in. D x 19 39⁄50 in. H
- 43.4 A, 18 kW
- 240 V/60 Hz/3 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hatco C-18 within the 48 contiguous states.
From The Manufacturer
Compact Booster Heater, electric, 6-gallon storage capacity, electric operation, 18-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, NSF, cUL, UL, 240v/60/3ph
Hatco C-18 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hatco |
| 40F Recovery (gph) | 181 |
| 70F Recovery (gph) | 103 |
| Amps | 43.4 |
| Capacity (gallons) | 6 |
| Heat | Electric |
| Hertz | 60 |
| kW | 18 |
| Phase | 3 |
| Product | Booster Heaters |
| Product Type | Dishwashing Equipment & Supplies |
| Usage Level | Medium Duty |
| Voltage | 240 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts |
| Watts | 11 - 20 |
| Width (in) | 13 |
| Weight | 120.00 |
Important Prop 65 information for California residents.
Compare to Similar Items
| Attributes |
Hatco C-18 Hatco C-18 Compact Booster Water Heater, 6 Gallon, 18 kW, 240v/3ph Current Item |
|||
|---|---|---|---|---|
| Customer Rating |
|
|
|
|
| Price | $2,868.80 / Each | $2,868.80 / Each | $2,868.80 / Each | $2,868.80 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping | Free Shipping |
| Usage Level | Medium Duty | Medium Duty | Medium Duty | Medium Duty |
| 40F Recovery (gph) | 181 | 181 | 181 | 181 |
| 70F Recovery (gph) | 103 | 103 | 103 | 103 |
| Capacity (gallons) | 6 | 6 | 6 | 6 |
| Width (in) | 13 | 13 | 13 | 13 |
| Watts | 11 - 20 | 11 - 20 | 11 - 20 | 11 - 20 |
| Heat | Electric | Electric | Electric | Electric |
| Voltage | 240 | 208 | 240 | 480 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts |
