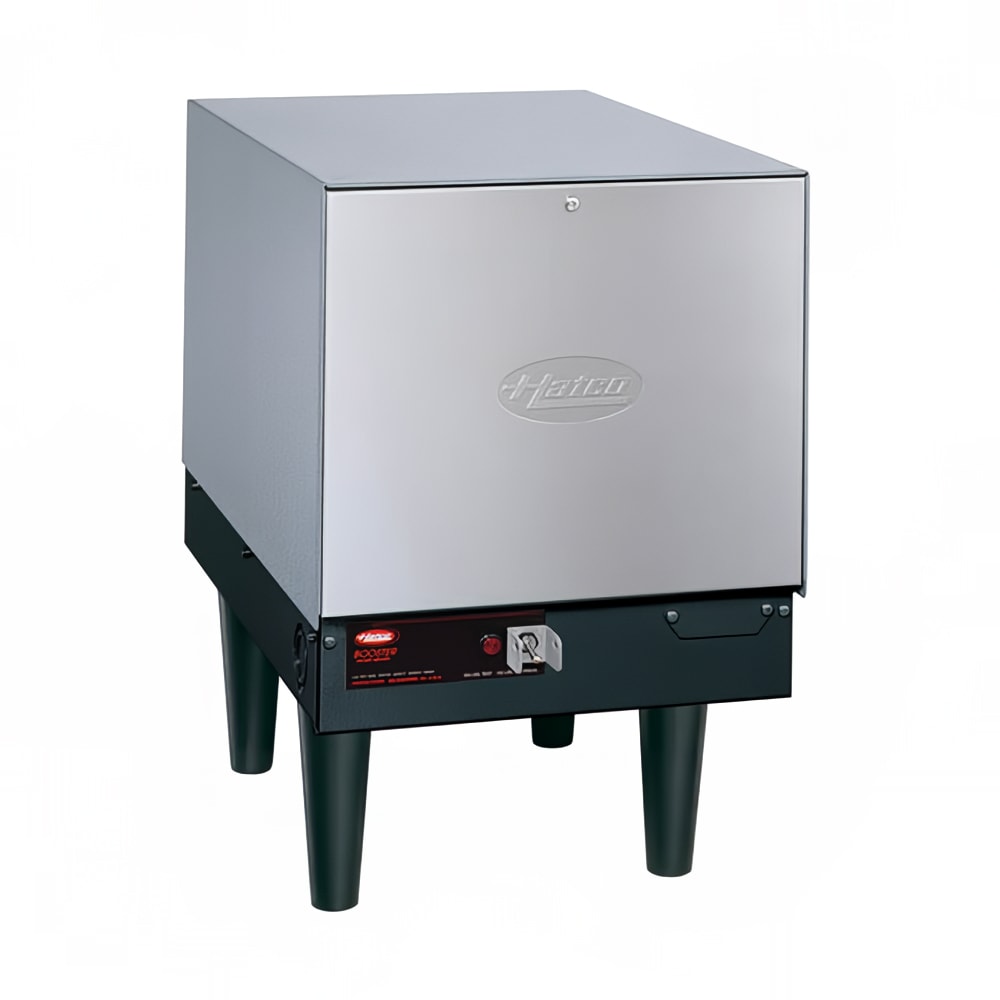

Hatco C-18 Compact Booster Water Heater, 6 Gallon, 18 kW, 240v/1ph
Retail Price: $5,216.00
$2,868.80 /Each
Selected Voltage: 240V, 1 Phase
| 240V, 1 Phase |
| 208V, 1 Phase |
| 240V, 3 Phase |
| 480V, 3 Phase |
Hatco C-18 Description
Featuring a powder-coated hammertone finish and a stainless steel front panel, the Hatco C-18 compact booster water heater is designed for heavy use. Its Castone®-lined tank helps prevent the buildup of limestone and corrosion over time. With this unit, operators can decide whether to use the 6-inch legs or the slide mounting kit, which is sold separately. To prevent element burnout, a low-water cut-off feature is included, as well as a high-temperature limit switch and a pilot indicator light to support safety. This unit is insulated with fiberglass to reduce the amount of heat lost from the tank.
The Hatco C-18 compact booster water heater is pre-wired and pre-plumbed at the factory for quick installation. It is controlled with a calibrated immersion thermostat and an on and off switch and regulated by a temperature and pressure relief valve and a pressure-reducing valve. This booster comes with two temperature and pressure gauges, a 3⁄4 pipe, and fittings for flowing water.
- Holds 6 gal. of hot water at 180 degrees F for optimum sterilization
- Maximum 181 GPH at 40-degree-F rise
- Maximum 103 GPH at 70-degree-F rise
- Low-water cut-off feature
- High-temperature limit switch
- Swing-away front panel made of stainless steel
- Accessible probes and elements
- Transformer and control fuses
- Fiberglass insulation
- Hammertone finished body is powder-coated with silver
- Tank is Castone lined to minimize limescale buildup
- 6-in. legs
- Optional mounting slide brackets (sold separately)
- 2 temperature and pressure gauges
- Temperature and pressure relief valve
- Pressure-reducing valve
- Pilot indicator light
- On/off switch
- 3⁄4-in. NPT pipe
- Fittings for inlet and outlet
- 13 1⁄16 in. W x 26 in. D x 19 39⁄50 in. H
- 75 A, 18 kW
- 240 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hatco C-18 within the 48 contiguous states.
From The Manufacturer
Compact Booster Heater, electric, 6-gallon storage capacity, electric operation, 18-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, NSF, cUL, UL, 240v/60/1ph
Hatco C-18 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hatco |
| 40F Recovery (gph) | 181 |
| 70F Recovery (gph) | 103 |
| Amps | 75 |
| Capacity (gallons) | 6 |
| Heat | Electric |
| Hertz | 60 |
| kW | 18 |
| Phase | 1 |
| Product | Booster Heaters |
| Product Type | Dishwashing Equipment & Supplies |
| Usage Level | Medium Duty |
| Voltage | 240 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts |
| Watts | 11 - 20 |
| Width (in) | 13 |
| Weight | 120.00 |
Important Prop 65 information for California residents.
Compare to Similar Items
| Attributes |
Hatco C-18 Hatco C-18 Compact Booster Water Heater, 6 Gallon, 18 kW, 240v/1ph Current Item |
|||
|---|---|---|---|---|
| Customer Rating |
|
|
|
|
| Price | $2,868.80 / Each | $2,868.80 / Each | $2,868.80 / Each | $2,868.80 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping | Free Shipping |
| Usage Level | Medium Duty | Medium Duty | Medium Duty | Medium Duty |
| 40F Recovery (gph) | 181 | 181 | 181 | 181 |
| 70F Recovery (gph) | 103 | 103 | 103 | 103 |
| Capacity (gallons) | 6 | 6 | 6 | 6 |
| Width (in) | 13 | 13 | 13 | 13 |
| Watts | 11 - 20 | 11 - 20 | 11 - 20 | 11 - 20 |
| Heat | Electric | Electric | Electric | Electric |
| Voltage | 240 | 208 | 240 | 480 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts |
