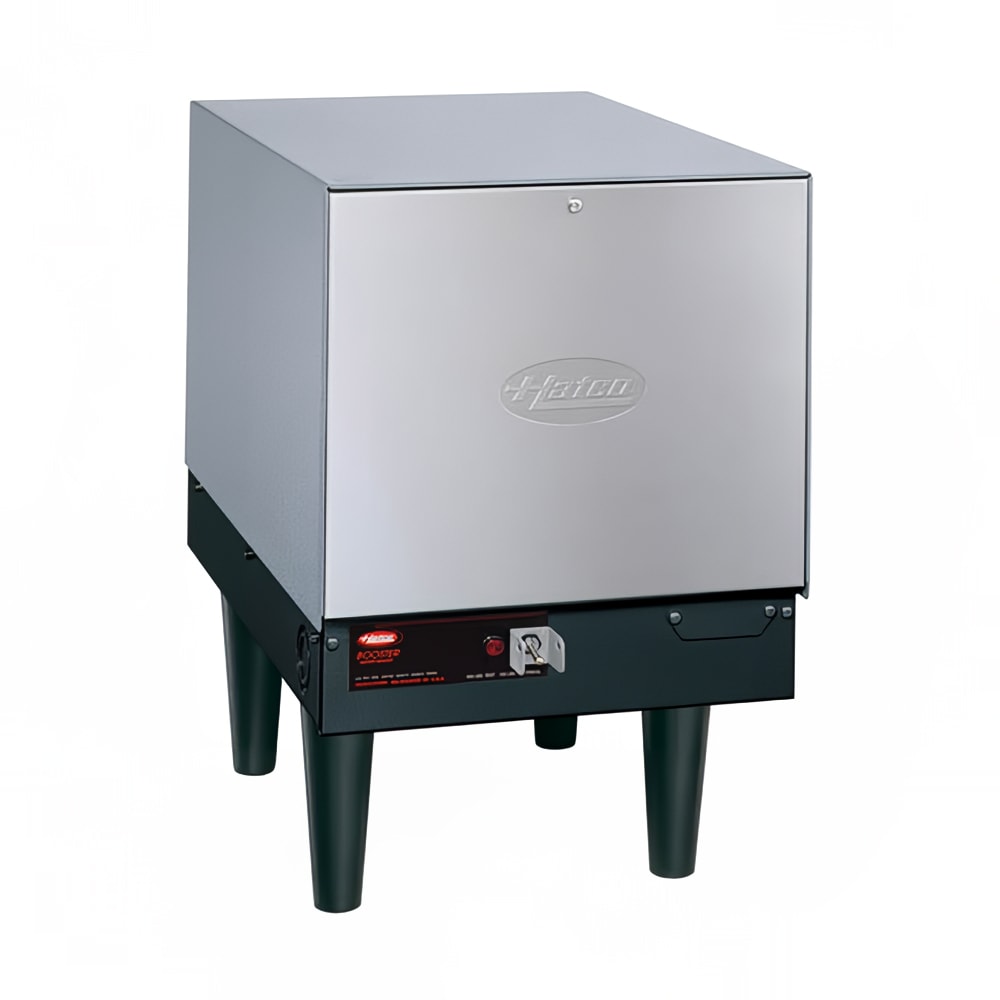

Hatco C-18 Compact Booster Water Heater, 6 Gallon, 18 kW, 208v/1ph
Retail Price: $5,216.00
$2,868.80 /Each
Selected Voltage: 208V, 1 Phase
| 208V, 1 Phase |
| 240V, 1 Phase |
| 240V, 3 Phase |
| 480V, 3 Phase |
Hatco C-18 Description
The Hatco C-18 compact booster water heater holds six gallons at the required sanitizing temperature of 180 degrees Fahrenheit. This unit can be kept close to the dishwasher using either the slide mounting brackets or the 6-inch legs. For quick access to elements and probes, the control fuses are located behind the swing-away stainless steel front panel. The tank is lined with Castone® to prevent the buildup of limestone and rust, and the exterior is powder-coated steel with a hammertone finish.
Controlled with an on/off switch and a calibrated immersion thermostat, the Hatco C-18 compact booster water heater includes a temperature and pressure relief valve and a pressure-reducing valve. Ensuring the unit is safe to use, a low-water cut-off and a high-temperature limit control help prevent burnout and overheating. Fiberglass insulation ensures that heat is not lost from the tank for efficiency.
- Provides 180-degree-F water for sanitizing
- Maximum 181 GPH at 40-degree-F rise
- Maximum 103 GPH at 70-degree-F rise
- Holds 6 gal. of hot water
- Powder-coated silver hammertone on the body
- Stainless steel swing-away front panel
- Castone-lined tank prevents limestone buildup
- Insulated with fiberglass
- Easy to install with 6-in. legs or slide brackets (brackets sold separately)
- Calibrated immersion thermostat
- Control fuses and transformer provide quick probe and element access
- Pre-plumbed and pre-wired
- High-temperature limit control
- Temperature and pressure relief valve
- Power switch
- Low-water cut-off
- 2 temperature and pressure gauges
- Pressure-reducing valve
- Pilot indicator valve
- 3⁄4-in. NPT pipe
- Fittings for inlet and outlet
- 13.06 in. W x 26 in. D x 19.78 in. H
- 86.6 A, 18 kW
- 208 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hatco C-18 within the 48 contiguous states.
From The Manufacturer
Compact Booster Heater, electric, 6-gallon storage capacity, electric operation, 18-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, NSF, cUL, UL, 208v/60/1ph
Hatco C-18 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hatco |
| 40F Recovery (gph) | 181 |
| 70F Recovery (gph) | 103 |
| Amps | 86.6 |
| Capacity (gallons) | 6 |
| Heat | Electric |
| Hertz | 60 |
| kW | 18 |
| Phase | 1 |
| Product | Booster Heaters |
| Product Type | Dishwashing Equipment & Supplies |
| Usage Level | Medium Duty |
| Voltage | 208 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts |
| Watts | 11 - 20 |
| Width (in) | 13 |
| Weight | 120.00 |
Important Prop 65 information for California residents.
