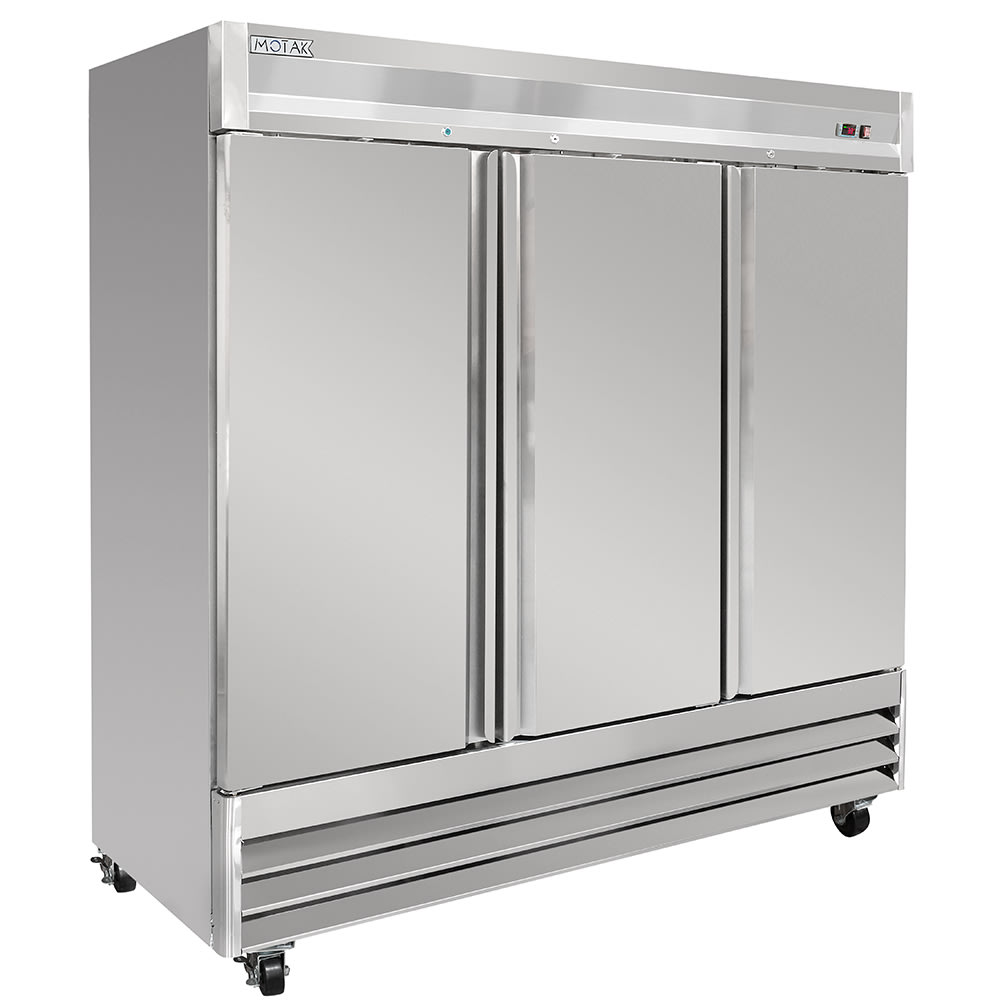

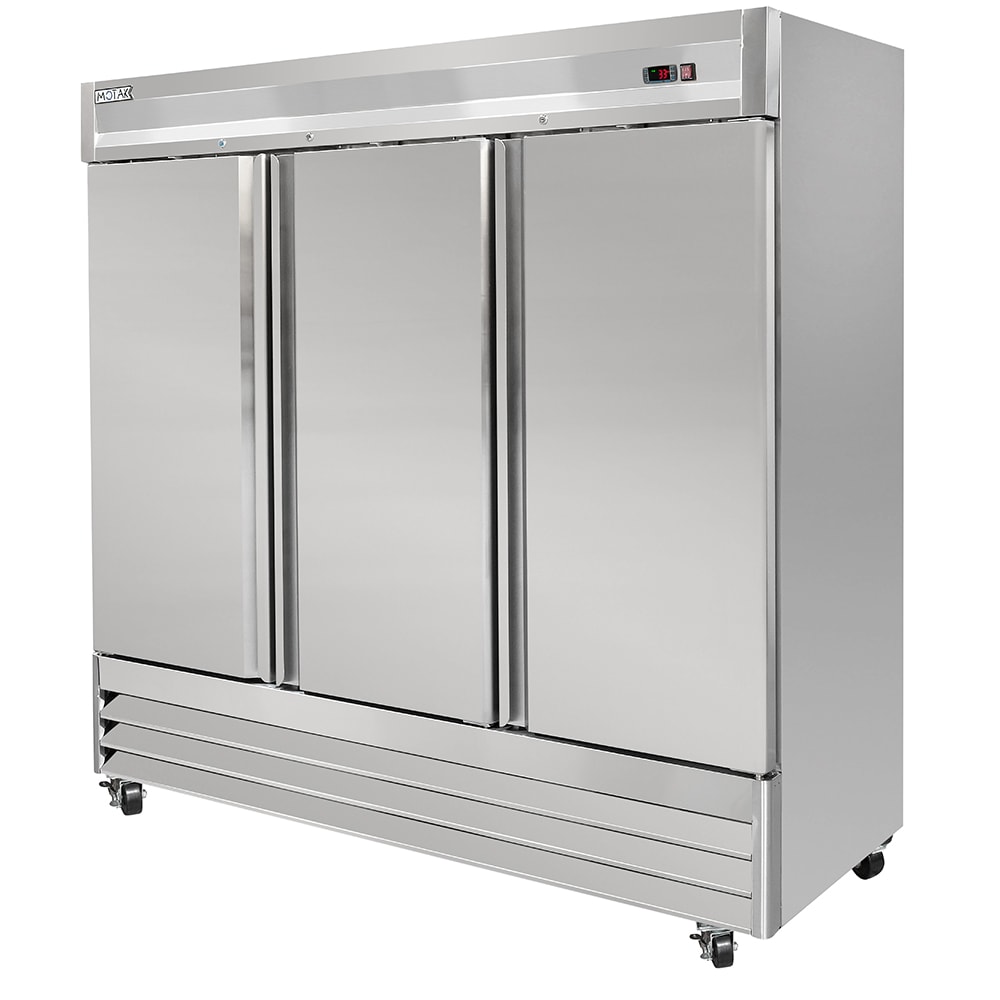

Centaur CSD-3DR-BAL 81" Three Section Reach-In Refrigerator, (3) Solid Doors, 115v

Image may not depict product color, inclusions or accessories.

Ships Free

IN STOCK: Ships in 1 Business Day

(0 reviews)Write a Review
Retail Price: $8,266.67
$3,199.00 / Each

Image may not depict product color, inclusions or accessories.

Centaur CSD-3DR-BAL Description

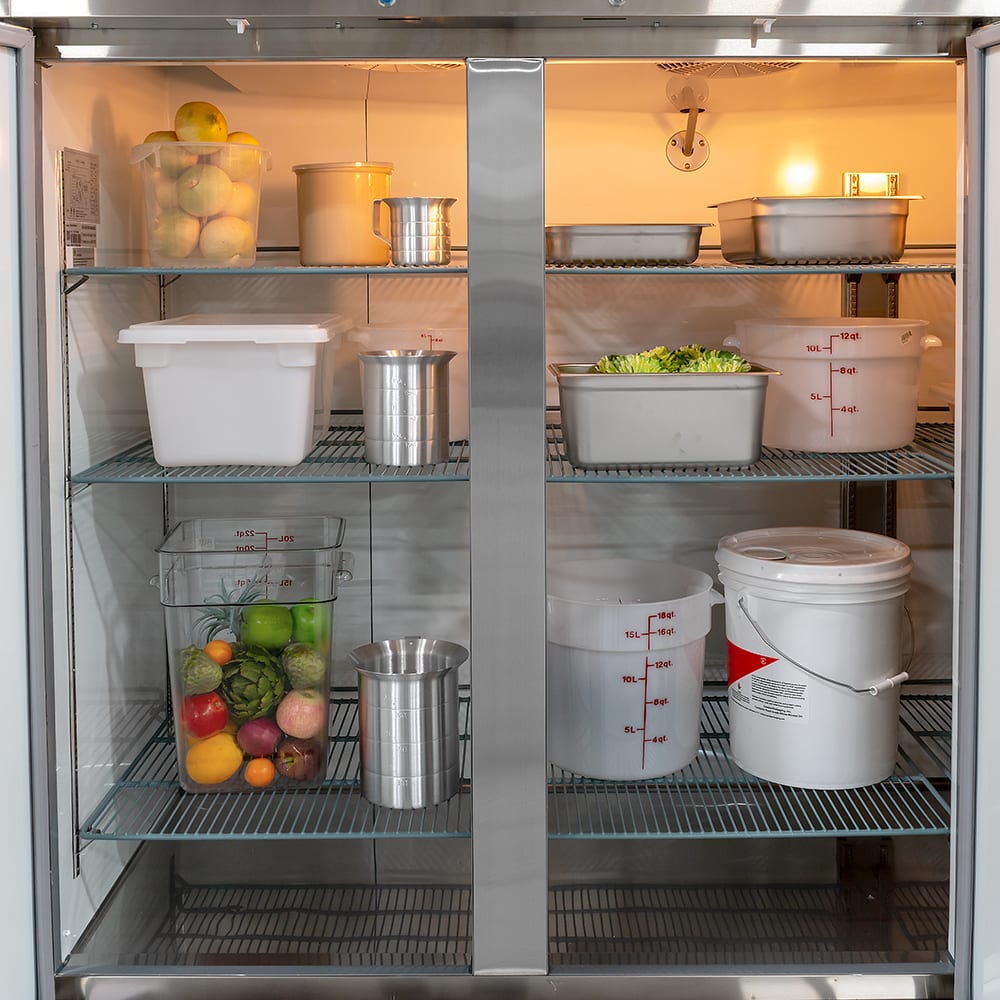

The Centaur CSD-3DR-BAL reach-in refrigerator has three sections for holding food and beverages. These products are held on nine PVC-coated wire shelves that resist corrosion and provide ideal airflow. With a stainless steel floor, the interior is easy to clean. Visibility is enhanced by the white aluminum walls. The unit comes with doors that stay open past 90 degrees to make loading product simple, but at less than 90 degrees they self-close to retain cold air. This cold air is kept inside with the polyurethane insulation.

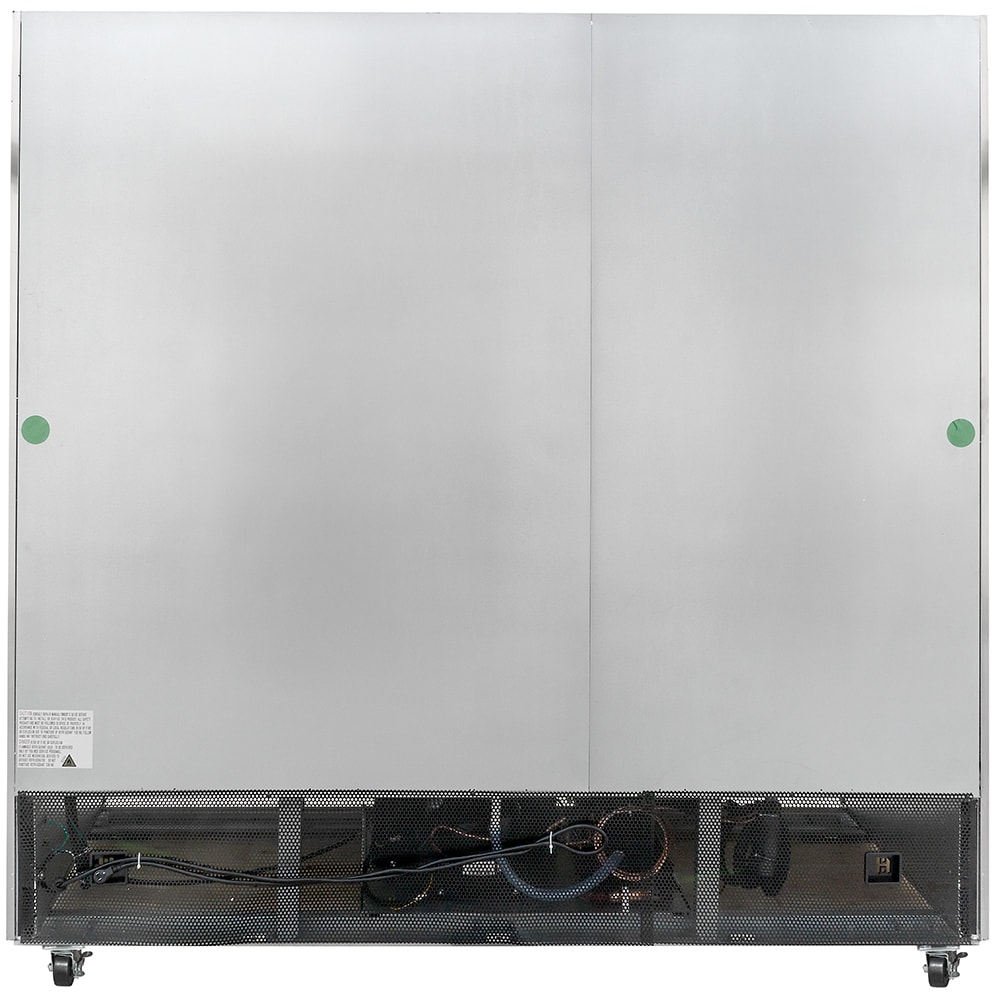

To maintain cool temperatures, this unit uses R134A refrigerant. The temperature ranges from 34 to 38 degrees Fahrenheit and is easy to monitor on the digital display. To reduce the risk of ice buildup, the condensate heater has hot gas refrigerant lines built in the condensate pan. The Centaur CSD-3DR-BAL reach-in refrigerator has a bottom-mount refrigeration system that does not easily overheat since it is located in a cooler area of most commercial kitchens.

Product Details

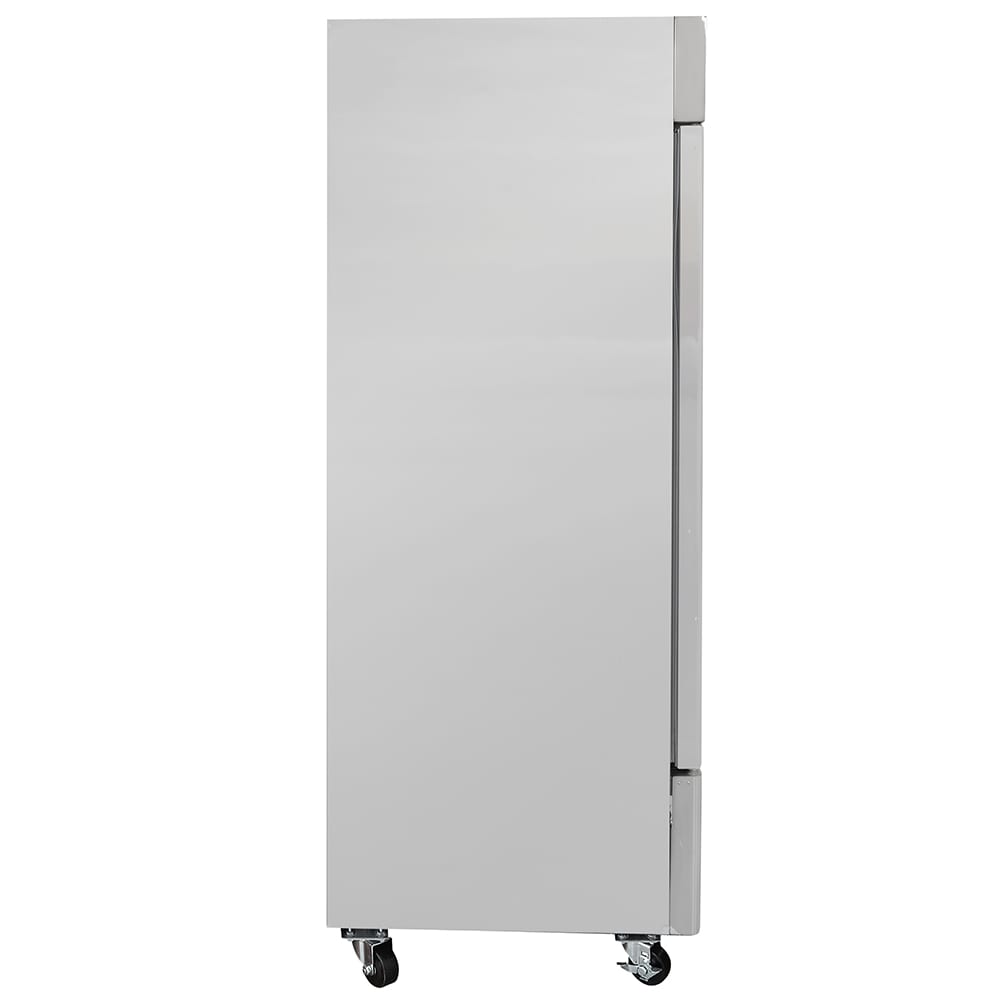

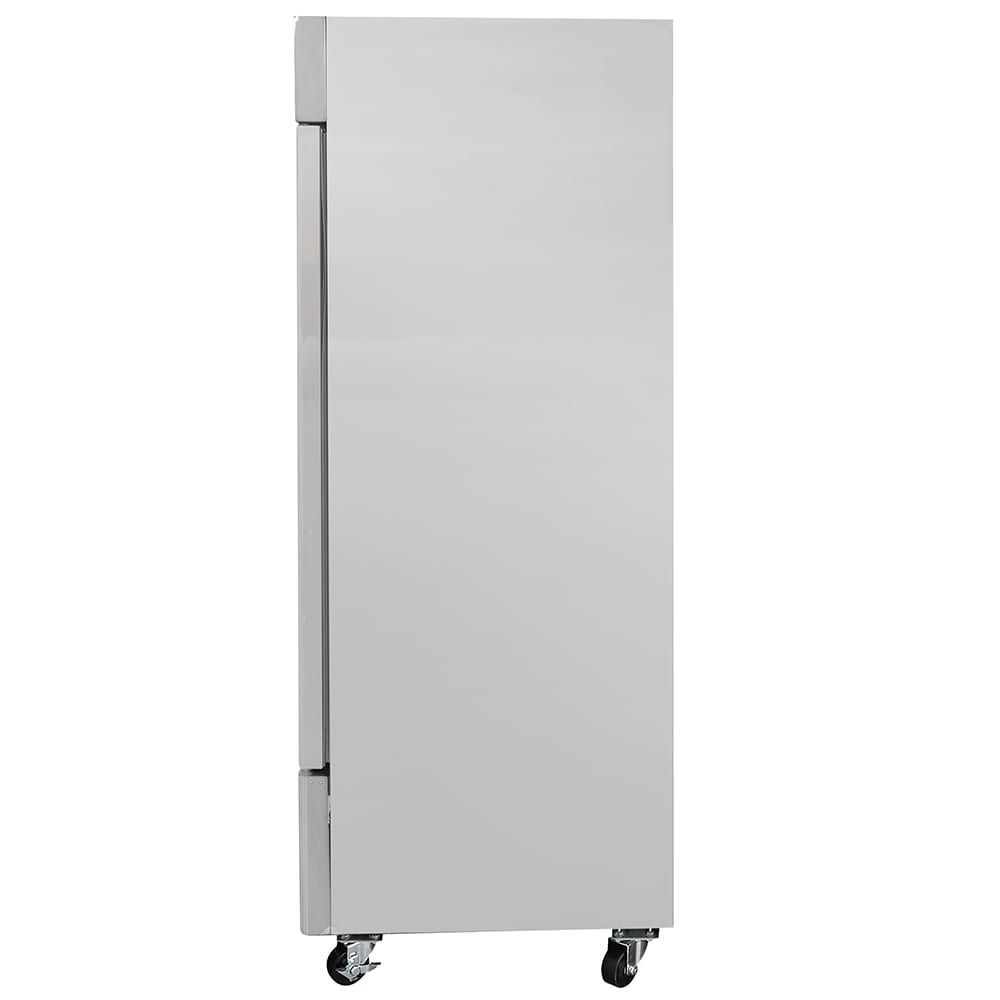

  • Durable and heavy duty with the stainless steel front and sides
  • White aluminum interior resists corrosion and brightens the interior
  • Stainless steel interior floor facilitates cleaning

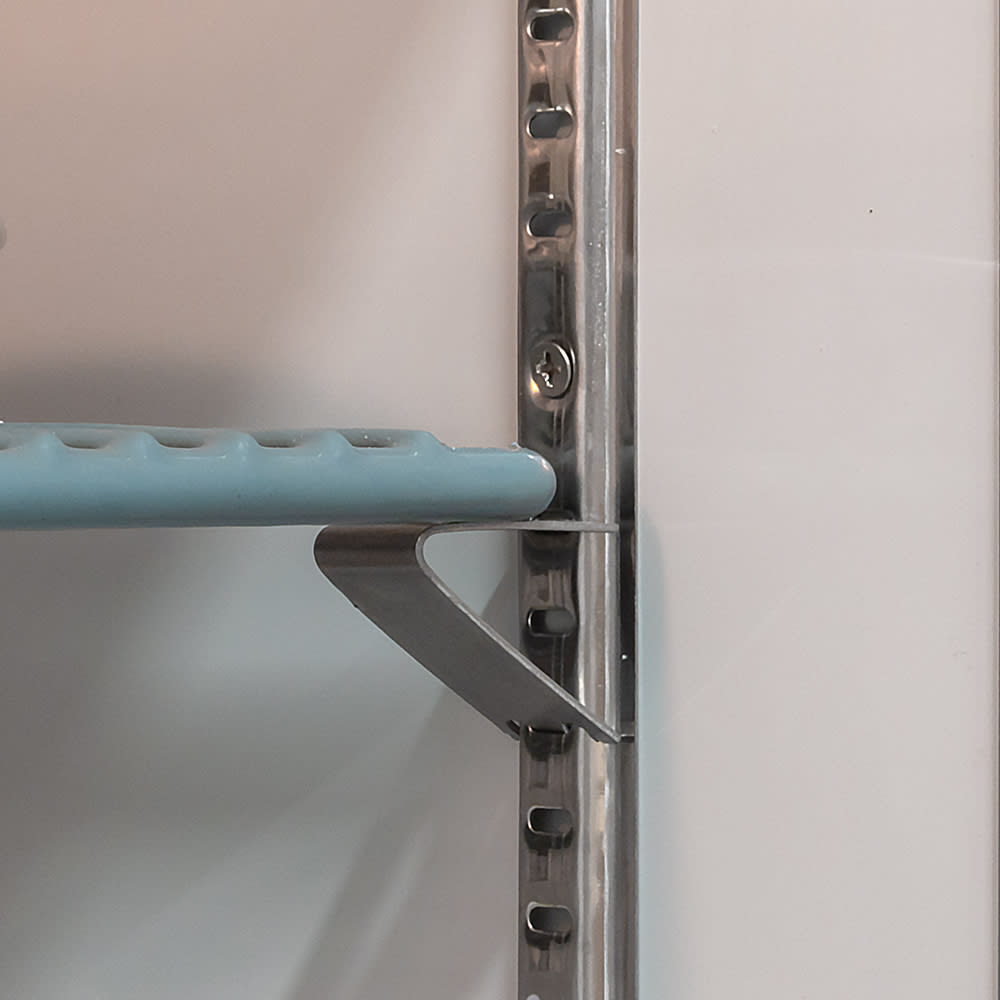

  • 9 epoxy-coated shelves hold product
  • Structure is created and cold air is retained with the polyurethane cabinet insulation

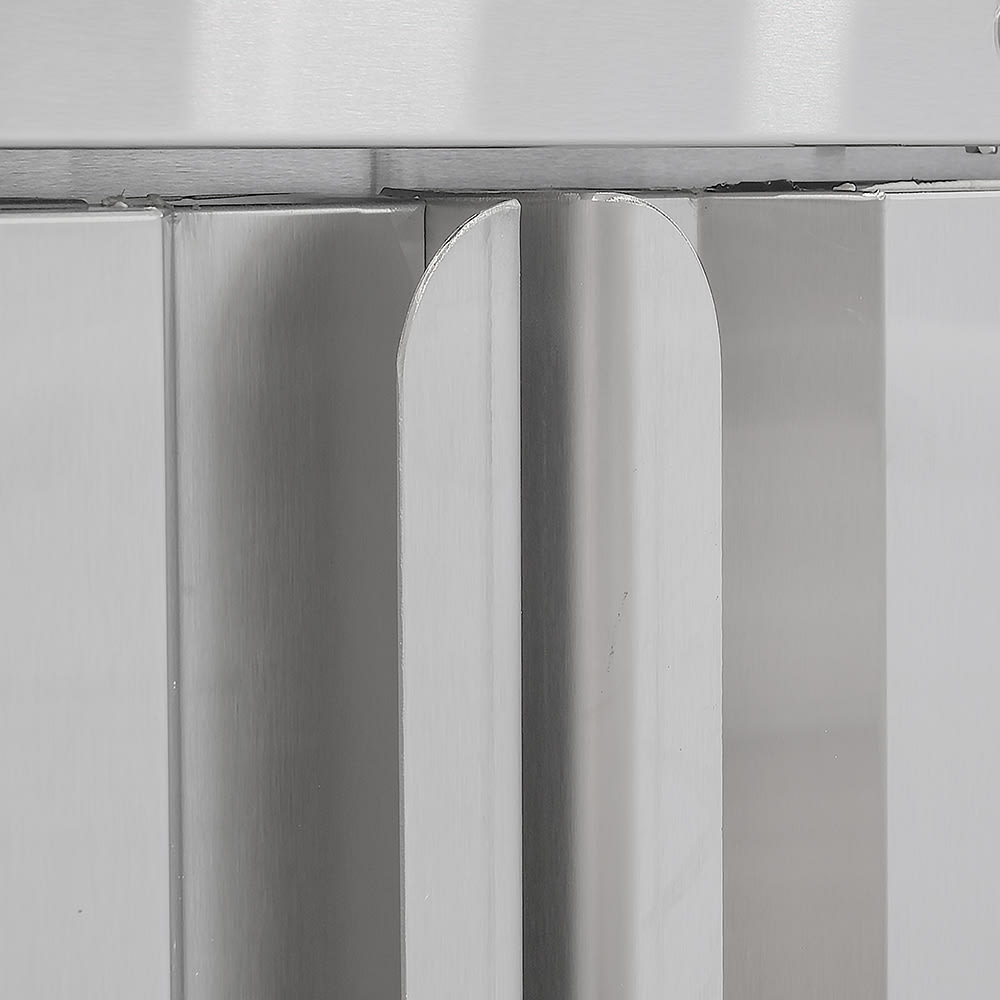

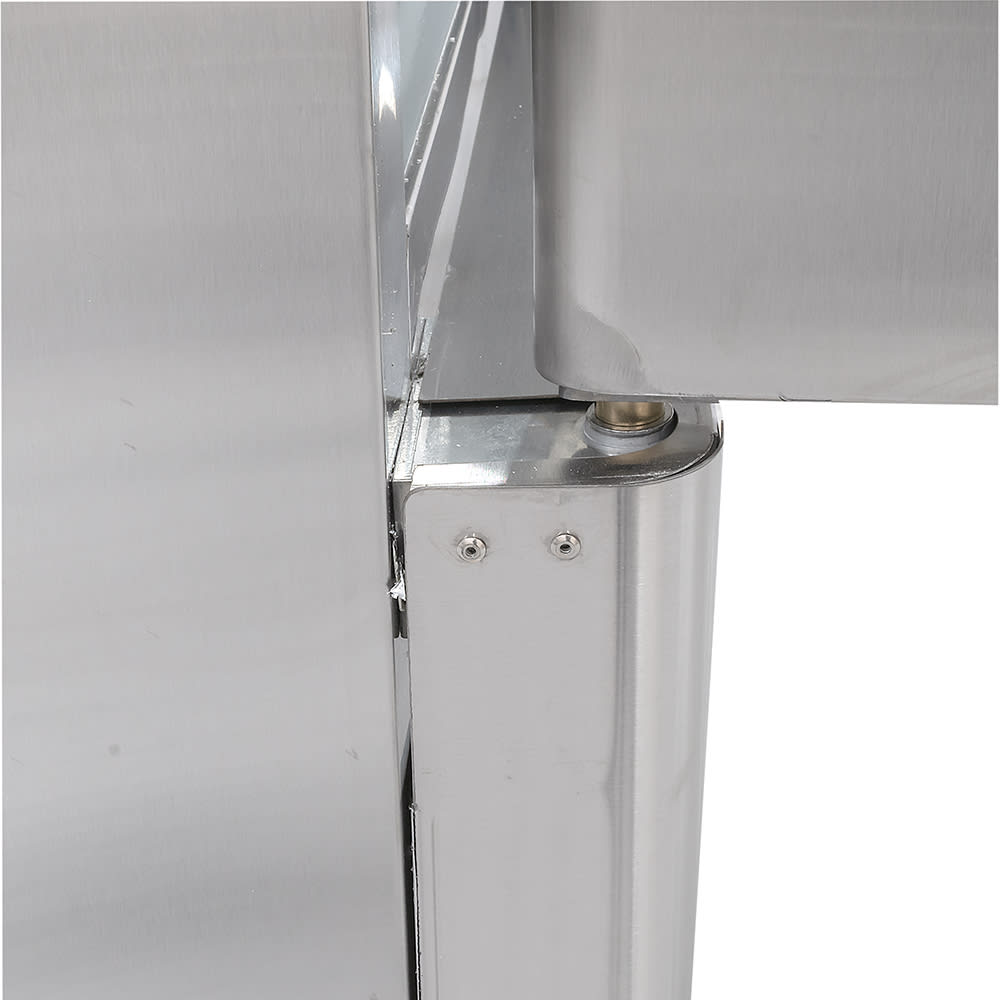

  • 3 doors stay open past 90 degrees for easily loading product and cleaning the cabinet

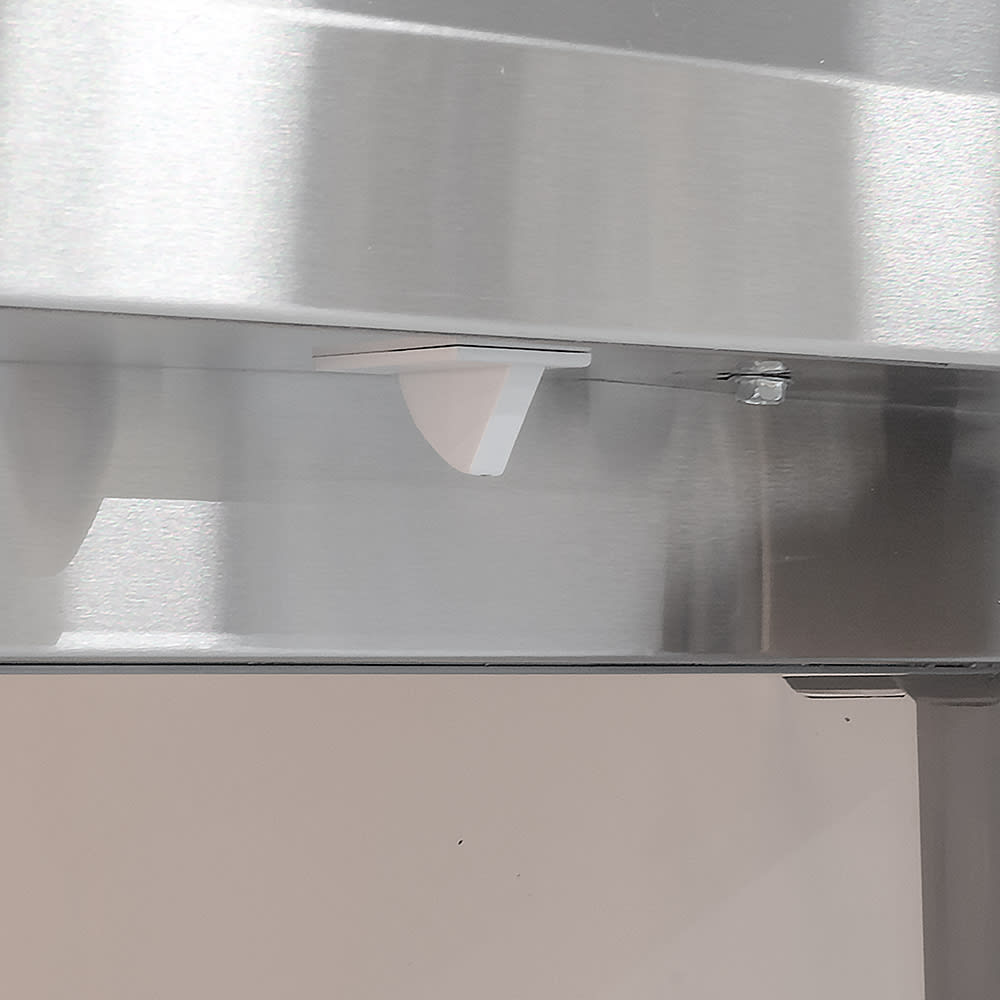

  • Doors self-close at less than 90 degrees to prevent cold air from leaking
  • 115 V/60 Hz/1 ph, 10 A, 58 HP, 10-ft. cord with a NEMA 5-15 plug
  • Overall Dimensions: 81 in. W x 32.7 in. D x 82.7 in. H
  • cULus and UL-EPH listed

Product Features

Centaur csd3drbal Features

Bottom-mount Refrigeration System

  • Slide-out condenser is easy to access
  • Digital controls display internal temperature
  • Temperature range: 34-38 degrees F
  • Cool temperatures are maintained with R134A refrigerant
  • Prevents ice buildup since the condensate heater has hot gas refrigerant lines built in

The reach-in refrigerators buyers' guide provides various uses for reach-in units.

Centaur Plus™ Reach-In Refrigerator, three-section, 81"W x 32-7/10"D , 72.0 cu. ft., self-contained bottom mount refrigeration, 34° to 38°F temperature range, solid state thermostat with digital display, (9) epoxy coated shelves, field reversible door with full length handle, slide out condenser, white aluminum interior & door liner, rear aluminum exterior, stainless steel front & sides, casters, R134a, 5/8 HP, cULus, UL EPH

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Centaur CSD-3DR-BAL Specifications

PDF Spec Sheet
Manufacturer Centaur
Warranty 2 year parts & labor
Compressor Location Bottom
Cubic Feet 72
Door Type Solid
Doors Full
Hertz 60
Interior Material Aluminum
Sections 3

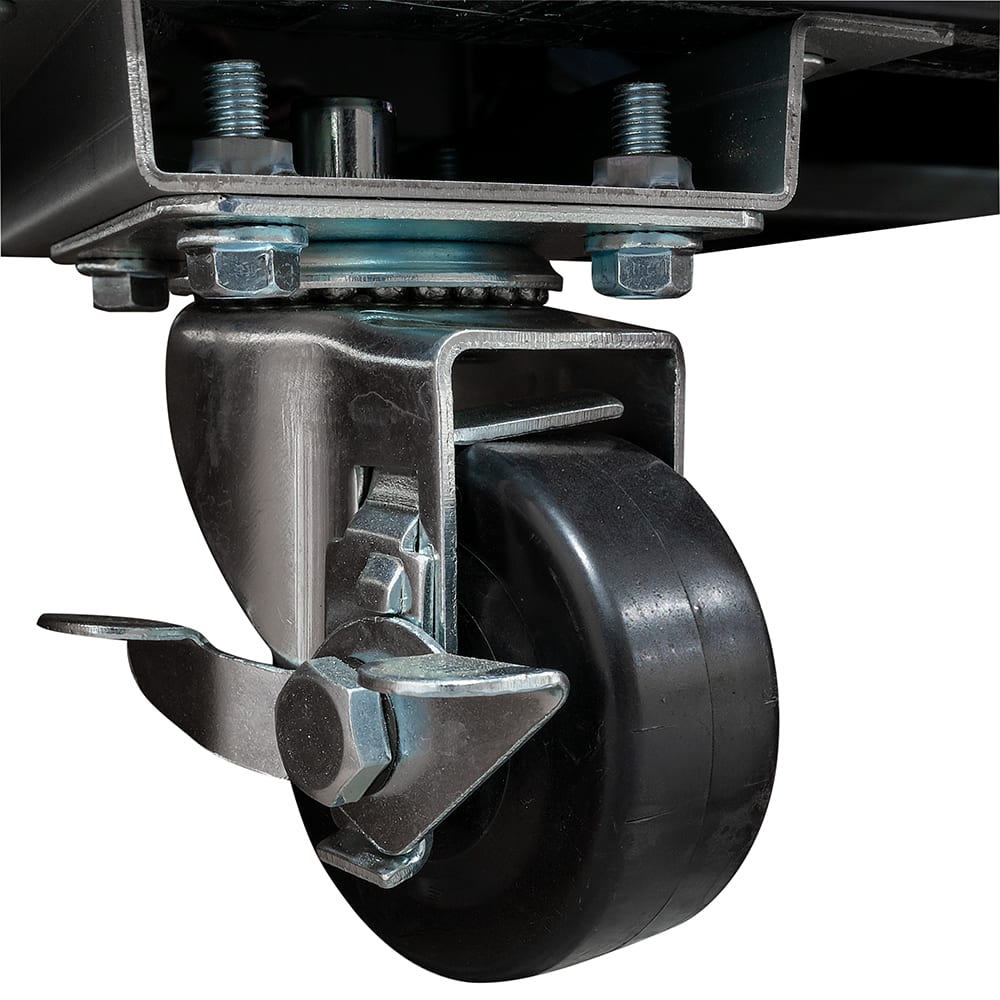

Supports Casters
Voltage 115
Width (in) 81
Refrigerant R-134a
Width (in) Range 73 - 84
Phase 1
Hinge Configuration Left/Right
Additional Info Contact Customer Service for Additional Information
Capacity Range 58 - 74 cu ft
Evaporator Type Capillary Tube
Product Reach-In Refrigerator
Product Type Commercial Refrigeration
Thermometer Type Digital
Series Centaur® Plus™
Weight 669.00
Centaur CSD-3DR-BAL Certifications
  • UL
