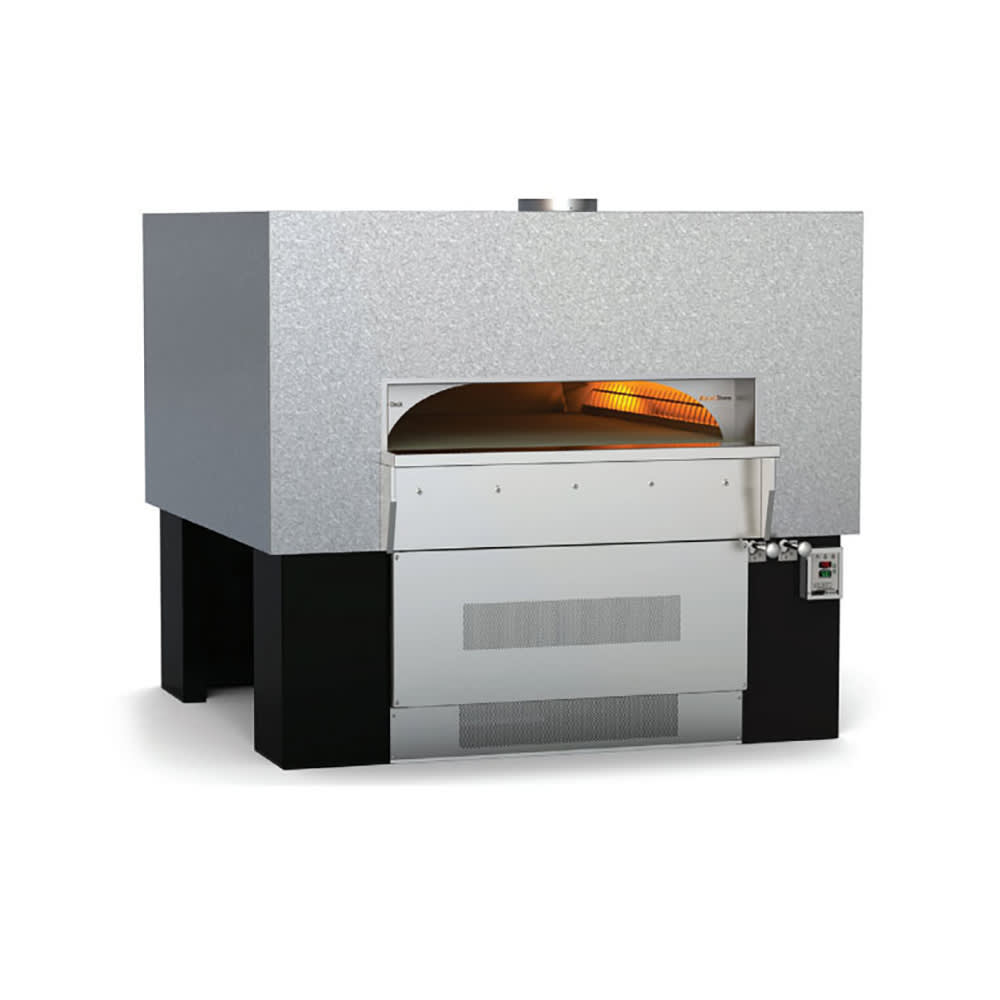

Wood Stone FIREDECK9690 Stone Hearth Deck Oven - Cast-Ceramic
Custom Pricing
Made to Order
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Non Returnable Item
White Glove Delivery
Contact your sales rep for availability
Wood Stone FIREDECK9690 Description

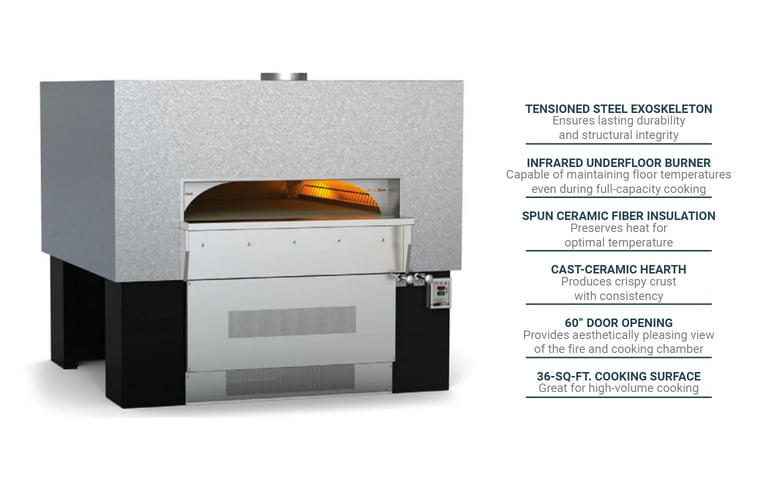

Great for cooking pizzas of varying sizes at high volumes, the Wood Stone FIREDECK9690 Stone Hearth Deck Oven (WS-FD-9690) has a 39-square-foot cooking surface that can accommodate 25 12-inch pizzas at once. Its underfloor infrared burner regulates base temperatures even at full capacity; while its 60-inch doorway provides a clear view of its live fire and cooking chamber. For extended durability throughout rigorous use, it has a steel frame and a tensioned steel exoskeleton surrounding its monolithic, cast-ceramic hearth. To complement existing equipment, its top, sides, front, and back are finished with galvanized steel, and its base is painted black.
For versatile cooking, the Wood Stone FIREDECK9690 stone hearth deck oven can be operated with gas, wood, or a combination of both. It has a 12-inch flue collar for ventilation and a radiant flame wall for an aesthetically pleasing heat source; to preserve generated the burners' temperatures, its tensioned steel exoskeleton is insulated with spun ceramic fibers. Overall, this unit measures 961/4 inches wide by 971/2 inches deep by 873/4 inches high, and to simplify setup, it includes a set of casters that should be removed once installed.
Product Details
- Accommodates (60) 8-in. pizzas, (40) 10-in. pizzas, (25) 12-in. pizzas, (16) 16-in. pizzas, (12) 18-in. pizzas, or (6) 20-in. pizzas
- 39-sq-ft. cooking surface
- High-temperature cast-ceramic hearth and dome
- Radiant flame wall
- Thermostatically controlled gas infrared burner
- Underfloor infrared burner regulates basal temperatures
- 6-in.-thick monolithic cast-ceramic hearth
- 4-in.-thick cast-ceramic monolithic dome
- Tensioned steel exoskeleton
- Ceramic fiber insulation
- Black-painted steel frame
- Stainless steel mantle
- Galvanized steel front, top, sides, and back
- 12-in. flue collar
- Ships fully assembled and is mounted on casters (must be removed when installed)
- Must be connected to grease-rated chimney or exhaust hood
- Requires 1-in. side clearance, 6-in. top clearance, and 6-in. door clearance
- Tech startup included
Dimensions & Utilities
- Door opening: 60 in. W x 10 in. H
- Cooking area: 74 in. W x 77 in. D
- Overall: 961/4 in. W x 971/2 in D x 873/4 in. H
- 2 A
- 120 V/50-60 Hz/1 ph
- 1-in. FNPT connection
Product Features
*Wood Stone FIREDECK9690 is free shipping eligible. Users must be signed in with an order total greater than $500 and be shipping to the 48 contiguous states.
From The Manufacturer
Stone hearth deck oven, Gas or wood-burning options. 60-in. W x 10-in. H opening, 72-in. W x 76-in. D cooking surface, high-temperature cast ceramic hearth and dome, radiant flame wall, thermostatically-controlled gas infrared burner, 4,000-lb. monolithic cast-ceramic floor, 2,400-lb. cast-ceramic monolithic dome, tensioned steel exoskeleton, steel frame, steel enclosure, 12-in. flue collar, 120v
*Image may not depict product color, inclusions or accessories.
Wood Stone FIREDECK9690 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Wood Stone |
| Compartment Width (in) | 60 |
| Design | Flat Exterior |
| Gas Type | LP |
| Gas Type | NG |
| Hearth Material | Ceramic |
| Heat | Gas |
| No. of Compartments | 1 |
| Product | Wood-Fired Pizza Ovens |
| Product Type | Cooking Equipment |
| Rating | Better |
| Series | Fire Deck |
| Special Features | Dual Burner |
| Warranty | 1-year Against Defects in Material & Workmanship |
| Weight | 10000.00 |
Important Prop 65 information for California residents.

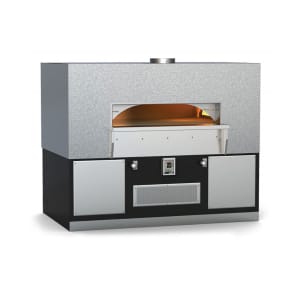

- Wood Stone FIREDECK9660

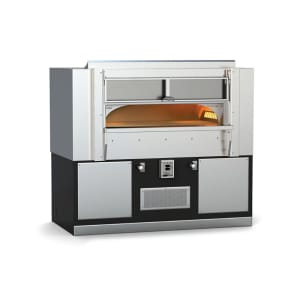

- Wood Stone FIREDECK8645

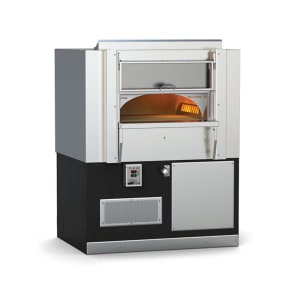

- Wood Stone FIREDECK6045

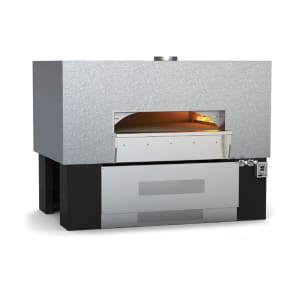

- Wood Stone FIREDECK11290

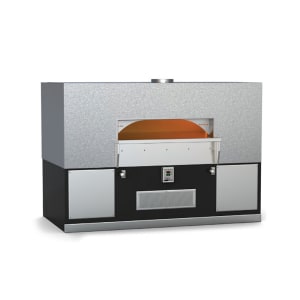

- Wood Stone FIREDECK11260
