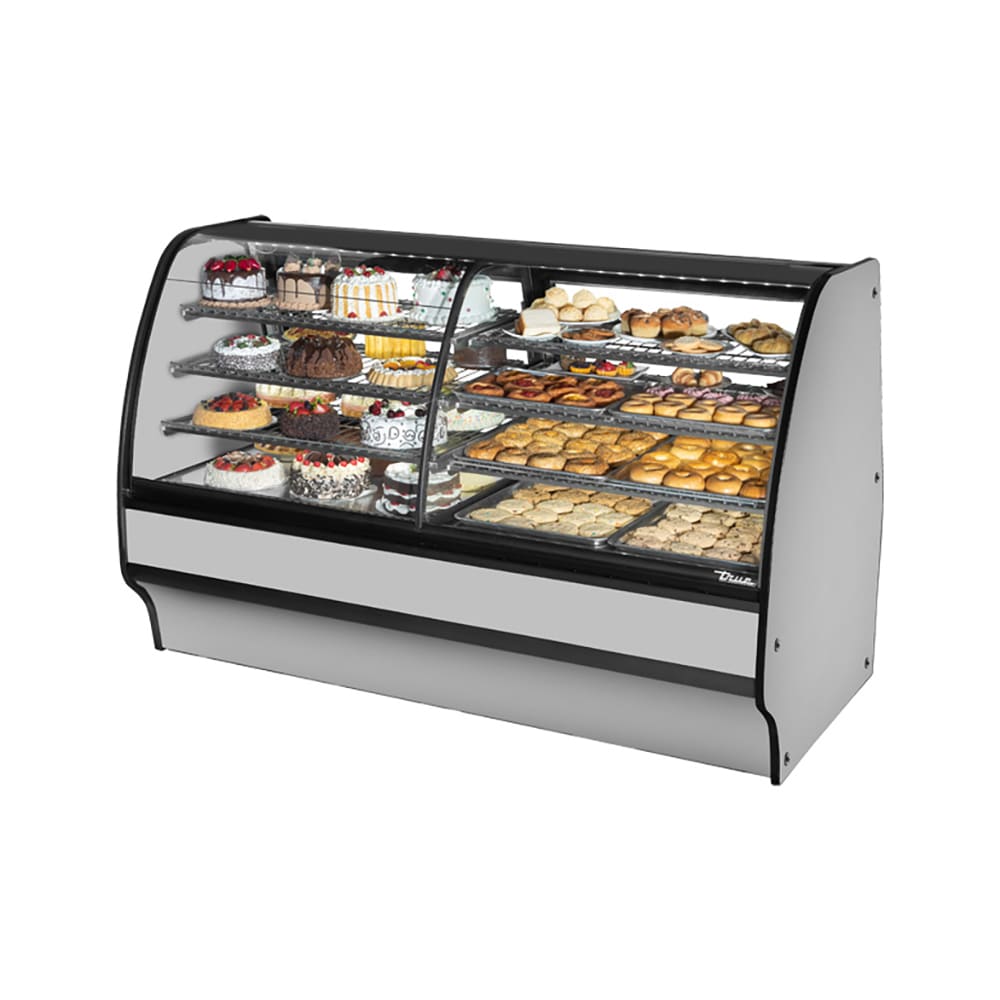

True TGM-DZ-77-SC/SC-S-S 77 1/4" Full Service Dual Zone Bakery Case w/ Curved Glass - 4 Levels, 115v

KaTom #: 598-TGMDZ77SCSCSS • MPN: TGM-DZ-77-SC/SC-S-S
  • 598-TGMDZ77SCSCSS Primary Thumbnail Image
Free Shipping Item
Lowest Price Guarantee

$8,864.75 /Each

Selected Color: Stainless/Stainless

Stainless/Stainless
Black
White
Stainless/White
 User Image
Ask a Foodservice Equipment Specialist

Attention: Order by 10-01-2026 to save before the price increases!

True Refrigeration TGM-DZ-77-SC/SC-S-S Description

Fueled with a R290 hydrocarbon refrigerant, the True Refrigeration TGM-DZ-77-SC/SC-S-S full-service dual-zone bakery case is designed to keep cakes, pies, and pastries in prime condition by holding at a desired temperature between 33 and 41 degrees Fahrenheit. One section of this unit is refrigerated while the other is meant for dry storage. To reduce the workload on its internal mechanics, it has a layer of high-density, polyurethane insulation that's foamed in place. It features an isolated capillary tubing system, while its condenser can be removed from the unit quickly for simple cleaning. To automate the process, it has a reverse fan mode to expel dust and crumbs.

Measuring 77 1⁄4 inches wide by 39 inches deep by 49 1⁄8 inches high, the True Refrigeration TGM-DZ-77-SC/SC-S-S full-service display case utilizes a three-tiered design to maximize internal storage space. This design is enabled by the six chrome-plated wire shelves that come with the unit, allowing it to hold eight 18-inch-long by 26-inch-deep display pans and (12) 12-inch-long by 18-inch-deep display pans. Its rear fits two sliding glass doors with 12-inch handles, while its front body features a curved viewing glass so patrons can see inside the cabinet; Its LED lighting system illuminates held cakes and pies. This unit's stainless silver body has an exterior made of aluminum and wood, while the stainless-colored interior is constructed of rolled steel.

  • Dual-zone design with 1 dry section and 1 refrigerated section
  • Cabinet holds (8) 18 in. L x 26 in. D display pans and (12) 12 in. L x 18 in. D display pans (not included)
  • Curved glass front fixed in place
  • 2 sliding glass doors in rear
  • 12-in. aluminum door handles
  • 3 tiers
  • 6 chrome-plated wire shelves
  • LED interior lighting system
  • Stainless silver exterior and interior
  • Steel frame with solid wooden sides and aluminum front
  • Cabinet interior constructed of rolled steel
  • High-density, foamed-in polyurethane for insulation
  • Welded frame mounted on leg levelers

  • R290 hydrocarbon refrigerant
  • Self-contained capillary tubing
  • Pull-out condensing unit eases cleaning and maintenance
  • Condenser motors reverse while idle to remove debris
  • Temperature range: 33-41 degrees F
  • Optional temperature range: 42-65 degrees F

  • 77 1⁄4 in. W x 39 in. D x 49 1⁄8 in. H
  • 10 A, 1⁄4 HP
  • 115 V/60 Hz/1 ph with 9-ft. NEMA 5-15P plug

*Image may not depict product color, inclusions or accessories.

*Free shipping on True Refrigeration TGM-DZ-77-SC/SC-S-S within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

Glass Merchandiser, dual zone (dry/refrigerated), 77-1/4"W, self-contained refrigeration, with fixed curved glass front, solid sides, (2) rear sliding glass doors, (3) tiered levels of adjustable chrome plated wire shelves (6 shelves total), LED interior lighting, stainless steel exterior, stainless steel interior, R290 Hydrocarbon refrigerant, 1/4 HP, 115v/60/1-ph, 10.0 amps, NEMA 5-15P, cULus, UL EPH Classified

Warranty Icon
6-year Parts; 5-year Labor; 7-year Compressor Parts
