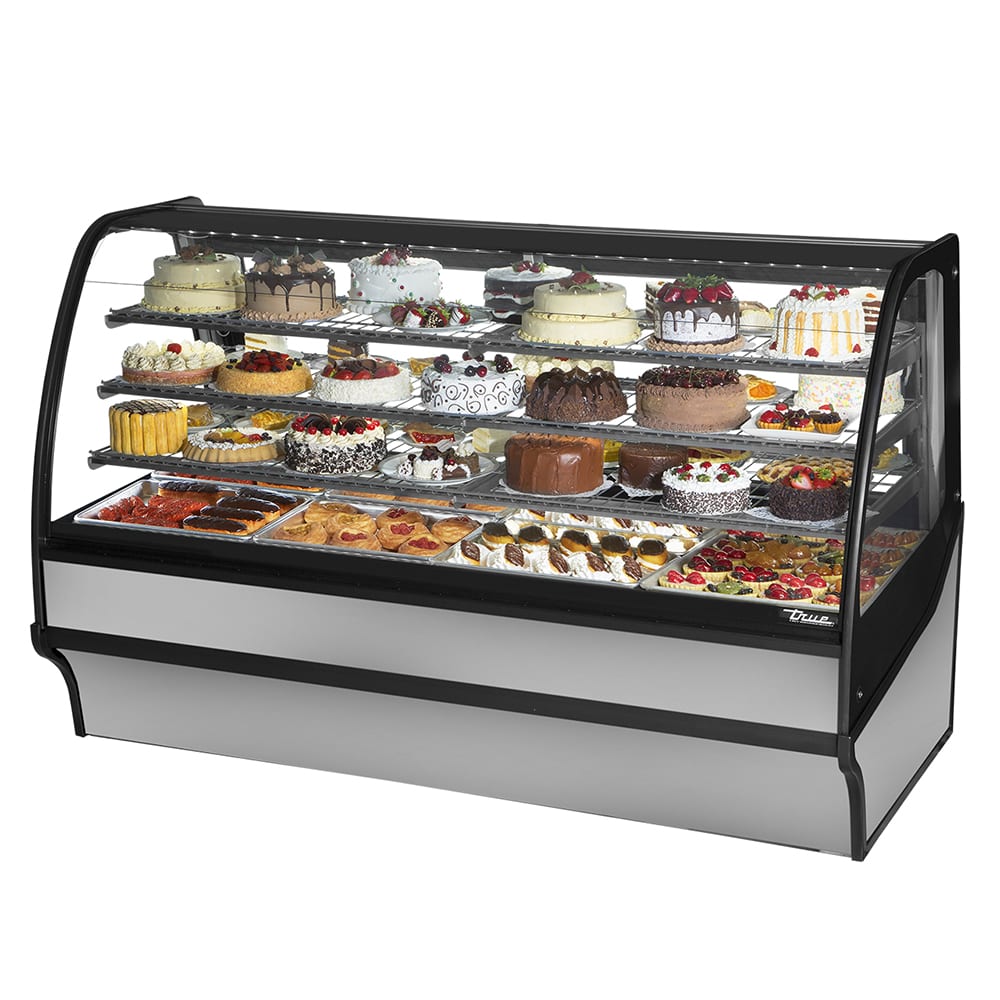

True TDM-R-77-GE/GE-S-S 77 1/4" Full Service Bakery Case w/ Curved Glass - (4) Levels, 115v

The True TDM-R-77-GE/GE-S-S full-service bakery case has a glass front and sides to display goods and increase impulse purchases. Enhancing product offerings, the interior is illuminated with LED lights. The curved front glass raises for product retrieval, and to load and unload the cabinet, it features two rear sliding glass doors. For environmental considerations, it features a self-contained refrigeration system that operates with natural R290 hydrocarbon refrigerant. The evaporator is epoxy coated to resist corrosion, while the condensing fan motor operates in reverse upon compressor start up to clean the condensing coil. To facilitate maintenance, the condensing unit slides out.

For heavy-duty use, the True TDM-R-77-GE/GE-S-S bakery case is made of resilient stainless steel. The exterior has a sleek, scratch-resistant black powder coating, while the powder-coated white interior increases attention to items placed in it. The three shelves are made of wire to enable uniform airflow, and they can be adjusted to accommodate versatile needs. Insulated with high-density polyurethane, the cabinet maintains a temperature range of 33 to 41 degrees Fahrenheit. Enabling operator adjustments, it features electronic temperature controls.

Product Details

• Self-contained refrigeration system
• Eco-friendly R290 hydrocarbon refrigerant
• Epoxy-coated evaporator resists corrosion
• Condensing unit slides out for cleaning
• Reverse condensing fan motor ensures clean condensing coil
• Lift-up curved glass front
• Glass sides
• 2 rear sliding glass doors
• 3 levels of adjustable chrome-plated wire shelves
• LED interior lighting
• Durable stainless steel construction
• Powder coated black front and back
• White-powder coated interior
• Temperature holding range: 33-41 degrees F
• Electronic temperature controls
• High-density polyurethane insulation

Dimensions & Utilities

• 77¹⁄₄ in. W x 39 in. D x 49¹⁄₈ in. H
• 12 A, ¹⁄₂ HP
• 115 V/60 Hz/1 ph, 8-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration TDM-R-77-GE/GE-S-S within the 48 contiguous states.

From The Manufacturer

Display Merchandiser, refrigerated, 77-1/4"W, self-contained refrigeration, curved glass front, glass sides, (2) rear sliding glass doors, (3) tiered levels of adjustable chrome plated wire shelves, LED interior lighting, stainless steel exterior, stainless steel interior, R290 Hydrocarbon refrigerant, 1/2 HP, 115v/60/1-ph, 12.0 amps, NEMA 5-15P, CE, cULus, UL EPH Classified

*Image may not depict product color, inclusions or accessories.

True Refrigeration TDM-R-77-GE/GE-S-S Specifications

Spec Attribute	Spec Value
Manufacturer	True Refrigeration
Access	Full Service
Color	Silver
Depth (in)	39
Design	Curved
Door Type	Sliding
Height (in)	49.13
Hertz	60
Number of Levels	4
Phase	1
Product	Bakery Display Cases
Product Type	Commercial Refrigeration
Rating	Better
Refrigerant	R290 (Hydrocarbon)
Refrigeration Type	Refrigerated
Series	TDMR Series
Shelving Type	Wire
Warranty	6-year Parts; 5-year Labor; 7-year Compressor Parts
Width (in)	77.25
Weight	850.00
