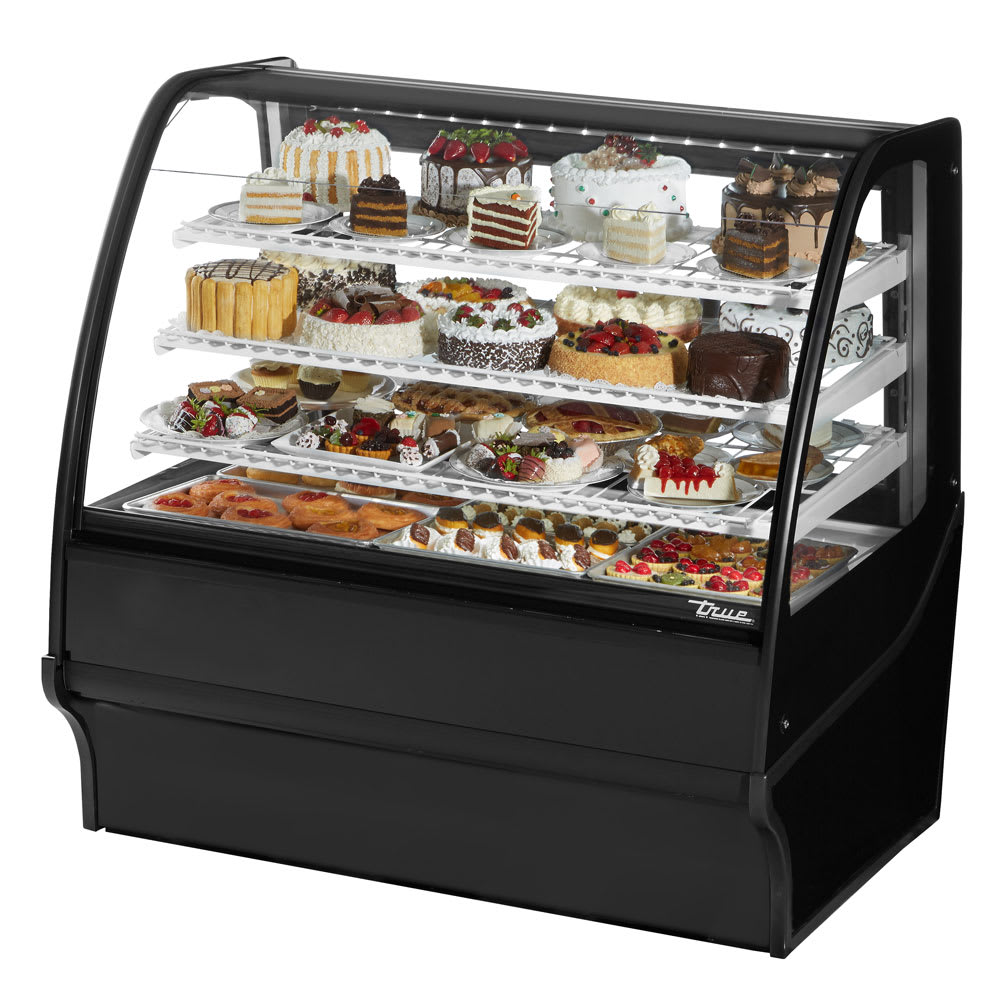

True TDM-R-48-GE/GE-B-W 48 1/4" Full Service Bakery Case w/ Curved Glass - (4) Levels, 115v

Various baked goods and cold deli products can be held on three adjustable, PVC-coated wire shelves and the floor of this True TDM-R-48-GE/GE-B-W full-service bakery case. Each shelf can hold 150 pounds of product, while the cabinet can hold four 18-inch by 26-inch, two 9-inch by 26-inch, and six 12-inch by 18-inch display pans. LED lighting illuminates the interior to enhance product visibility through the curved glass front and end panels. Its exterior is coated in black powder, and the front and side panels are constructed of black aluminum to match. To resist corrosion, its interior is constructed of white powder-coated, cold-rolled steel.

The curved glass front on the True TDM-R-48-GE/GE-B-W bakery case swings up, and the two rear doors slide open and close to provide product access. Using a capillary tube system and environmentally friendly R290 hydrocarbon refrigerant, the refrigeration system has a set temperature range from 33 to 41 degrees Fahrenheit. Its slide-out condensing unit is accessible for cleaning and maintenance, and the condenser fan motors reverse to prevent dirt and debris from gathering on the condenser coil.

Product Details

• (3) 150-lb.-capacity shelves
• Wire shelves can be adjusted to accommodate various items
• LED interior lighting brightens the case to enhance product presentation
• Curved glass front and sides enable product visibility from different angles
• Front glass swings up for cabinet access and to facilitate cleaning
• Powder-coated interior and exterior resist corrosion
• Exterior side and front panels constructed of black aluminum
• 2 rear, sliding glass doors with 12-in. handles
• Insulation is foamed in place for cabinet structure
• Leg levelers stabilize the unit on uneven floors

Product Features

Refrigeration System

• Temperature holding range: 33-41 degrees F
• Self-contained capillary tube system meters R290 hydrocarbon refrigerant
• Condenser fan motors reverse during the defrost cycle to remove dust, dirt, and debris
• Slide-out condensing unit is accessible for maintenance

Dimensions & Utilities

• 48¹⁄₄ in. W x 39 in. D x 49¹⁄₈ in. H
• 12 A, ¹⁄₂ HP
• 115 V/60 Hz/1 ph, 8-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration TDM-R-48-GE/GE-B-W within the 48 contiguous states.

From The Manufacturer

Display Merchandiser, refrigerated, 48-1/4"W, self-contained refrigeration, curved glass front, glass sides, (2) rear sliding glass doors, (3) tiered levels of adjustable white PVC coated wire shelves, LED interior lighting, black powder coated exterior, white powder coated interior, R290 Hydrocarbon refrigerant, 1/2 HP, 115v/60/1-ph, 12.0 amps, NEMA 5-15P, CE, cULus, UL EPH Classified

*Image may not depict product color, inclusions or accessories.

True Refrigeration TDM-R-48-GE/GE-B-W Specifications

Spec Attribute	Spec Value
Manufacturer	True Refrigeration
Access	Full Service
Color	Black
Depth (in)	39
Design	Curved
Door Type	Sliding
Height (in)	49.13
Hertz	60
Number of Levels	4
Phase	1
Product	Bakery Display Cases
Product Type	Commercial Refrigeration
Rating	Better
Refrigerant	R290 (Hydrocarbon)
Refrigeration Type	Refrigerated
Series	TDMR Series
Shelving Type	Wire
Warranty	6-year Parts; 5-year Labor; 7-year Compressor Parts
Width (in)	48.25
Weight	645.00
