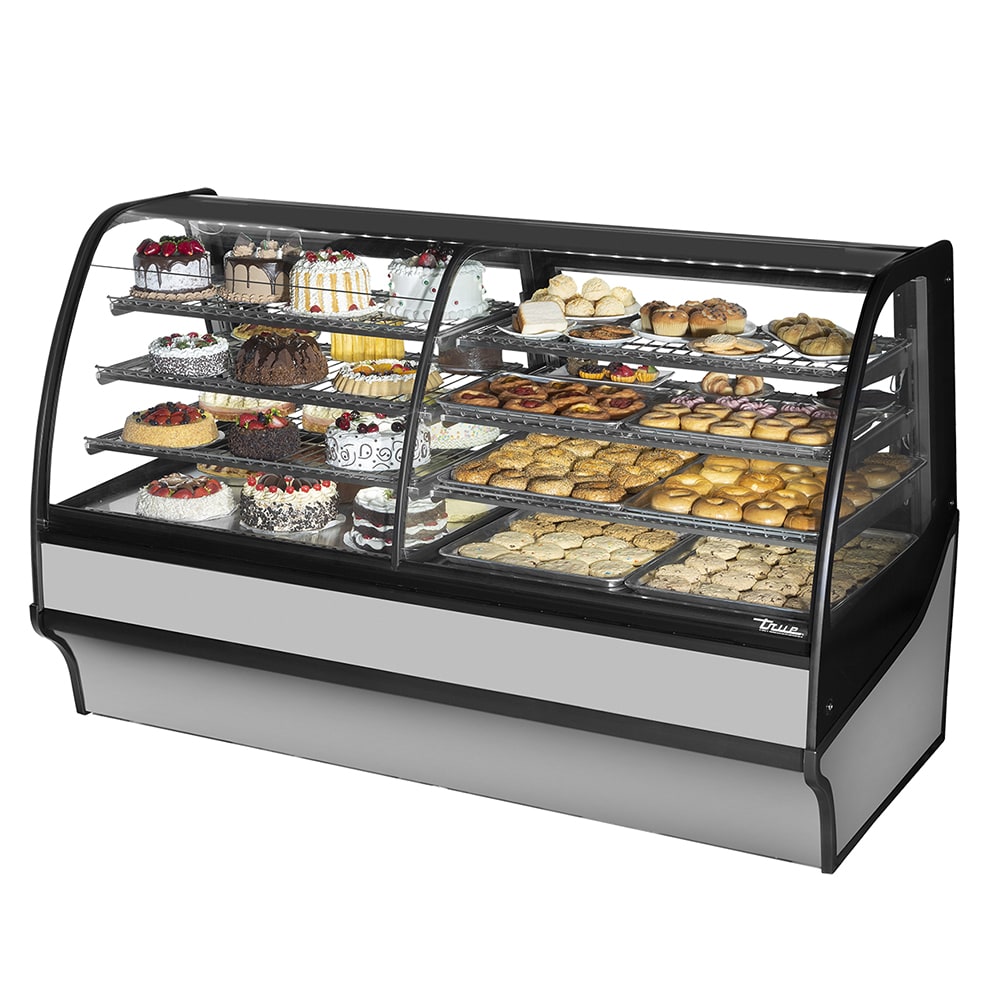

True TDM-DZ-77-GE/GE-S-S 77 1/4" Full Service Dual Zone Bakery Case w/ Curved Glass - (4) Levels, 115v

The True TDM-DZ-77-GE/GE-S-S dual-zone bakery case is made of stainless steel to withstand daily use. Polyurethane insulation is foamed in place in the cabinet to add structure, and the heavy-duty frame rail prevents warping. For increased visibility, the front glass panels are curved, and LED lights shine in the display while glass surrounds the baked goods on all sides, so customers can see product at an angle. Inside the cabinet, six chrome-plated shelves support product and can be raised or lowered as needed to accommodate product height. In the back, sliding doors give staff members access for serving goods, and the front glass lifts up for rearranging merchandise or cleaning the interior.

The two sections of the True TDM-DZ-77-GE/GE-S-S dual-zone display case offer space for dry and refrigerated goods, with the dry section holding items at room temperature and the refrigerated section keeping items from 33 to 41 degrees Fahrenheit. It uses a capillary tubes system and eco-friendly R290 hydrocarbon refrigerant to uphold these cool temperatures. For proper operation, the fan automatically reverses to keep debris off the condensing coils. For cleaning or servicing, the condenser slides out for access.

Product Details

• Stainless steel construction resists dents, scrapes, and corrosion
• Dense polyurethane insulates cabinet and adds structure
• Steel frame rail helps prevent bends and warps
• Access product through sliding doors in the rear
• 12-in. handles ease opening
• Elegant, curved front
• Front glass raises for cleaning
• Glass ends show product through the sides
• 6 adjustable, chrome-plated shelves
• Each shelf has a 150-lb. capacity
• LED lighting keeps lower products visible
• Can hold (8) 18-in. W x 26-in. D pans and (12) 12-in. W x 18-in. D pans (sold separately)
• Leg levelers can compensate for uneven floors

Refrigeration System

• Temperature holding range: 33-41 degrees F
• Electronic temperature control
• R290 hydrocarbon refrigerant runs through capillary tubes
• Corrosion-resistant evaporator is coated in epoxy
• Fan reverses to ensure condensing coils stay free of debris
• Self-contained to ease maintenance
• Accessible condenser slides out for cleanup or repair

Dimensions & Utilities

• 77¹⁄₄ in. W x 39 in. D x 49¹⁄₁₆ in. H
• 10 A, ¹⁄₄ HP
• 115 V/60 Hz/1 ph, 8-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration TDM-DZ-77-GE/GE-S-S within the 48 contiguous states.

From The Manufacturer

Display Merchandiser, dual zone (dry/refrigerated), 77-1/4"W, self-contained refrigeration, curved glass front, glass sides, (2) rear sliding glass doors, (3) tiered levels of adjustable chrome plated wire shelves (6 shelves total), LED interior lighting, stainless steel exterior, stainless steel interior, R290 Hydrocarbon refrigerant, 1/4 HP, 115v/60/1-ph, 10.0 amps, NEMA 5-15P, CE, cULus, UL EPH Classified

*Image may not depict product color, inclusions or accessories.

True Refrigeration TDM-DZ-77-GE/GE-S-S Specifications

Spec Attribute	Spec Value
Manufacturer	True Refrigeration
Access	Full Service
Color	Silver
Depth (in)	39
Design	Curved
Door Type	Sliding
Height (in)	49.13
Hertz	60
Number of Levels	4
Phase	1
Product	Bakery Display Cases
Product Type	Commercial Refrigeration
Rating	Better
Refrigerant	R290 (Hydrocarbon)
Refrigeration Type	Refrigerated
Series	TDMDZ Series
Shelving Type	Wire
Warranty	6-year Parts; 5-year Labor; 7-year Compressor Parts
Width (in)	77.25
Weight	920.00
