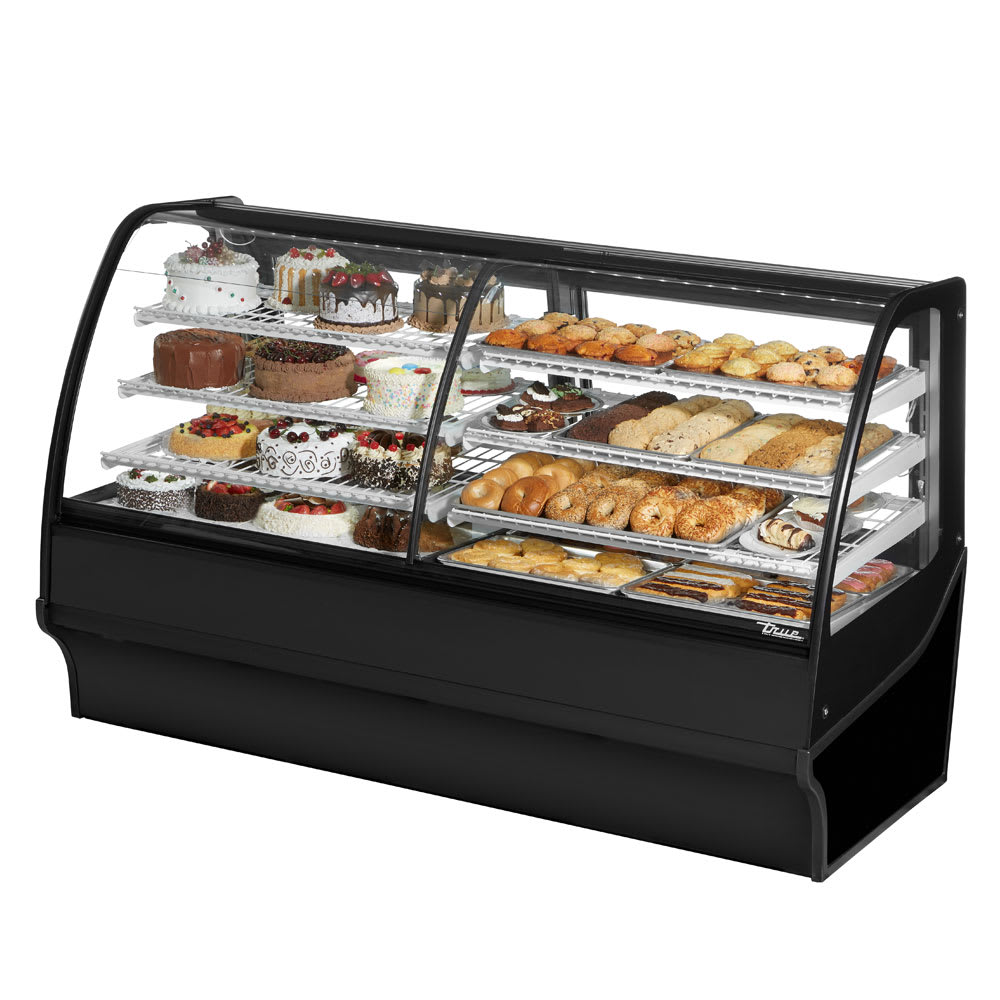

True TDM-DZ-77-GE/GE-B-W 77 1/4" Full Service Dual Zone Bakery Case w/ Curved Glass - (4) Levels, 115v

The True TDM-DZ-77-GE/GE-B-W dual-zone bakery case supports contents on six PVC-coated shelves, each of which is adjustable to accommodate various baked goods. LED lighting keeps products bright and visible. Glass on the sides and front shows contents to customers, and the curved front enables customers to look up closely without a horizontal bar blocking their sight. Resisting dings and corrosion, the interior is white-coated steel, while a horizontal frame rail and polyurethane insulation support the structure. Staff members can see through the rear glass doors and reach through them to get pastries for customers.

The True TDM-DZ-77-GE/GE-B-W dual-zone display case provides two areas for baked goods. One space holds contents at room temperature, while the other stays between 33 and 41 degrees Fahrenheit, maintained by a capillary tube refrigeration system. It uses environmentally friendly R290 hydrocarbon refrigerant and slides out for fast access.

Product Details

• Black aluminum exterior and white steel interior
• Powder coats the interior and exterior for corrosion protection
• Warp-resistant frame rail
• Dense polyurethane insulation throughout the cabinet
• Interior access is available through sliding rear doors
• Doors have 12-in. handles
• Curved front shows goods without obstructing them
• Glass front swings upward for cleaning
• Ends and front are made of glass to show product on 3 sides
• 6 adjustable, PVC-coated wire shelves
• Each shelf can hold 150 lbs.
• LED lighting illuminates the interior
• Can hold (8) 18-in. W x 26-in. D pans and (12) 12-in. W x 18-in. D pans (sold separately)
• Leg levelers accommodate uneven flooring

Refrigeration System

• Temperature holding range: 33-41 degrees F
• Controls for the temperature are electronic
• Uses eco-friendly R290 hydrocarbon refrigerant
• Self-contained capillary tubes control refrigerant flow
• Epoxy-coated evaporator is corrosion resistant
• Fan reverses to keep debris off condensing coils
• Accessible pull-out condenser

Dimensions & Utilities

• 77¹⁄₄ in. W x 39 in. D x 49¹⁄₁₆ in. H
• 10 A, ¹⁄₄ HP
• 115 V/60 Hz/1 ph, 8-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration TDM-DZ-77-GE/GE-B-W within the 48 contiguous states.

From The Manufacturer

Display Merchandiser, dual zone (dry/refrigerated), 77-1/4"W, self-contained refrigeration, curved glass front, glass sides, (2) rear sliding glass doors, (3) tiered levels of adjustable white PVC coated wire shelves (6 shelves total), LED interior lighting, black powder coated exterior, white powder coated interior, R290 Hydrocarbon refrigerant, 1/4 HP, 115v/60/1-ph, 10.0 amps, NEMA 5-15P, CE, cULus, UL EPH Classified

*Image may not depict product color, inclusions or accessories.

True Refrigeration TDM-DZ-77-GE/GE-B-W Specifications

Spec Attribute	Spec Value
Manufacturer	True Refrigeration
Access	Full Service
Color	Black
Depth (in)	39
Design	Curved
Door Type	Sliding
Height (in)	49.13
Hertz	60
Number of Levels	4
Phase	1
Product	Bakery Display Cases
Product Type	Commercial Refrigeration
Rating	Better
Refrigerant	R290 (Hydrocarbon)
Refrigeration Type	Refrigerated
Series	TDMDZ Series
Shelving Type	Wire
Warranty	6-year Parts; 5-year Labor; 7-year Compressor Parts
Width (in)	77.25
Weight	795.00
