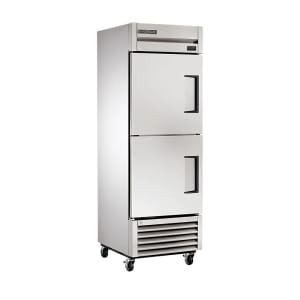

True T-23-2-HC 27" One Section Reach In Refrigerator, (2) Left Hinge Solid Doors, 115v

The True T-23-2-HC single-section refrigerator has two left-hinge, solid half doors, increasing energy efficiency since opening one door does not let as much cold air escape as a full door. A 12-inch recessed handle is foamed in place on each door, while magnetic gaskets around the door frames prevent cold air leaks. Stainless steel and strong aluminum make up the exterior, while the interior has a clear-coat aluminum liner to resist corrosion, and the stainless steel floor has coved corners to simplify cleanup.

With a bottom-mount refrigeration system, the True T-23-2-HC reach-in refrigerator has accessible components for maintenance. Temperatures range from 33 to 38 degrees Fahrenheit and are regulated by R290 hydrocarbon refrigerant through a capillary tube system, while a consistent volume of air is evenly circulated throughout the cabinet with the condenser and evaporator fan motors. To help improve the condensing coil's lifespan and operation, the condensing fan motor dirt and dust buildup is blown away with the reverse condensing fan motor, which blows for 20 seconds upon start up. This mechanism helps eliminate buildup of dirt, dust, and debris, enabling it to work more efficiently. Users should continue to integrate preventative maintenance practices in tandem with this technology.

Product Details

• 2 solid half doors are hinged on the left to open on the right
• Stainless steel door exteriors
• 12-in. recessed door handles are foamed in place and attached with a sheet metal interlock to stay permanently attached
• Doors are mounted on a torsion closure system to close automatically
• Magnetic door gaskets are removable without tools for cleaning
• Stainless steel exterior front and aluminum cabinet ends, back, and top
• Interior has a clear-coated, corrosion-resistant aluminum liner
• Coved corners in the stainless steel interior floor simplify cleanup
• Cabinet is insulated with foamed-in-place polyurethane
• Frame rail is welded and powder coated to extend equipment life
• 4-in. stem castors are mounted to the frame rail for mobility
• 2 castors lock to keep unit in place
• 3 PVC-coated shelves are adjustable in ¹⁄₂-in. increments
• Interior lighting is safety shielded to prevent breaking

Self-contained Refrigeration System

• Uses R290 hydrocarbon refrigerant
• Capillary tube system regulates refrigerant
• Evaporator and condenser fan motors consistently move air for even distribution
• Condensing coil buildup removed through reverse condensing fan motor mechanism
• Temperature range: 33-38 degrees F
• Bottom-mounted condensing unit for accessibility
• Exterior temperature display
• Epoxy-coated evaporator resists corrosion

Dimensions & Utilities

• Shelves: 22⁷⁄₈ in. W x 23¹⁄₄ in. D
• Overall: 27 in. W x 29¹⁄₂ in. D x 83³⁄₈ in. H
• 2.2 A, ¹⁄₄ HP
• 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration T-23-2-HC within the 48 contiguous states.

From The Manufacturer

Refrigerator, reach-in, one-section, (2) stainless steel half doors, (3) PVC coated adjustable wire shelves, interior lighting, stainless steel front, aluminum sides, clear coated aluminum interior with stainless steel floor, 4" castors, R290 Hydrocarbon refrigerant, 1/4 HP, 115v/60/1-ph, 2.2 amps, NEMA 5-15P, cULus, UL EPH Classified

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor

True Refrigeration T-23-2-HC Specifications
