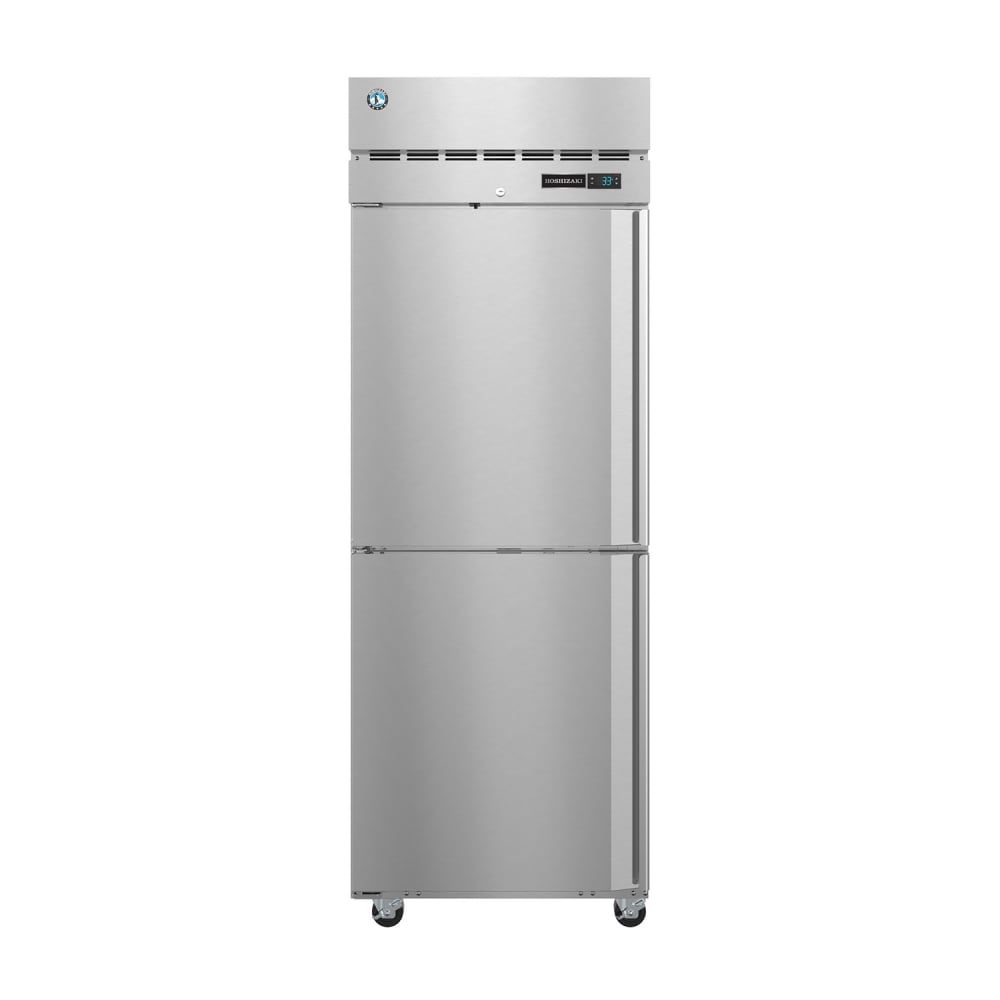

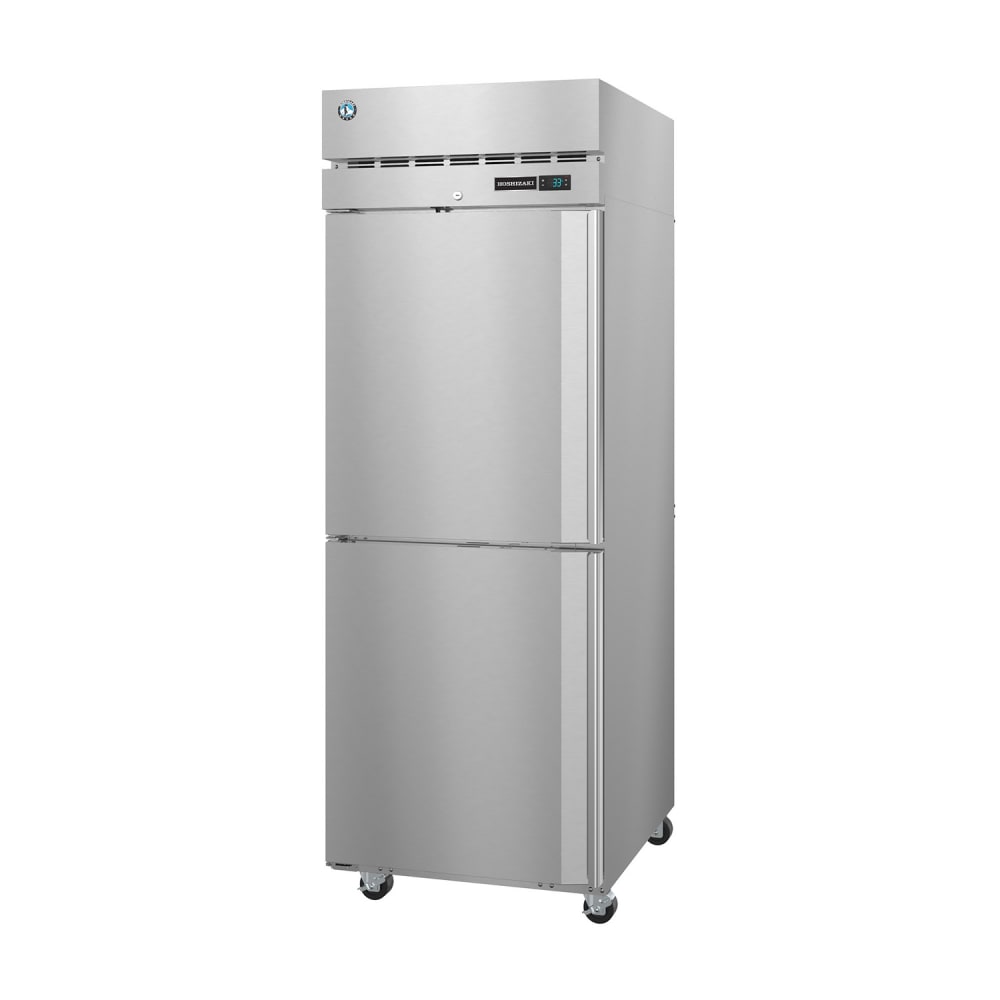

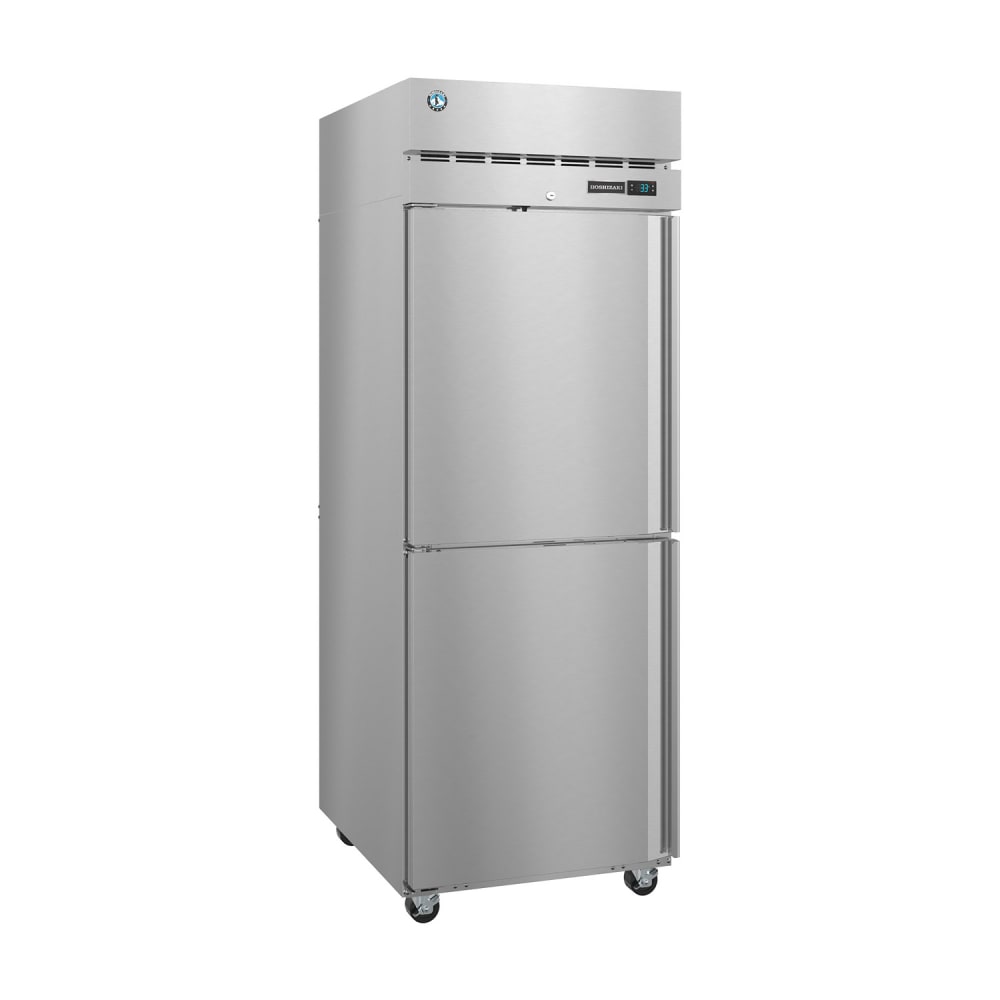

Hoshizaki R1A-HSL Steelheart 28" One Section Reach In Refrigerator, (2) Left Hinge Solid Doors, 115v
QUICK SHIP: Typically ships in 1 - 3 Business Days
$5,423.00 /Each
Contact us for details!
Hoshizaki R1A-HSL Description
The Hoshizaki R1A-HS(L) one-section, reach-in refrigerator has a small external footprint and a large internal storage capacity. Its two doors are self-closing and have a stay-open feature that locks at 90 degrees. The doors, sides, front, top, and interior are made of heavy-duty stainless steel that resists rust and scratches. A digital display discloses the temperature and can be adjusted to read in Fahrenheit or Celsius. It has high and low temperature and voltage alarms to ensure the unit runs properly.

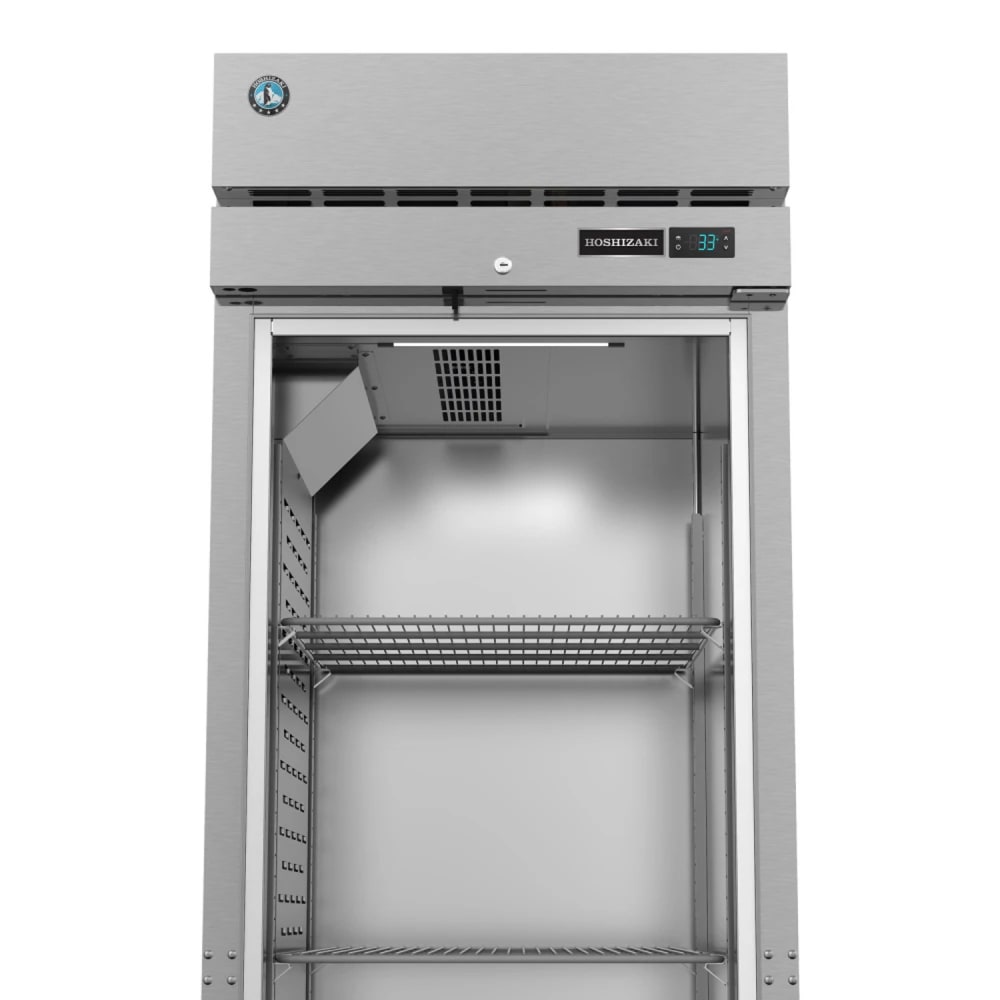

The refrigeration system is mounted on the top of the Hoshizaki R1A-HS(L) Steelheart refrigerator. Its evaporator's thermal expansion valve uses R290 hydrocarbon refrigerant to cool the unit. A ducted airflow system distributes cold air uniformly within the cabinet, eliminating hot spots.
- Part of the Steelheart series
- Interior capacity: 23.10 cu. ft.
- Stainless steel interior, front, sides, and top
- Product visibility is provided by an energy-efficient LED light
- Solid-state digital controller has an LED display that can be configured in Fahrenheit or Celsius
- Controls provide visual high and low temperature and voltage alarms
- Cabinet and doors have CFC-free polyurethane insulation
- Doors come standard with locks
- Stepped door design protects the recessed door gasket
- Self-closing doors are spring assisted with a stay-open feature
- Door hinging is field reversible
- Full-length, flush-mounted door handle is made of extruded aluminum
- Product is held and organized by three epoxy-coated wire shelves
- Mounted on 4-in. casters, 2 with brakes
- Requires R290 hydrocarbon refrigerant, which is environmentally friendly
- Evaporator uses a thermostatic expansion valve

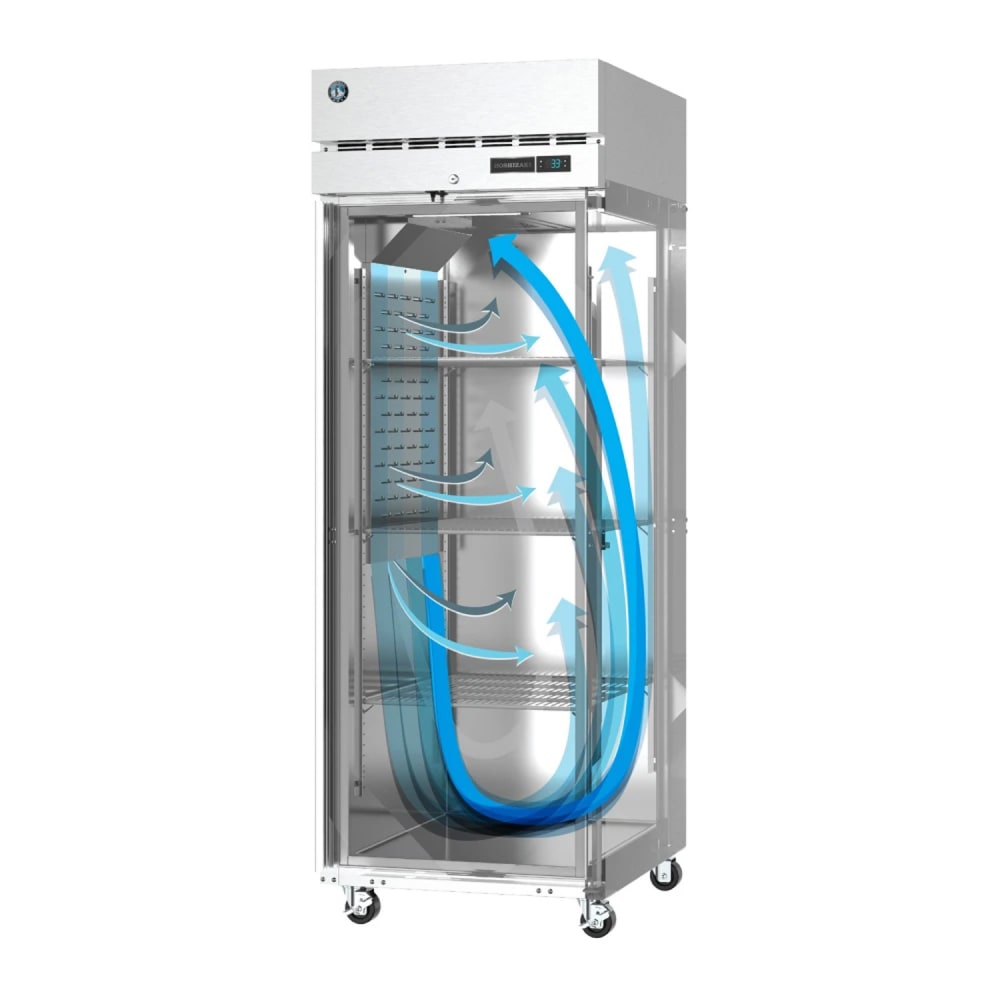

- Ducted airflow system eliminates hot spots by distributing cold air evenly within the system
- Temperature range: 31-52 degrees F
- Epoxy electrocoating on the evaporator coils provides corrosion resistance
- Automatic hot gas condensate evaporator is energy efficient
- Refrigeration is top mounted and comes with a condenser filter
- Shelf: 21.25 in. W x 26 in. D
- Overall: 27.50 in. W x 33.50 in. D x 79.50 in. H
- 5.0 A, 1.25 kW, 1⁄4 HP
- 115 V/60 Hz/1 ph, 10-ft. cord with a 5-15P NEMA plug
*Nominal cubic footage measurements sometimes provided by refrigeration manufacturers may not indicate actual usable space. If you require a specific capacity, please call one of our customer care representatives to ensure the unit you order meets your needs.
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hoshizaki R1A-HSL within the 48 contiguous states.
From The Manufacturer
Steelheart Series Refrigerator, reach-in, one-section, 23.1 cu. ft., top mounted self-contained refrigeration system, (3) epoxy coated wire shelves, (2) half-height solid left hinged doors, digital temperature display/controls, LED interior lighting, stainless steel exterior front & sides, stainless steel interior, (4) 4" heavy duty casters (2 with brakes), R290 Hydrocarbon refrigerant, 1/4 HP, NEMA 5-15P, cETLus, ETL-Sanitation, ENERGY STAR®
Watch a video about this product
Hoshizaki R1A-HSL Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hoshizaki |
| Additional Info | Contact Customer Service for Additional Information |
| Color | Silver |
| Compressor Location | Top |
| Cubic Feet | 23.1 |
| Depth (in) | 33.5 |
| Door Type | Solid |
| Doors | Half |
| Evaporator Type | Expansion Valve |
| Height (in) | 79.5 |
| Hertz | 60 |
| Hinge Configuration | Left |
| Interior Material | Stainless Steel |
| NEMA | 5-15P |
| No. of Doors | 2 |
| Number of Shelves | 3 |
| Phase | 1 |
| Product | Reach-In Refrigerators |
| Product Type | Commercial Refrigeration |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Sections | 1 |
| Series | Steelheart Series |
| Special Features | Casters Included - Uninstalled |
| Supports | Casters |
| Thermometer Type | Digital |
| Type | Reach In |
| Voltage | 115 |
| Warranty | 7-year Parts & Labor; 7-Year Compressor |
| Width (in) | 27.5 |
| Weight | 345.00 |
